Summary of Contents for Dimplex DCEVP40M

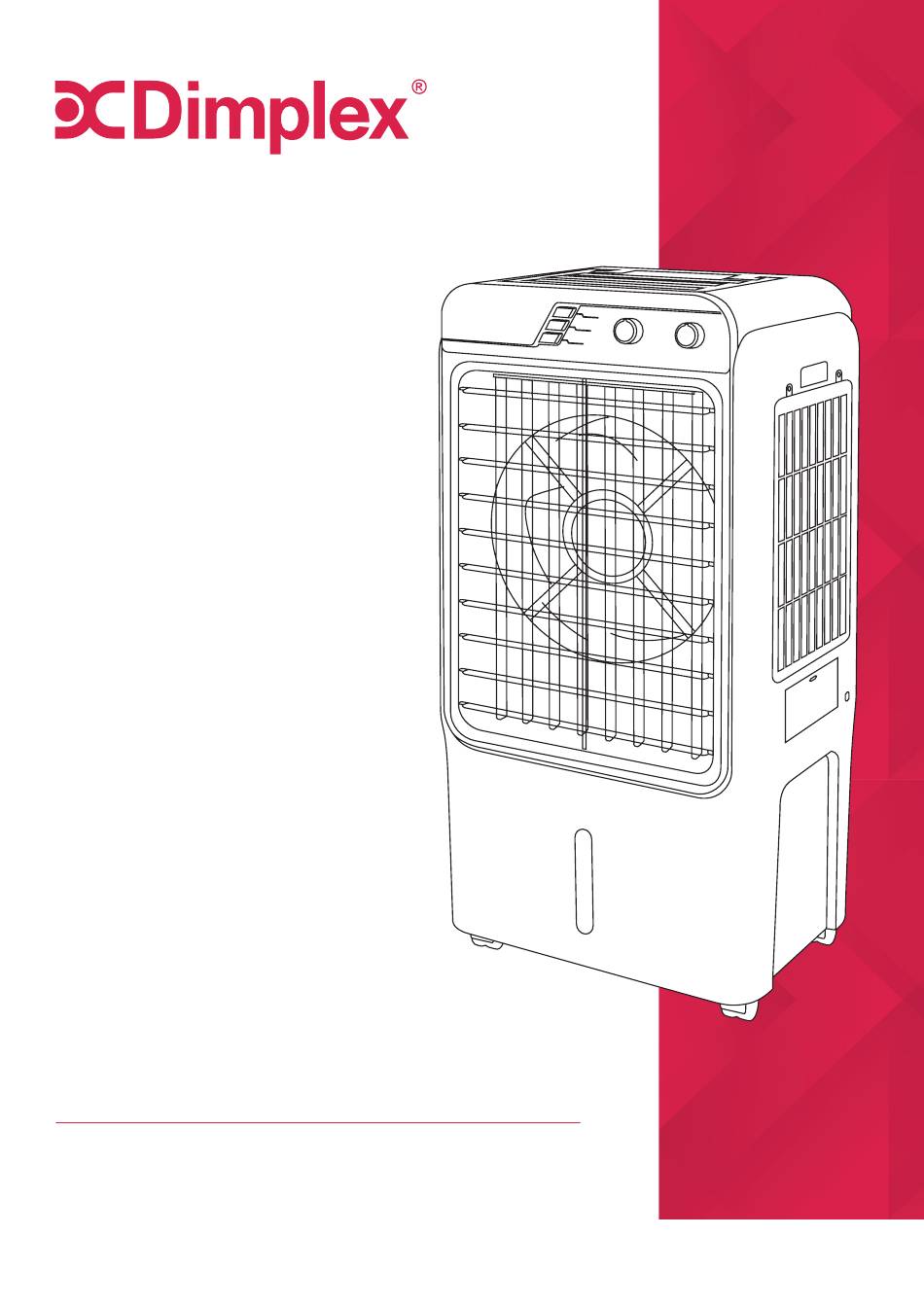

- Page 1 INSTRUCTION MANUAL 40L Evaporative Cooler Model: DCEVP40M For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your evaporative cooler for the first time and keep them in a safe place.
- Page 3 • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power cords cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specification
Specification Model no. DCEVP40M Colour White/Black Power supply 220-240V~, 50Hz Rated power 150W Speed settings Air speed (max) 8.2m/s Water tank capacity Remote control Timer 2 hours Swing function Controls Manual Noise level (max) ≤65.6dB Weight (net) 11kg Dimensions (w x d x h) 480 x 360 x 1000mm •... - Page 6 Parts Control Panel Wind Outlet Water Inlet Water Level Indicator Castors Rear wind outlet Water Tank Water outlet...
-
Page 7: Control Panel
Control Panel On/Off Cool Ioniser Timer Swing Fan speed Assembly ASSEMBLING CASTORS 1. Place the unit on a flat surface. 2. Take the supplied screws and fasten to the castors to the base of the unit. Note: There are two castors with a brake and two castors without. The castors with a brake are intended to be installed as rear castors. -
Page 8: Fan Speed
Functions ON/OFF Rotate the right knob to the ON position to turn the unit ON. FAN SPEED The FAN SPEED can be selected by rotating the left knob. In the following sequence: Off (0) > Low (1) > Medium (2) > High (3). SWING FUNCTION Press this button to turn on the SWING function, the louvres will move left to right and the SWING LED indicator light will illuminate. -
Page 9: Operation
Operation Filling the water tank Unplug the appliance before filling the water tank. In order to use the cooling function, you need to fill the water tank. For your convenience, the water tank can be filled from the side of the unit saving removing the water tank. Filling from the side Unplug the appliance before filling the water tank. - Page 10 Cleaning Outside Cabinet 1. Turn the unit OFF and disconnect the appliance from the power supply. 2. Remove any dust build up with a soft brush. 3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can be used for any stubborn marks.
-
Page 11: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,... - Page 12 Supplied by Glen Dimplex Australia 1340 Ferntree Gully Road, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
