Summary of Contents for Taurus Light LED Outdoor Washer 60

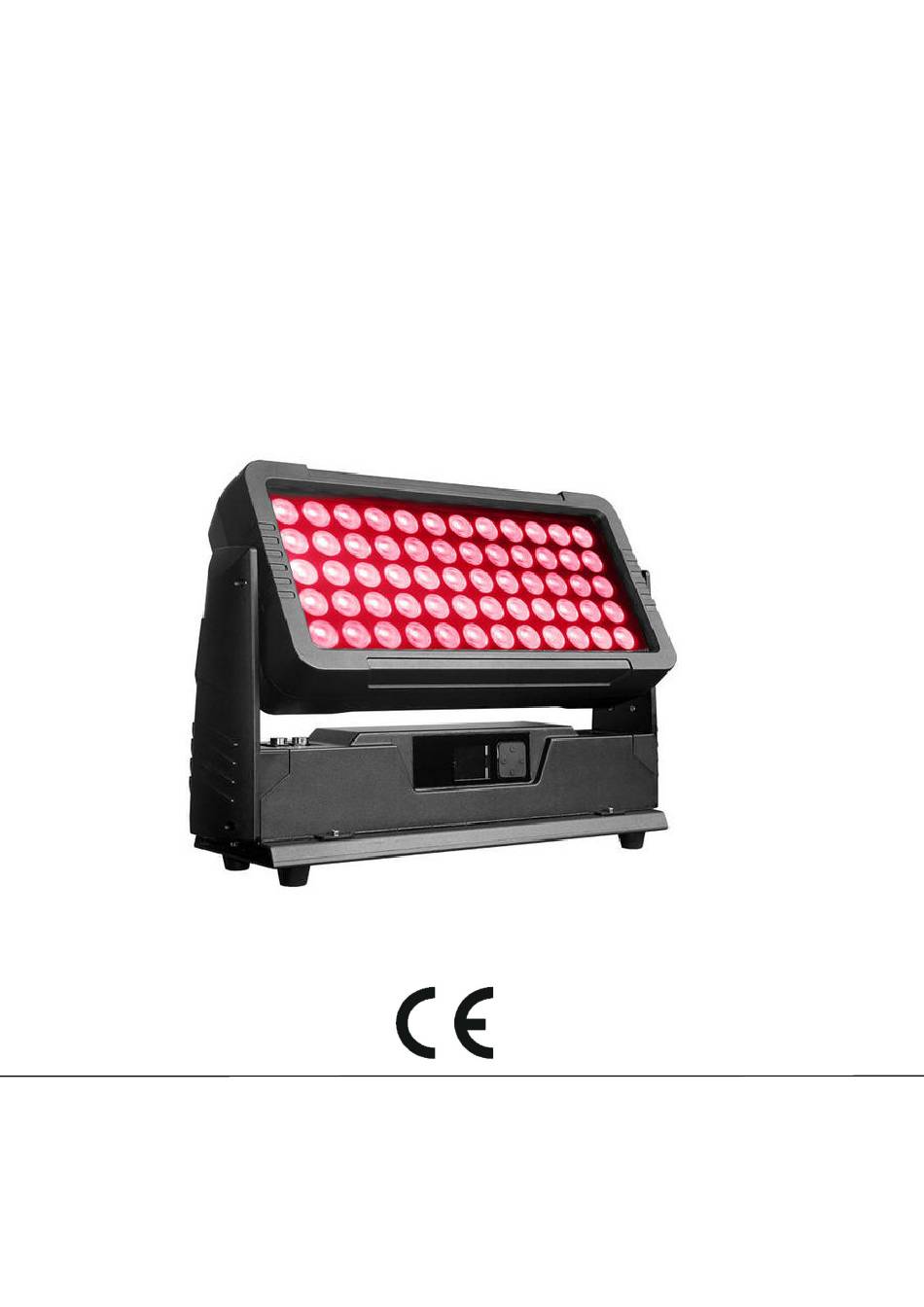

- Page 1 LED Outdoor Washer 60 User Manual Thanks for choosing our goods please read this manual carefully before your operating and keep this manual for future needs...
- Page 2 Thank you for purchasing LED Outdoor Washer 60, Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
- Page 3 is subject to change without notice. We reserves the right to modify and upgrade its range of products, with no obligation to integrate these changes into products already sold. Warning ● To prevent or reduce the risk of electrical shock or fire ,do not expose the unit to rain or moisture.
- Page 4 Specifications and Features: • LEDs: 60pcs 10W RGBW 4in1 LEDs • Power Consumption:600W • DMX Channels: 10 DMX Channels • RGBW Color Mixing • Lens: 35 degree • 4 DMX Channels Mode:4CH,5CH,9CH • Photometric Data:81500 LUX@1M,12400 LUX@3M,5020 LUX@5M • Strobe/ Pulse: 1-10 times/S •...
- Page 5 Product View (Front) (Back)
- Page 6 (Side) (Base)
-
Page 7: Control Panel
Control Panel The control panel is the mechanism for configuring the settings. It has a small LCD screen and four buttons, which are described below. Button Function Scrolls through the first level of options, or exits from the <MENU> current menu or function Navigates upward through the menu list or increases the <UP>... - Page 8 5. Blue 6. White 3. Macro 1. Run Mode: Stop Flash Fade Pulse 2. Speed: 0~255 4. System 1.Host Mode: Off 3. Language: English 中文 3.Backlight Setting: Auto Keep on 3.Curve: Curve 1 Curve 2 Curve 3 Curve 4 4. Blackout Time(ms)
- Page 9 5. Information 1. Device Tou(min) 2. About DMX Channel function and values: DMX Channel Channels Value Description 4 CH 5 CH 9 CH Dimmer 0-255 0-100% Intensity Strobe 4-255 Strobe from slow to fast 0-255 0-100% Intensity Green 0-255 0-100% Intensity Blue 0-255 0-100% Intensity...
- Page 10 0-100 None 101-150 Jump 151-200 Fader 200-255 Pulse Speed 0-255 Speed from slow to fast Trouble shooting Following are a few common problems that may occur during operation.Here are some suggestions for easy troubleshooting: 1. The unit does not work,no light and the fan does not work a.
- Page 11 circuit. 3. Some units don’t respond to the easy controller a. You may have a break in the DMX cabling.Check the LED for the response of the master/slave mode signal. b. Wrong DMX address in the unit .Set the proper address. 4.
- Page 12 Warranty The LED Outdoor Washer 60 is guaranteed against manufacturing defects for the duration of one (1) year from the date of purchase. This warranty does not cover the unit for evidence of physical shock or damage caused by abuse or any use not in accordance with the operating conditions set forth in the present user manual.
