ARMOUR TH680 Quick Start Manual

Dual mode ip/analog radio vhf / ptt (poc) communication
Hide thumbs Also See for TH680:

Advertisement

Table of Contents

Dual Mode IP/Analog Radio
VHF / PTT (POC)
Communication
TH680

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TH680 and is the answer not in the manual?

Questions and answers

Related Manuals for ARMOUR TH680

Summary of Contents for ARMOUR TH680

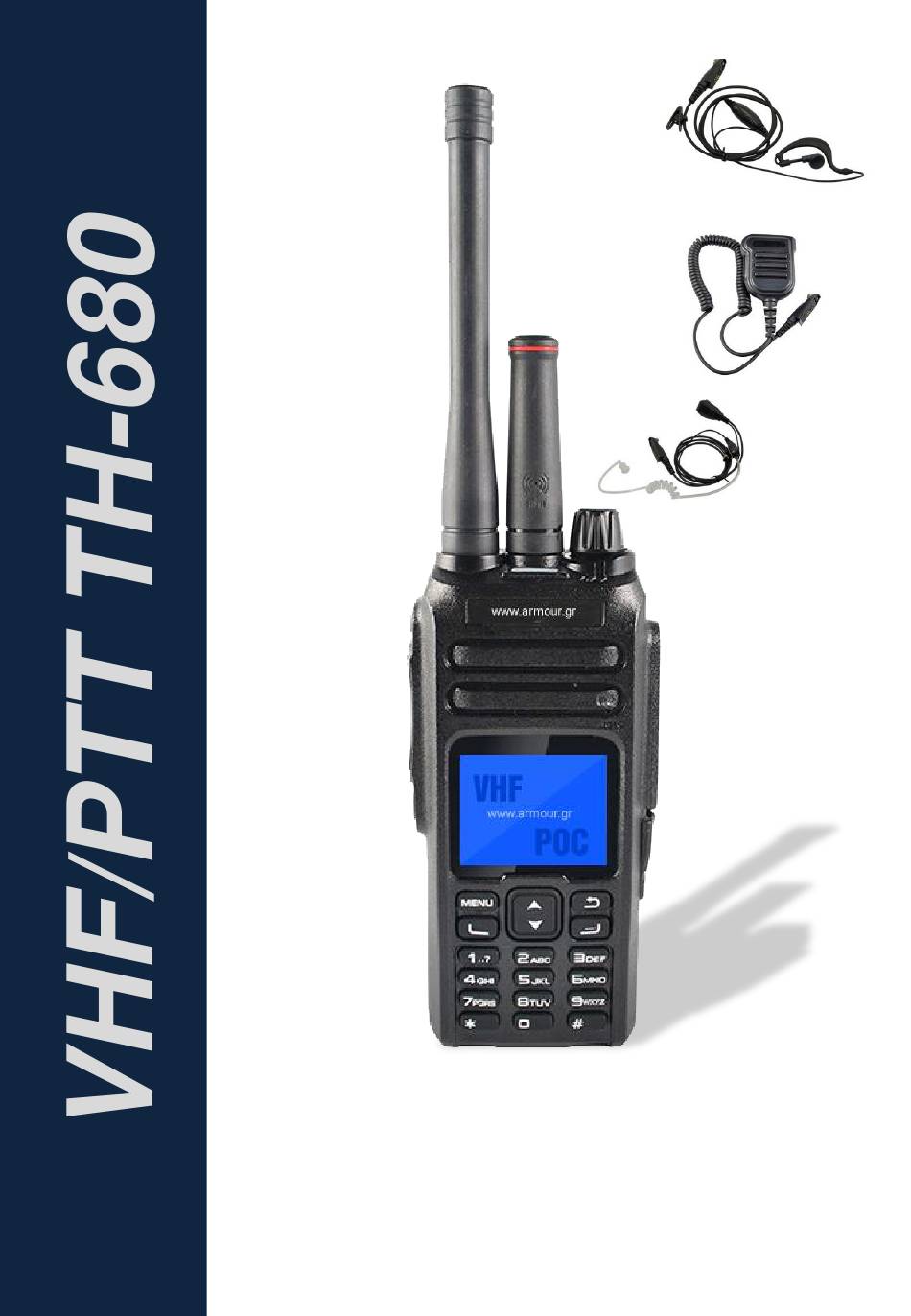

  • Page 1 Dual Mode IP/Analog Radio VHF / PTT (POC) Communication TH680...

  • Page 2: Specifications

    Narrow band Power Output Modulation 16K<l>F3E 11K<l>F3E Analog Parameter Spurious Emission -36dBm -36dBm Adjacent Channel Power 70dB 60dB RECEIVE 0.20 µV 0.20 µV RF Sensitivity (12db SINAD) Adiacent Channel Selectivity 60dB 55dB Intermodulation Rejection 65dB 60d8 Spurious Response 65dB 65dB www.armour.gr...

  • Page 3: Items In The Package

    TH680 Items in the Package VHF/PTT DEVICE Checking Equipment Carefully unpack the radio. We recommend that you identify the items listed in the following table before discarding the packing material. If any items are missing or have been damaged during shipment, file a claim with the carrier immediately.
  • Page 4 TH680 VHF/PTT DEVICE www.armour.gr...
  • Page 5 TH680 Antenna (Analog) Antenna (IP) VHF/PTT DEVICE Power Switch and Volume Control Indicator Lamp Light Red: Transmitting Light Blue: Receiving Speaker LCD Screen Menu Key Enter the submenu or confirm/save the selection UP Key / DOWN Key Back Key / Delete Key...
  • Page 6 TH680 Icon Definition Battery Power Battery Charging Signal Strength Red GPS: GPS enabled, no GPS positioning Green GPS: GPS enabled, GPS positioning acquired Repeater Phone Call Keypad Locked Dispatcher MSG Current Working Mode Power Save Mode Low-power High-power CTCSS Enabled Digital Coded Squelch Enabled Narrow Band (12.5KHz)

  • Page 7: Basic Operations

    TH680 Basic Operations VHF/PTT DEVICE Please check the following two items before using A. Please make sure the SIM card has been activated and has start the data service. B. Please make sure the radio has been programmed with the activated platform account and the correct APN information.
  • Page 8 TH680 Basic Operations VHF/PTT DEVICE Switch Working Modes In standby mode, short press PF1 Key (Side Third Key) to switch between IP & Analog modes. In standby mode, short press “#” Key to switch between Analog Frequency Mode and Analog Channel Mode.
  • Page 9 TH680 Menu Submenu Settings Function Instruction Under Frequency Mode, input desired Storage Channel channel number to store frequency in the corresponding channel number Delete Channel Enter to delete needless channel High Hight output power TX. Power Low output power RX. CDC 67.0～254.1 Receiving CTCSS setting...
  • Page 10 TH680 Menu Submenu Settings Function Instruction Dispatcher MSG Enter to check the dispatcher message Audio Records Enter to check the PTT records Contacts Add the phone call contacts list by programming. Enter contacts list to choose a phone number to make...

  • Page 11: Advanced Functions

    TH680 Advanced Functions Phone Call 1) Make phone call through your Contacts list or Records list. 2) In standby mode, short press Call Key( ) to enter dialing mode to make phone call. 3) Short press Menu Key or Call Key to answering /making phone call, short press Back Key or Exit Key ( ) to hanging up.
  • Page 12 TH680 Advanced Functions 8. Repeater Enter MENU-ADV Settings to choose repeater working mode. The repeater function help to realize the communication between IP and Analog radios. Auto: Can transform IP and Analog signal automatically IP To Analog: Transform IP signal to Analog Analog To IP: Transform Analog signal to IP 9.
