BRIGHTWIN ELECTRONICS
2-wire 4-20mA Signal Generator Loop Simulator
General technical parameters
Output current
Max. output range
Operating power supply voltage
Sampling resistor
Display precision
Output precision
LCD display mode
Physical size (front)
Install panel /Panel cut-out size
Wiring mode
Operating temperature range
Storage temperature range
Humidity
Note:
1. Please note that there is no need to distinguish the positive side or the negative side of this two-wire signal generator
when you wiring. The sign on the diagram is just for you to understand more easily.
2. If more information required, please visit

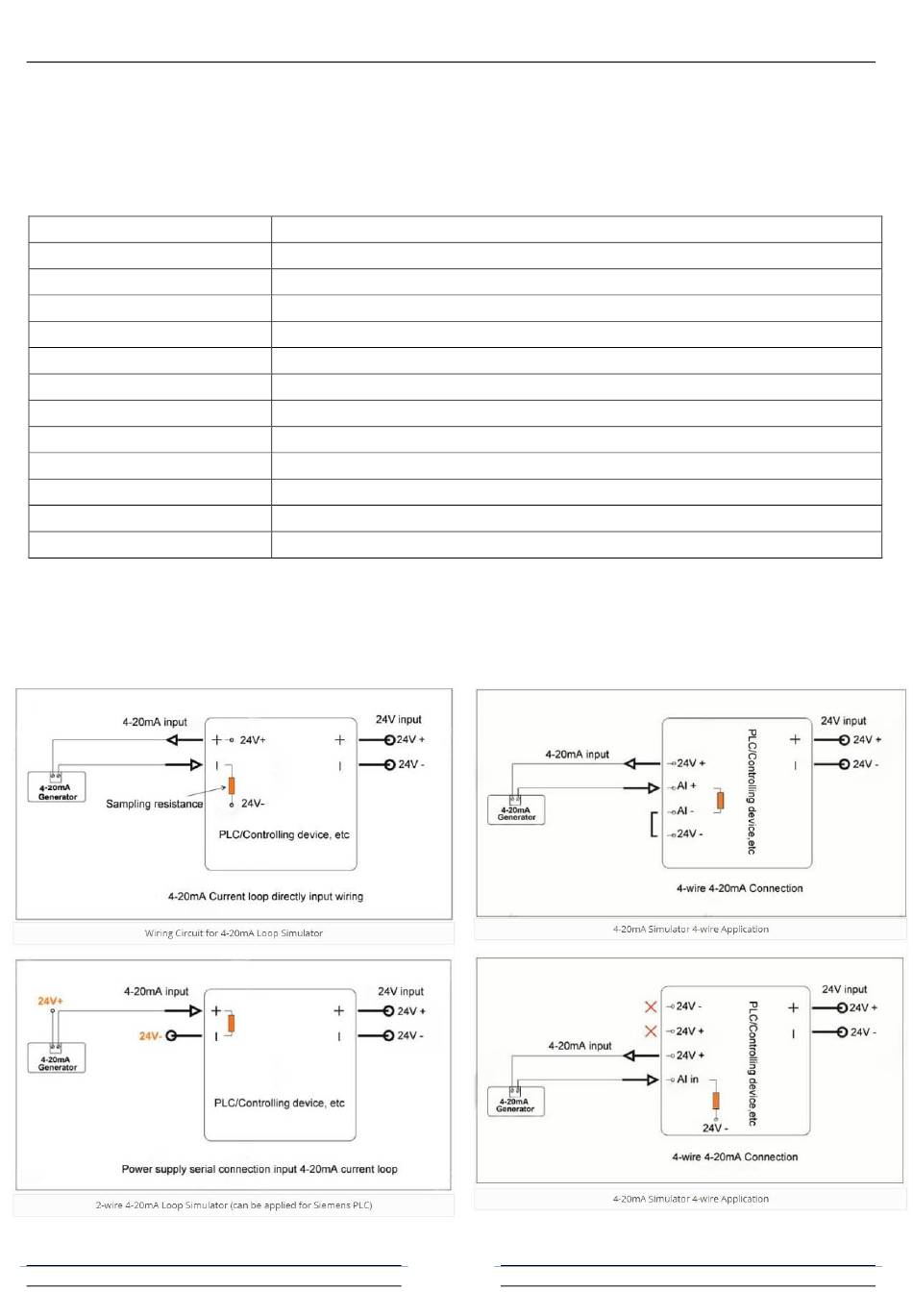

Referential Applications:
www.brightwinelectronics.com
4-20MA SIGNAL GENERATOR
BRT 420LGPM
4mA---20mA
3mA---21mA, settable through knob
15V---30V
10Ω---500Ω
0.05mA
±0.5%
4-20mA current value, 0-100% percentage, 0-50Hz, programmable and settable
79.5X42mm (±1mm error)
77X40mm (±1mm error)
Two wire pluggable wiring terminal block
-10 to +55℃
-20 to +60 ℃
85% R.H. non-condensation
https://www.brightwinelectronics.com
1
to get details.
info@brightwinelectronics.com
BRT 420LGPM
Advertisement
Related Manuals for Brightwin Electronics BRT 420LGPM
Summary of Contents for Brightwin Electronics BRT 420LGPM
- Page 1 BRIGHTWIN ELECTRONICS 4-20MA SIGNAL GENERATOR BRT 420LGPM 2-wire 4-20mA Signal Generator Loop Simulator BRT 420LGPM General technical parameters Output current 4mA---20mA Max. output range 3mA---21mA, settable through knob Operating power supply voltage 15V---30V Sampling resistor 10Ω---500Ω Display precision 0.05mA ±0.5%...
- Page 2 BRIGHTWIN ELECTRONICS 4-20MA SIGNAL GENERATOR BRT 420LGPM System Setting Steps Knob rotation function ● C lockwise rotation once: + or increase value ● Anti-clockwise rotation once: - or subtract value ●Press down the knob: Confirmation 1. Rough Adjustment/Fine Adjustment Switching: Long pressing the knob for 2 seconds, the meter enters into parameters setting status and displays "...
- Page 3 BRIGHTWIN ELECTRONICS 4-20MA SIGNAL GENERATOR BRT 420LGPM Code Function Value available Default F001 Output mode 0: Coarse tuning mode. (*"F004" set how many turns to rotate.) 1: Fine tuning mode. ( *"F005" set how many turns to rotate.) 2: Quick output (For fast validation of some value and quickly test ) 3: Automatic curve output (For products aging test.)
- Page 4 BRIGHTWIN ELECTRONICS 4-20MA SIGNAL GENERATOR BRT 420LGPM Code Function Value available Default Number of curves F200 0: No curve output 1..9: amount of curve segment Segment # 1 Curve running time Ft01 0-999 sec. * Must be "F200" >0 Segment # 1 Curve Start current value FA01 3.00-21.00mA...
