Instruction Sheet
Kit Number: 89101000
COMPACT-PRO ROPS KIT
WARNING: FAILURE TO FOLLOW
INSTRUCTIONS could result in personal injury
and / or damage to unit.
Read, understand, and follow all safety practices
in Operator's Manual before beginning.
IMPORTANT: All references to the left, right, front or rear
are given from the perspective of the operator in the
operator's position, facing the direction of forward travel.
IMPORTANT: Save these instructions for future
reference.

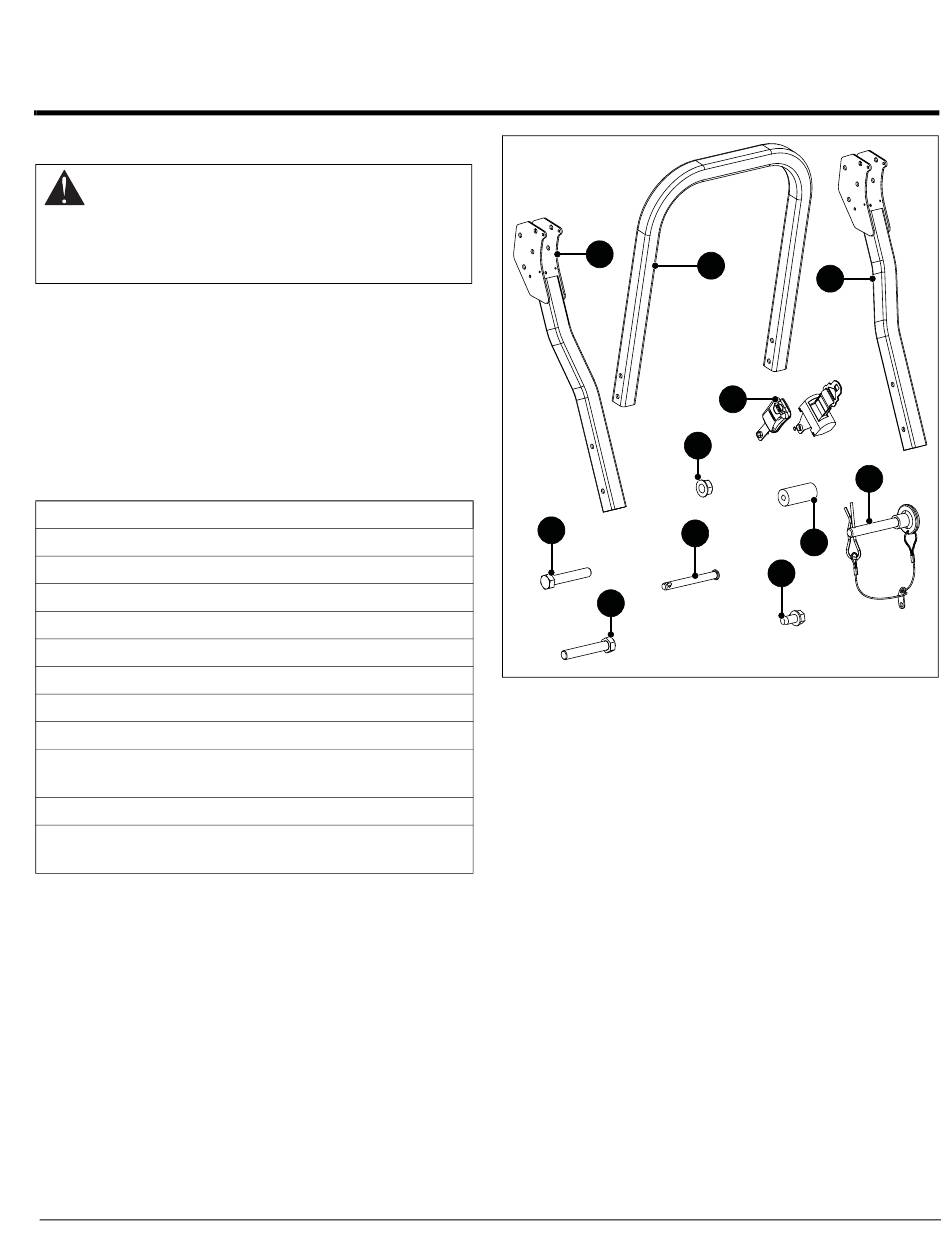

Package Contents
Check the contents of your kit for the parts listed below
Also see Figure 1.
Item
Description
1.
ROPS Hoop
2.
Seatbelt Kit
3.
Left Mounting Post
4.
Right Mounting Post
5.
ROPS Pin with Lanyard
6.
Anti-Vibration Bumper
7.
Locking Clevis Pin
8.
1/2"-13 x 2 3/4" Hex Bolt
9.
1/2"-13 Center Locking
Flange Nut
10.
1/2"-13 x 3" Hex Bolt
11.
1/4"-20 x 1/2" Tapping
Screw
Copyright 2018 • Ariens Company • Brillion, WI 54110
Qty
Ariens P/N
1
05021600
1
21556400
1
05151200
1
05151300
2
04898200
4
04884200
INSTALLATION
4
07001826
4
05901720
Install Seatbelt Kit
6
06500902
1.
2.
2
05901737
2
07400122
See Figure 2.
3.
IMPORTANT: Torque all seatbelt hardware to
40.7 N•m – 54.2 N•m (30 lb-ft – 40 lb-ft).
4
1
9
8
7
10
Figure 1
Stop engine, remove key and engage parking
brake.
Wait for all moving parts to stop and for hot parts to
cool and disconnect spark plug wires.
Install seatbelt kit (item 2).
• Secure seat belt strap to left side of seat with
hardware supplied in seatbelt kit.
• Secure seat belt receiver to right side of seat with
hardware supplied in seatbelt kit.
08400415 • 6/18 • Page 1 of 6
3
2
5
6
11
Advertisement
Summary of Contents for Ariens 89101000
- Page 1 • Secure seat belt receiver to right side of seat with hardware supplied in seatbelt kit. IMPORTANT: Torque all seatbelt hardware to 40.7 N•m – 54.2 N•m (30 lb-ft – 40 lb-ft). Copyright 2018 • Ariens Company • Brillion, WI 54110 08400415 • 6/18 • Page 1 of 6...
- Page 2 Install Mounting Posts Right Side of Seat Align right mounting post (item 4) with right mounting bracket in frame. See Figure 3. Left Side of Seat Figure 3 Secure mounting post to frame with two 1/2" x 2 3/4" hex bolts (item 8) and two 1/2" center locking flange nuts (item 9), but DO NOT tighten hardware.
- Page 3 Secure mounting post to frame with two Top Hardware 1/2" x 2 3/4" hex bolts (item 8) and two 1/2" center locking flange nuts (item 9), but DO NOT tighten hardware. See Figure 6. Top Hardware Bottom Hardware Set Bottom Hardware Set Figure 4 Align left mounting post (item 3) with left mounting...
- Page 4 Install ROPS Hoop See Figure 7. Position one anti-vibration bumper (item 6) between the top, forwardmost holes in hinge plates. Position one anti-vibration bumper between the lowest holes in hinge plates. Insert one locking clevis pin (item 7) through hinge plates and bumpers.
-
Page 5: Operating Positions
OPERATING POSITIONS Lower Hoop IMPORTANT: ALWAYS inspect ROPS and seatbelt for WARNING: AVOID INJURY. Lower the center damage and loose or missing hardware before use. hoop only when clearance is needed to drive ROPS has three positions: under an object. There is no rollover protection •... - Page 6 ROPS Kit and register online at www.gravely.com. See Figure 12 for label location. Model & Serial Location Figure 12 Model Number 89101000 Serial Number Record your serial number in the box below: 08400415 • 6/18 • Page 6 of 6...
