TRAFFIC Barrier - LIMA
INSTRUCTION MANUAL
Part of WSS Traffic Barriers. The flexible d-flexx traffic barrier provides an optimal protection for machines,
inventory and employees. Thanks to the easy and fast assembly in combination with individually cut lengths,
traffic routes can be separated quickly and easily from work areas or pedestrian paths. Bollards are a useful
addition at the end of the traffic barriers.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LIMA and is the answer not in the manual?

Questions and answers

Summary of Contents for WSS LIMA

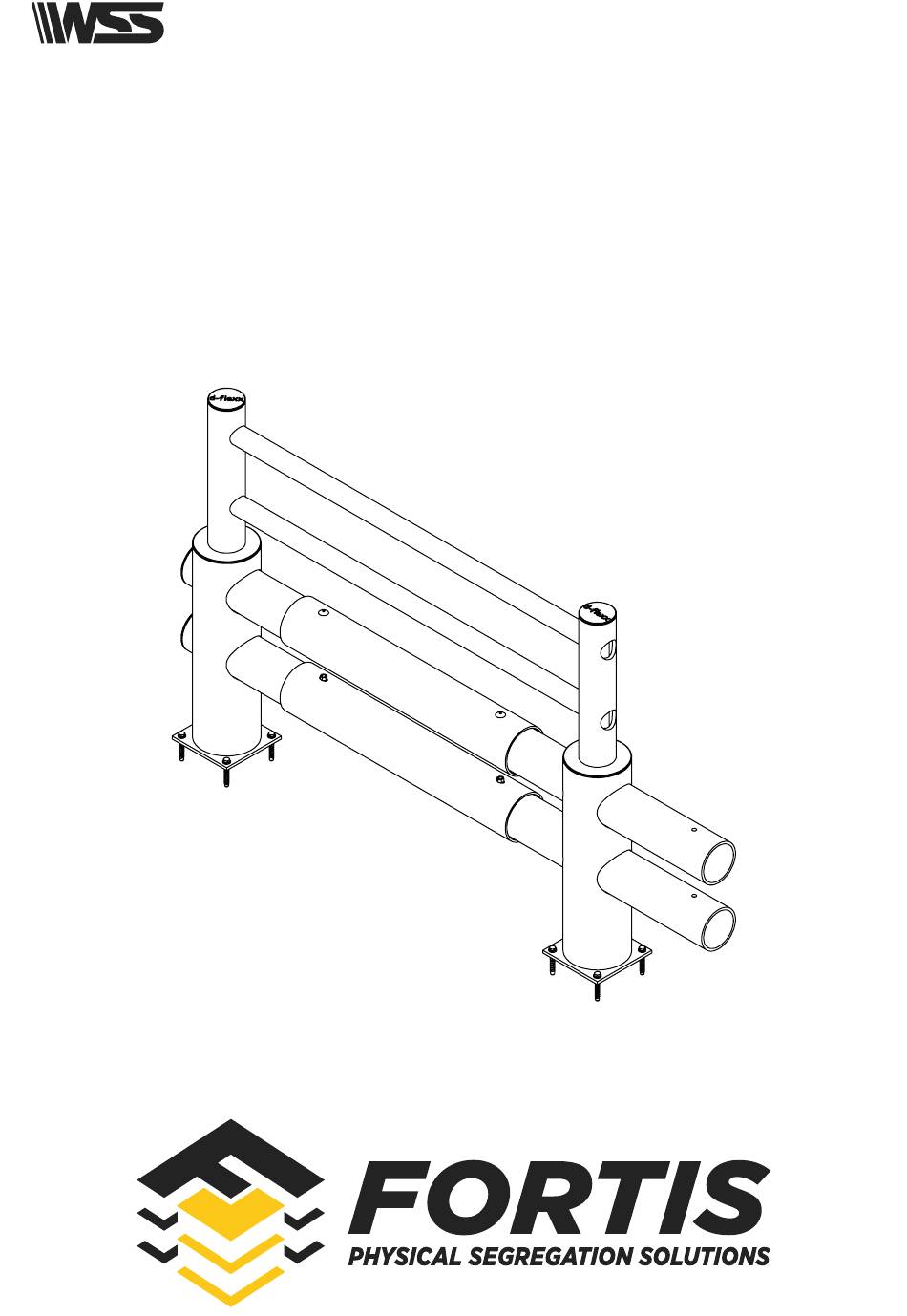

  • Page 1 TRAFFIC Barrier - LIMA INSTRUCTION MANUAL Part of WSS Traffic Barriers. The flexible d-flexx traffic barrier provides an optimal protection for machines, inventory and employees. Thanks to the easy and fast assembly in combination with individually cut lengths, traffic routes can be separated quickly and easily from work areas or pedestrian paths. Bollards are a useful...
  • Page 2 TRAFFIC Barrier - LIMA - ASSEMBLY TOOLS REQUIRED DFDH-M-E DFDH-M-M 76011 76011 72040 x 2 71040 x 2 901.04-2 x 2 71031 x 4 71032 x 4...
  • Page 3 PLACING BARRIER IN CORRECT POSITION 1. Place base in 2. Mark the 3. Move base 4. Drill holes: holes with chalk to the side Use Ø 12 mm drill bit correct position REMOVE ANY DUST USE SOCKET TO DRILL 15MM SCREWS SW18 APPLY SCREWS CONNECT BEAMS HOLES OVERLAYING EACHOTHER...
  • Page 4 INSERT LOCKING SCREW & CAPS INSERT 2 RAIL BEAMS INTO THE POST LOCK BEAMS IN PLACE INSERT THE POST BEAMS DETAIL A SCALE 1 : 5 INSERT POST CAPS & SECOND POST SCREWS...
