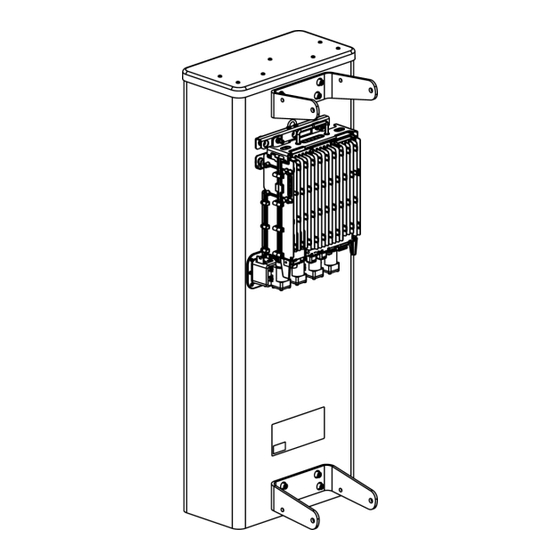

Nokia AHPC Radio Unit (RU) Assembly Installation Guide
The installation, maintenance, or removal of an antenna requires qualified, experienced personnel. The installer must refer to the appropriate local
safety codes and ensure proper electrical and electromagnetic compatibility before proceeding with the installation. All local codes shall take
precedence over information in this document. Antenna systems should be inspected once a year by qualified personnel to verify proper installation,
maintenance, and condition of equipment. Communication Components Antennas Inc. disclaims any liability or responsibility for the results of
improper or unsafe installation.
50-000233-02 Installation Guide
1
Advertisement
Related Manuals for Nokia AHPC RU
Summary of Contents for Nokia AHPC RU

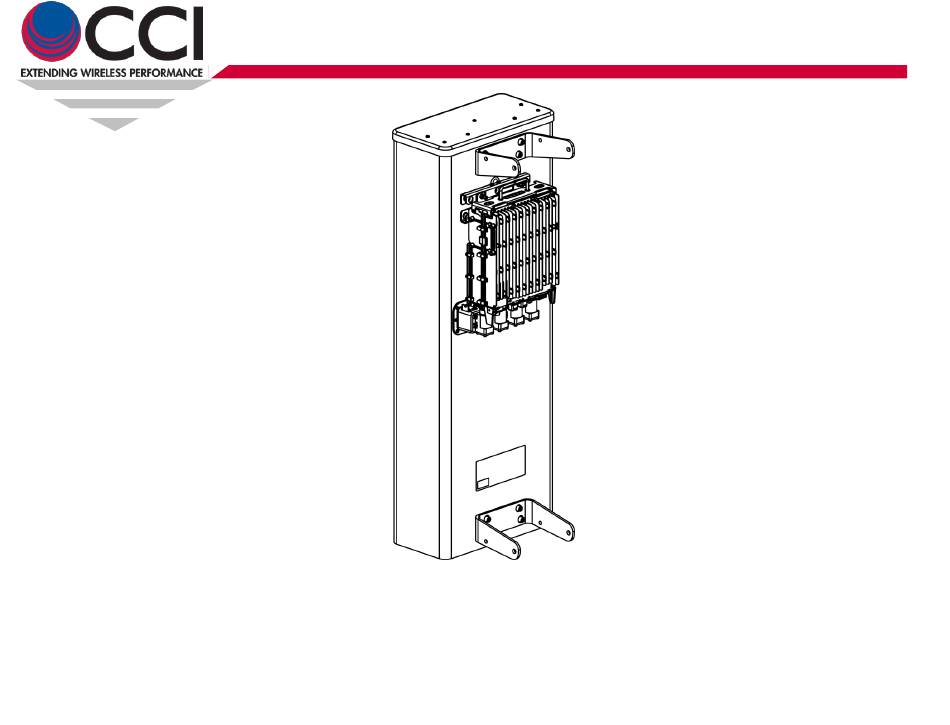

- Page 1 Nokia AHPC Radio Unit (RU) Assembly Installation Guide The installation, maintenance, or removal of an antenna requires qualified, experienced personnel. The installer must refer to the appropriate local safety codes and ensure proper electrical and electromagnetic compatibility before proceeding with the installation. All local codes shall take precedence over information in this document.
- Page 2 Nokia AHPC Radio Unit (RU) Assembly Installation Guide Note: Mounting kit and pole removed for clarity from all images in this document. Fig. 1: AHPC RU Preparation Step Task Lift and turn both locking pins to the unlocked position as shown in Fig 1.
- Page 3 Nokia AHPC Radio Unit (RU) Assembly Installation Guide Fig. 2: RU aligned to antenna rails Step Task Align RU with rails and supports. (Note: RU’s can be installed from left or right side of the antenna) 50-000233-02 Installation Guide...
- Page 4 Nokia AHPC Radio Unit (RU) Assembly Installation Guide Fig. 3: Installation of RU onto the Antenna Bracket Step Task Install RU onto the guide rails and supports and slide the RU into position over the blind mate connectors until it drops vertically, indicating that the RU is in correct position to be locked.
- Page 5 Nokia AHPC Radio Unit (RU) Assembly Installation Guide Fig. 4: Locking RU in Position Step Task Using tool (TL-04) as shown, push down gently unit both spring lock snap into the locked position as shown in Fig 4 detail. 50-000233-02 Installation Guide...
- Page 6 Nokia AHPC Radio Unit (RU) Assembly Installation Guide Fig. 5: RU Unlocking View Step Task Pull and turn locking pins as showing in Fig 5 detail and using tool (TL-04) as shown, lift RU away from connector bucket assembly. 50-000233-02 Installation Guide...
- Page 7 Nokia AHPC Radio Unit (RU) Assembly Installation Guide Fig. 6: RU Removal Step Task While lifting the RU towards the antenna top, slide RU either to the left or right for full removal, see Fig 6. 50-000233-02 Installation Guide...
