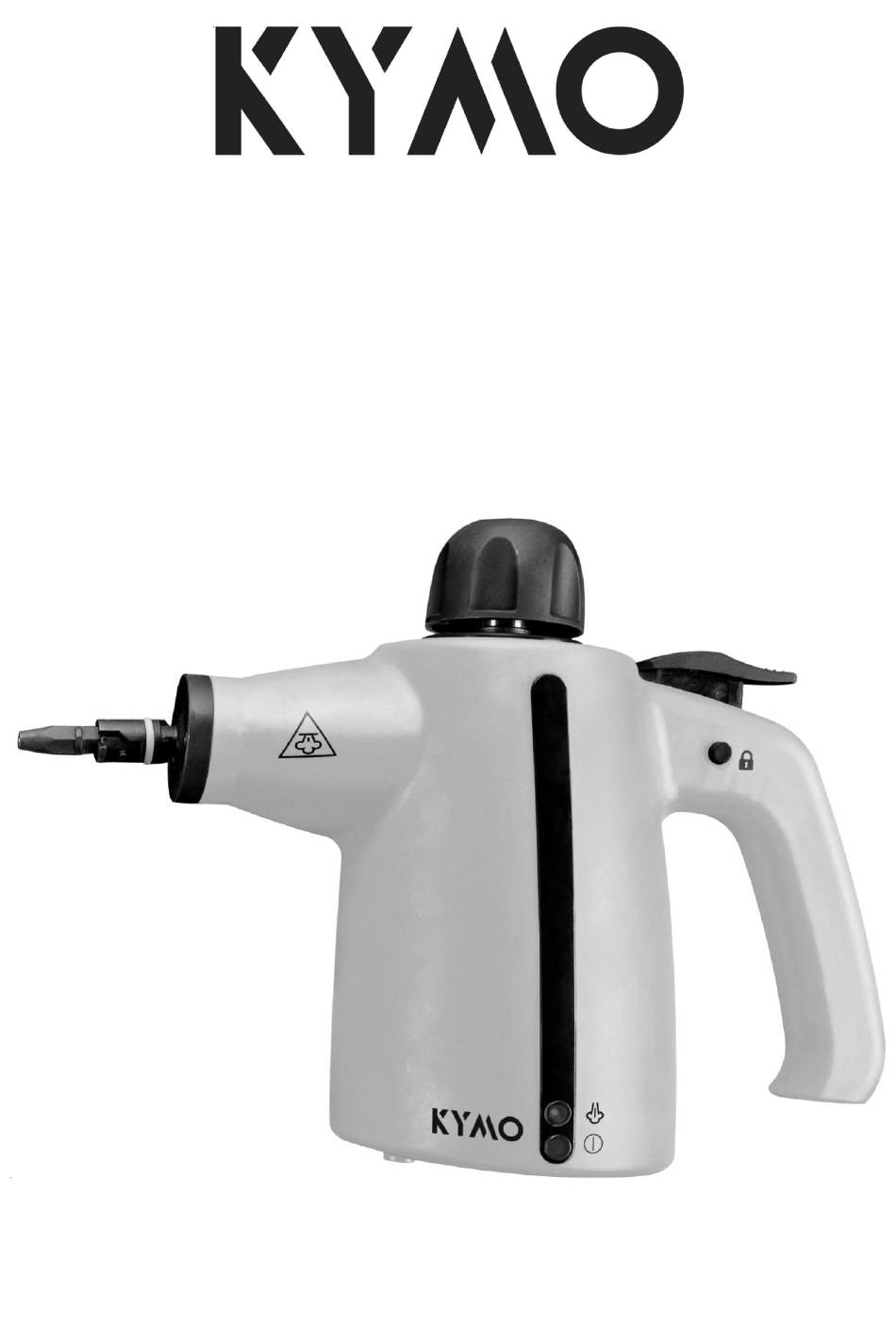

- Page 1 STEAM CLEANER User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION --------------------------------------4 2. SAFETY INSTRUCTIONS ------------------------------- 5 2.1. General Device Safety ------------------------------------- 5 2.2. Persons & Use -------------------------------------------- 7 2.3. Electronics ----------------------------------------------- 8 2.4. Power Cord -----------------------------------------------9 2.5. Heat & Cooling ------------------------------------------- 10 2.6. Water --------------------------------------------------- 10 3. - Page 3 9.1. General Information --------------------------------------- 19 9.2. Before Use ----------------------------------------------- 19 9.3. Using the Steam Cleaner ---------------------------------- 20 9.4. Refill Water During Operation -------------------------------21 9.5. After Using the Steam Cleaner ----------------------------- 22 10. INSTALLING THE ATTACHMENTS ---------------------- 23 10.1. The Spray Cup with Hairbrush ----------------------------- 23 10.2.
- Page 4 The images in the manual are for illustrative purposes only and may differ slightly from the product. In that case, KYMO is not obliged to adjust the manual. Use the actual product as a reference.
-
Page 5: Introduction
1. INTRODUCTION Thank you for choosing a KYMO product. Read the user manual carefully before use, to ensure proper and safe use of the product. Always follow the instructions to prevent damage or harm. Our product complies with the following statutory national and European... -
Page 6: Safety Instructions
These safety instructions are intended to give you the information you need to use the KYMO steam cleaner and avoid such hazards. Common sense and respect for the device will help reduce the risk of injury. - Page 7 The water fill-up opening must not be left open while the steam cleaner is being ● used. Do not open the safety cap with force. Make sure the steam cleaner is ● completely depressurized before opening. Do not place the steam cleaner under mechanical stress. ●...
-
Page 8: Persons & Use
- has been stored for extended periods in poor ambient conditions or - has been subjected to serious transport-related stresses. You can take the device out of operation by removing the power cord or by cutting off the mains plug of the power cord. 2.2. -
Page 9: Electronics
2.3. Electronics You may not reconstruct, self-repair, or disassemble the steam cleaner. This ● can damage the device. Maintenance, modifications, and repairs may only be carried out by the ● manufacturer, a professional workshop appointed by the manufacturer, or a similarly qualified person. -
Page 10: Power Cord
2.4. Power Cord Fully unwind the power cord before use. ● Do not modify the power cord. ● Check the power cord periodically for damage. Never use the power cord if ● there are any signs of damage. Do not touch the power cord if it is damaged. A damaged power cord can ●... -
Page 11: Heat & Cooling
2.5. Heat & Cooling The steam cleaner may become warm during operation and some parts will ● become very hot. This is normal. Do not touch any of the attachments while the steam cleaner is in use or ● immediately after use. There is a risk of scalding. ... -
Page 12: Intended Use
● 3. INTENDED USE The KYMO handheld steam cleaner is designed to clean and sanitize different surfaces with steam. It operates by heating water to a high temperature, turning it into pressurized steam. This steam is then directed onto the surface, efficiently loosening dirt, grime, and stains. -
Page 13: Unpacking
After unpacking the product, check if the delivery is complete and if all parts are in good condition. If you are missing a part, or if you have a damaged part, contact us by e-mail: Info@kymo-online.nl. Before use, remove all packaging materials and stickers or labels. -
Page 14: Technical Data
Product name steam cleaner Model ST-04 Brand KYMO Colour Blue Material - PP + PA - Aluminium alloy (boiler body) Supply voltage 220 ~ 240V - 50Hz Power 900 ~ 1050W... -
Page 15: Product Parts & Function
6. PRODUCT PARTS & FUNCTION 6.1. Parts ① Steam cleaner body ⑪ Bent spray nozzle ② Short Spray nozzle ⑫ Long spray nozzle ③ Safety cap ⑬ Extended connecting spray nozzle ④ Steam button ⑭ General spray nozzle ⑤ Handle ⑮... -
Page 16: Functions
6.2. Functions ② Short spray nozzle: It can be swung up, down, left, and right, and can be connected and installed with various accessories included. ③ Safety cap: When all steam has been discharged, you may unscrew the safety cap to add water (unplug first). -
Page 17: Product Features
7. PRODUCT FEATURES ■ Technically leading Technologically advanced with exclusive patented technology, this device uses high-temperature and high-pressure steam to effectively remove dirt and stains from floorboards, doors, windows, and clothes. It can also eliminate bacteria on surfaces and remove dust and bacteria, making it an environmentally friendly and sanitary product. - Page 18 ■ Energy-saving The integrated design of the specially-made heating tubes and boiler body ensures uniform heating, resulting in high efficiency and energy savings. The double-layer shell structure effectively prevents heat loss, making it both environmentally friendly and energy-efficient. ■ Easy to use ...
-
Page 19: Product Functions
8. PRODUCT FUNCTIONS ■ Disinfection and Sterilization Attach the long spray cup to the short spray nozzle, direct it to the area needing disinfection, and press the steam button. The high-temperature steam effectively kills bacteria. ■ Cleaning Clothes Attach the spray cup with the hairbrush to the short nozzle and then add the towel sleeve. -
Page 20: Product Use
9. PRODUCT USE 9.1. General Information The steam cleaner is designed to clean and sanitize various surfaces using steam. TIP: To disinfect a specific area, steam on the area for a minimum of eight seconds. The steam temperature will reach approximately 135°C. WARNINGS: - When steaming, take extra caution. -
Page 21: Using The Steam Cleaner
steam can be built up. - If water accidentally runs down the steam cleaner while the tank is being filled, the steam cleaner must not be connected to power until it is completely dry. - Do not add any substances to the water, including chemicals, cologne, or detergent. -
Page 22: Refill Water During Operation
pressing the steam button, push the black safety lock to the right. When letting go, the button does not rebound, which means that the locking is completed. At this time, the state of continuous ejecting steam can be maintained. Push the safety lock to the left to release the locked state of the button. -
Page 23: After Using The Steam Cleaner
9.5. After Using the Steam Cleaner 1. After the steam cleaner is used, unplug the power cord from the mains outlet. 2. Press down the steam button to release the pressure until no steam is injected. 3. Slowly unscrew the safety cap but do not remove it and residual steam will be discharged slowly until no steam comes out. -
Page 24: Installing The Attachments
10. INSTALLING THE ATTACHMENTS 10.1. The Spray Cup with Hairbrush Hold the pipe section of the spray cup with the hairbrush in your hand, align the arrow on the spray cup with the single-line mark on the short spray nozzle on the steam cleaner body, and insert the spray cup in position. -
Page 25: The Spray Cup For Doors/Windows
Figure 3 10.3. The Spray Cup for Doors/Windows First, install the spray cup with the hairbrush on the short spray nozzle. As shown in Figure 4 and Figure 5, install the two small hooks of the spray cup for doors/windows onto suspension lugs of the spray cup with the hairbrush, and then trigger the big hook of the spray cup for doors/windows, and push the spray cup for doors/windows up and clutch it onto the body of the spray cup general spray nozzle. -
Page 26: Cleaning
11. CLEANING 11.1. General Cleaning Guidelines Always unplug the device from the mains socket and let it cool down before ● cleaning. A slightly moist or dry cloth is recommended for cleaning the exterior of the ● steam cleaner. Dry with a soft cloth. Be careful not to put too much pressure on the button and safety lock while ●... -
Page 27: Maintenance & Service
For missing accessories such as the manual or other items, contact us at the ● above-mentioned e-mail address. In case of a defect, return the product to KYMO with a failure description, proof ● of purchase, and all accessories. - 26 -... -
Page 28: Storage & Transport
13. STORAGE & TRANSPORT We advise cleaning the steam cleaner before long-term storage. ● Allow the device to cool down completely before storing it. If you do not do this, ● there is a risk of fire. Store the steam cleaner in a place not exposed to sunlight & humidity, and ●... -
Page 29: Disposal & Recycling
14. DISPOSAL & RECYCLING This product is designed and manufactured with high-quality materials and components, which can be recycled and reused. 14.1. Device Disposal This product complies with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The crossed-out wheeled bin symbol indicates that, at the end of its life, the product must be disposed of separately from normal household waste and taken to a separate collection centre for the recycling of electrical and electronic equipment or returned to the seller at the time a new similar device is purchased. -
Page 30: Packing Material Disposal
15. WARRANTY & LIABILITY KYMO guarantees that for one year from the date of purchase, this product will be free from defects in materials and workmanship. This warranty applies to products used for personal purposes, and not for commercial or rental purposes. - Page 31 In such cases, the warranty becomes void. KYMO reserves the right to make changes at any time, without notice or obligation, in the user manual, colours, specifications, accessories, materials, and models.
- Page 32 Kymo Online V.O.F. Kvk No.: 89876539 VAT No.: 865139714B01 The Netherlands E-mail: Info@kymo-online.nl © 2024 KYMO Document version: 2024-08-06 - 31 -...
