North Row Tuck Addendum: EcoFoot5D
The north row of EcoFoot5D arrays can be installed with Bases tucked under the modules using either of the
methods described here. For complete racking system installation instructions, see EcoFoot5D Install Guide on
the EcoFoot5D support page at www.ecolibriumsolar.com.
Method A: EcoFoot2+ Bases and Wind Deflectors
EcoFoot2+ Bases can be tucked under the north edge of EcoFoot5D arrays as shown in the diagram.
Tilt angle of North row will be 2 degrees higher than rest of array.
Additional EcoFoot2+ Bases may be added to the center of the module frame if required for high snow
loads or to hold additional ballast blocks.

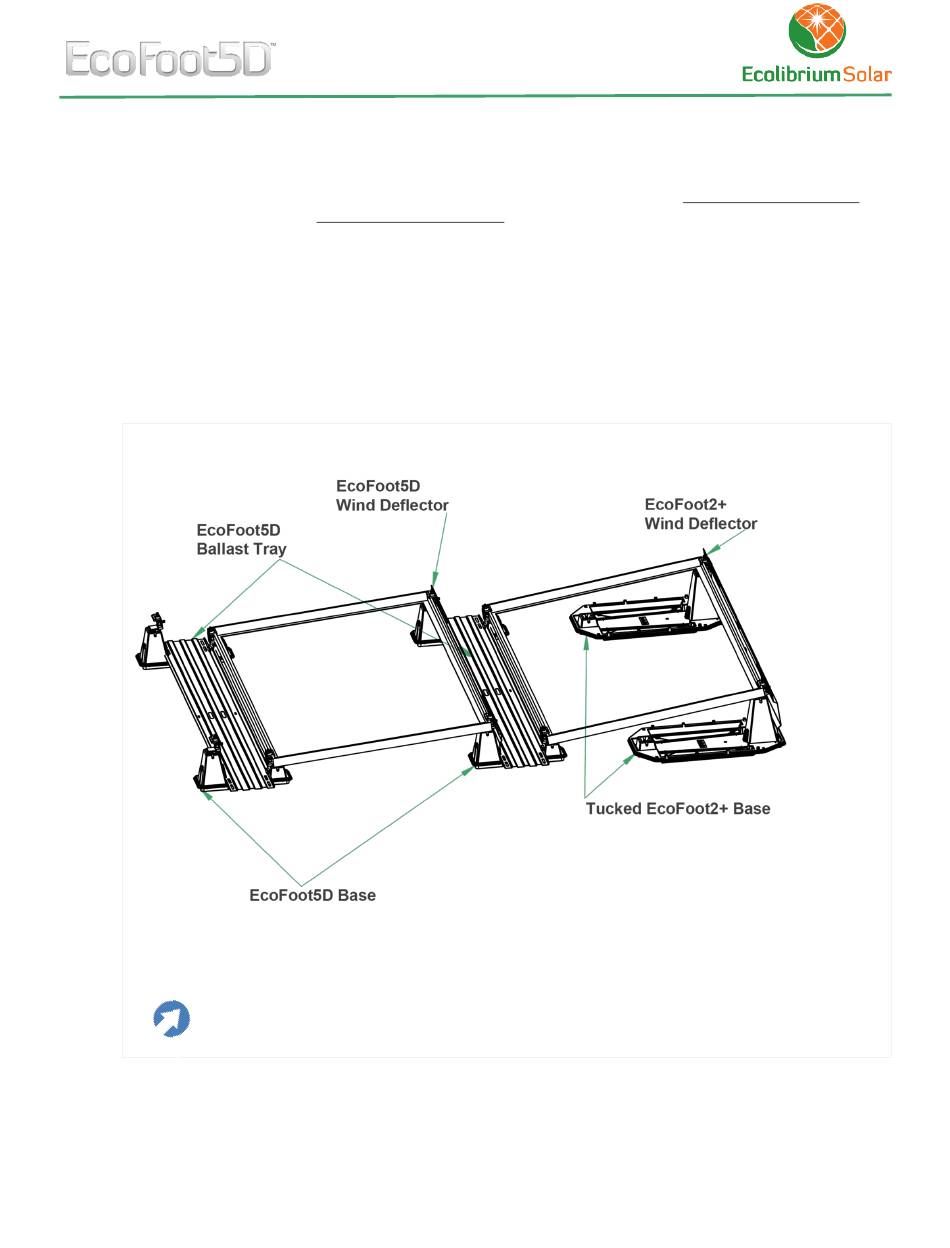

METHOD A: EcoFoot2+ Base Tucked on North Edge
North
Addendum-North Row Tuck-EcoFoot5D v1.0-FINAL
February 21, 2019
Page 1 of 2
ecolibriumsolar.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the EcoFoot5D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ecolibrium Solar EcoFoot5D

  • Page 1 North Row Tuck Addendum: EcoFoot5D The north row of EcoFoot5D arrays can be installed with Bases tucked under the modules using either of the methods described here. For complete racking system installation instructions, see EcoFoot5D Install Guide on the EcoFoot5D support page at www.ecolibriumsolar.com.
  • Page 2 Method B: EcoFoot5D Bases Attached EcoFoot5D Bases can be tucked under the north edge of the north row and connected to anchored Strut. Strut runs East/West. See diagram below. • Do not use Mid Supports and Ballast Trays on north row of tucked EcoFoot5D Bases.
