Plastica SLIDELOCK MAX Assembly Instructions

Small Slidelock Max
CODE NO.
6M to 7M (19'6" - 23')
Max cover width 6.7M (22')
A 3M (9' 10") Outer tube (x2) RLTS001
A 3M (9' 10") Inner Tube (x1) RLTS003
Straps Kit (Pack of 10) PRD20040BK
RTC001
Tube Clamp (x4)
M6 x 10MM Socket Button (Pack of 10) PRD101
KEY003
4MM Allen Key for Socket Button (x1)
Reel Easy End Stand Common Parts
Slidelock Max Steering Wheel x1 PRD0004
Insert Slidelock Max x2 SMI001
G RGK009
Slidelock Max Gearbox x1
Base Plate Floor Mounted End Stands
Small Max System PRD402K
Large Max System PRD407K
Max Slidelock Base Plate & Stand (x2) PRD0026M
M8 Bolt and Plug (x8) PCR0020
Wall Mounted End Stand
Small Max System PRD40021
Large Max System PRD40022
Max Slidelock Wall Mount PRD00035M
PCR00020
M8 Bolt and Plugs (x8)
Strap Set Spares and Optional Extras
Short Strap Black 0.43M WEB602
Long Strap Black 1.5M WEB603
Strap Buckle BUC100
Black Press Fix Connector (x20) PRD020PFBK
Black Small Wedge for Outer Tube
(Pack of 10) WED200B
Black Large Wedge for Inner Tube
(Pack of 10) WED100B
RTS100B
Black Thumb Screw
412.00mm
412.00mm
Socket Head Screw
End Stand Insert Cap
500.00mm 500.00mm
End Stand Insert Body
Plastica Ltd • Perimeter House • Napier Road
Castleham Industrial Estate • St Leonards-on-Sea • TN38 9NY • UK
Tel: +44 (0)1424 857857 • Fax: +44 (0)1424 857858
email: info@plasticapools.com • www.plasticapools.com
V2_11/2020
Large Slidelock Max
7M to 8M (23' - 26'.3")
For cover width 6.7M to Maximum 7.7M (23' to 26'3")
A 3.5M (11'.6") Out Tube (x2) RLTS002
A 3M (9'10") Inner Tube (x1) RLTS003
Strap Kit (Pack of 10) PRD20040BK
RTC001
Tube Clamp (x4)
M6 x 10MM Socket Button (Pack of 10) PRD101
KEY003
4MM Allen Key for Socket Button (x1)
Standard Floor Standing End Stands
Small Max System PRD400K
Large Max System PRD405K
PRD0012MT
Slidelock Max T System
N Rubber Grommet (Pack of 6) GRO001
Hole Plug (Pack of 10) PLU200
End Plug (x6) PLU005
Optional Extras for Floor
Standing End Stands A Only, Not F.
PRD180 Castor Pack
PRD126 Threaded Deck Anchor Set
PRD00033 Brass Anchor Plug
410.00mm
410.00mm
297.00mm
297.00mm
200.00mm
200.00mm
302.00mm
302mm
Socket Head Screw
End Stand Insert Cap
Outer Tube Outer Tube
End Boss and Shaft
End Boss and Shaft
End Stand Insert Body
M
M
6.00mm
6.00mm
Self Tapping Screw
Self Tapping Screw
B
B
F
F
H H
B
B
P
P A A
SLIDELOCK MAX
H E E
H
O
O O
O
M
M
K
K
L
L
L
L
N
N
M
M
N
N
A
F
B
C H
D
B
E
G
J
H
O
M
K
L
M
N

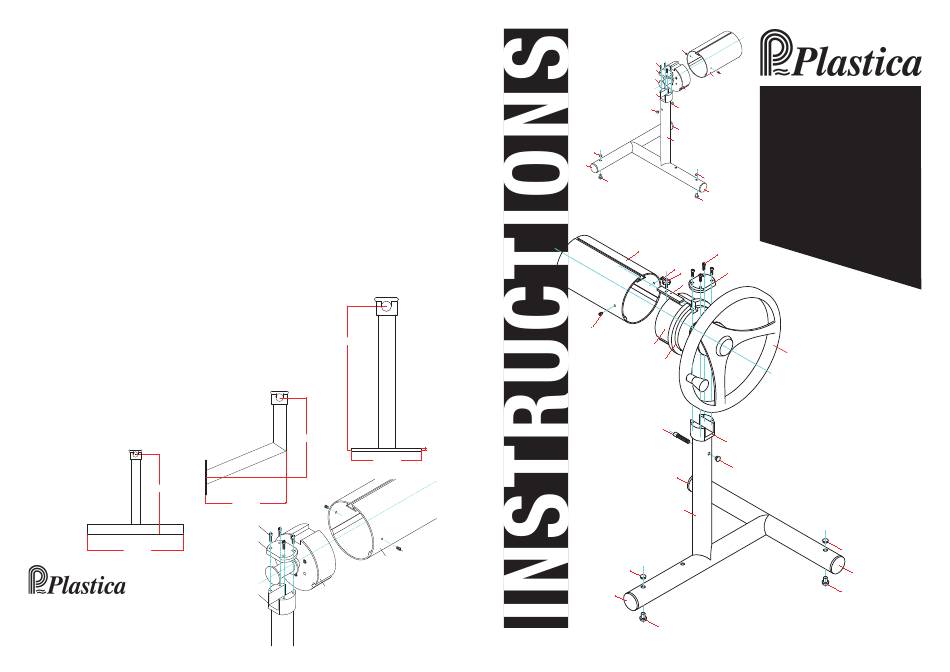

TELESCOPIC
REEL
ASSEMBLY
INSTRUCTIONS
I
A RLTS001 Tube 3m Outer Slidelock Max Aluminium
B SCR005 Screw No 10 x ½in pan head pozi
self tapping s/s A2
C PHW001 Hand wheel triangular male
D SLB001 Steering Wheel Locking Bar
E PCR00023 Slide Lock Max End Boss
F SCR044 Screw M5 x 16mm socket head s/s A4
G RGK009 Slidelock Max Commercial
Reduction Gearbox
H SMI001 Insert for Slide Lock Max End Stand
I PRD00004 Slidelock Max Steering Wheel
J SCR043 Screw M8 x 80mm socket head s/s A4
K PRD00012MT Max Slidelock T Stand
L PLU003 Plug 12mm for hole black
M
PLU005 Plug 48.3mm for Slidelock Max End Stand
N
GRO001 Grommet rubber black
O
PLU006 Plug 8.5mm for hole black
L
M
N
