Range GM Refresh RA007 Manual

For gm 5.3l/6.2l
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

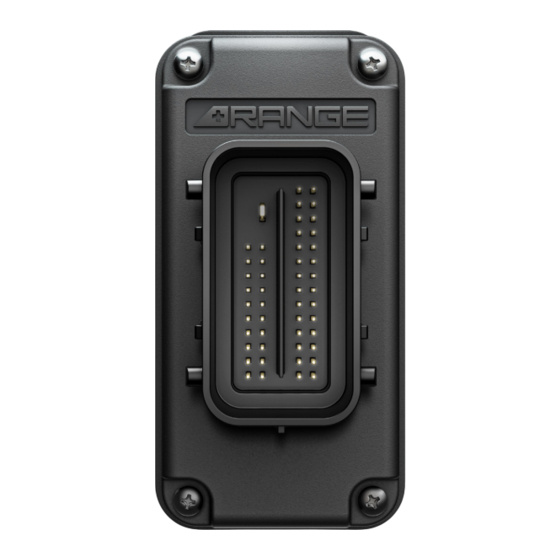

RA007
Range GM Refresh
GM 5.3L/6.2L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM Refresh RA007 and is the answer not in the manual?

Questions and answers

John
June 4, 2025

I have a check engine light on after install

0

Summary of Contents for Range GM Refresh RA007

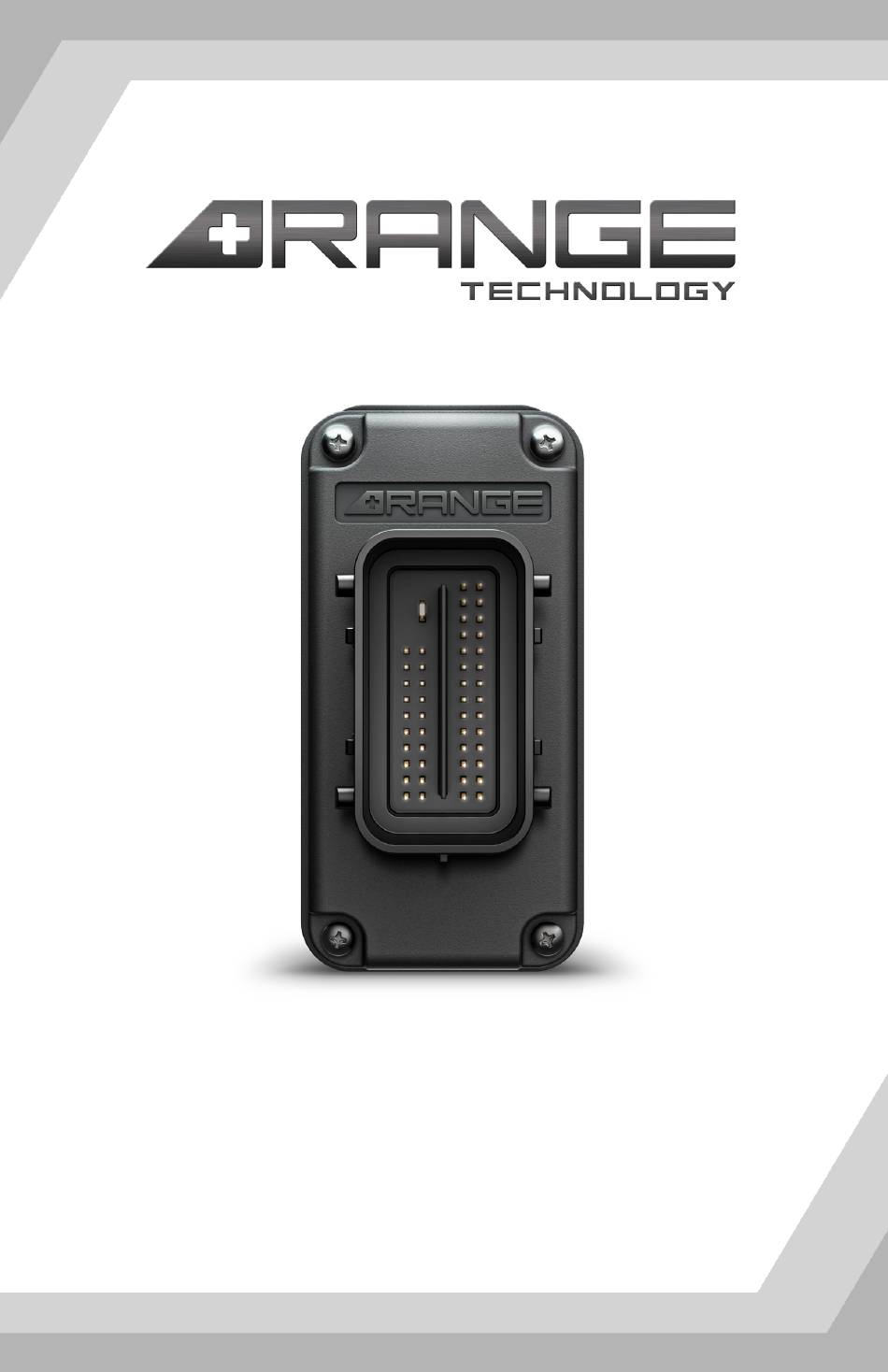

  • Page 1 RA007 Range GM Refresh GM 5.3L/6.2L...

  • Page 2: Table Of Contents

    Table of Contents Read Me Safety Warning & Caution Safety Guidelines FCC & Industry Canada Compliance Installation of Range Module Supported Vehicle Years Materials Required Tools Installation Application List List of Approved Vehicles FAQs...

  • Page 3: Read Me

    Read Me Safety Warning & Caution Throughout this User Manual you will see important messages regarding your safety or the protection of your vehicle. These messages are designated by the words WARNING, CAUTION, or NOTICE. WARNING A WARNING indicates a hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 4: Safety Guidelines

    Safety Guidelines WARNING Before using device, read and understand the user manual, including these additional safety instructions. Failure to do so could result in DEATH or SERIOUS INJURY. • Do not exceed legal speed limits on public roadways. Violating traffic laws is dangerous and could result in injury or vehicle damage or both.

  • Page 5: Fcc & Industry Canada Compliance

    FCC & Industry Canada Compliance MODEL: Parallax FCC ID: 2AA9B05 IC: 12208A-05 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 6: Installation Of Range Module

    Installation of Range Module Supported Vehicle Years -GM/Chevrolet/GMC 2021+ SUV w/5.3L or 6.2L -GM/Chevrolet/GMC 2022.5+ Truck w/5.3L or 6.2L Materials Range Module Required Tools -10mm, 22mm Sockets and Wrench -T-15 Torx...

  • Page 7: Installation

    Installation STEP 1 - Start the engine and turn the steering wheel fully to the left, and then shut off the vehicle. STEP 2 - Open the hood and loosen the 10mm nut on the battery to disconnect the negative terminal from the battery. 10mm...
  • Page 8 Installation Cont’d STEP 3 - On the front left wheel well, remove the six T-15 Torx Screws securing the front half of the fender liner to the wheel well. Then, pull the fender liner up/back to access the ECM. STEP 4 - Locate the ECM towards the front of the wheel well and disconnect the lowest connector.
  • Page 9 Installation Cont’d Push down on the release tab as shown below and the rotating latch should pop up. Rotate/open the latch 180 degrees to free the connector from the ECM. Carefully lift the connector straight up without twisting. Locked Unlocked...
  • Page 10 Installation Cont’d STEP 5 - Install the Range module onto the ECM while making sure the spring-loaded latch locks to the ECM. Range Logo CAUTION: Make sure the Range module is fully seated on the ECM by verifying the position of the spring-loaded latch beneath the module.
  • Page 11 Installation Cont’d STEP 6 - Connect the ECM connector to the Range module. Make sure that the ECM connector is fully seated against the Range module before rotating the latch closed (if the latch starts to close by itself as you are putting pressure on the connector, that means it is fully seated).
  • Page 12 PAGE INTENTIONALLY LEFT BLANK...
  • Page 13 PAGE INTENTIONALLY LEFT BLANK...

  • Page 14: Application List

    Application List List of Approved Vehicles Part Number Year Make Model Engine Emissions Category RA007, FRRA007 2021 CHEVROLET TAHOE 5.3L NA LEVIII ULEV70 RA007, FRRA007 2022-2024 CHEVROLET TAHOE 5.3L NA LEVIII ULEV50 RA007, FRRA007 2021 CHEVROLET SUBURBAN 5.3L NA LEVIII ULEV70 RA007, FRRA007 2022-2024 CHEVROLET SUBURBAN...
  • Page 15 FAQs Frequently Asked Questions Question: Why am I getting a message to roll the windows up and down after I’ve installed the module? Answer: When the battery is disconnected, the vehicle will need to relearn the window position. Roll the window down and pause for a few seconds, then roll the window up and keep holding the switch for 5 seconds after it reaches the top.
  • Page 16 Range Technology is a brand of Holley Tuning Group For additional questions not found in the user guide, call: Holley Technical Support: (888)-360-3343 Mon - Fri 8:00 am - 5:00 pm MST To expedite your support call, please have your Vehicle Information, Part Number, and Serial Number ready prior to calling Technical Support.

This manual is also suitable for:

Gm refresh frra007
