KA01661P/00/EN/02.24-00
71668316
2024-09-01
Products
Brief Operating Instructions

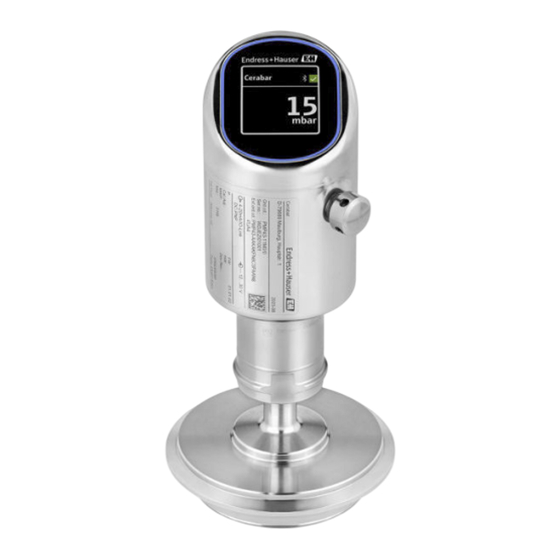

Cerabar PMP43
Pressure measurement
4-20mA analog
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Cerabar PMP43
Summary of Contents for Endress+Hauser Cerabar PMP43
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
-
Page 2: About This Document
About this document Cerabar PMP43 4-20mA analog About this document Document function The Brief Operating Instructions contain all the essential information from incoming acceptance to initial commissioning. Symbols 1.2.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. -
Page 3: List Of Abbreviations
Cerabar PMP43 4-20mA analog About this document Additional information: Reference to documentation: Reference to page: Series of steps: Result of an individual step: 1.2.4 Symbols in graphics Item numbers: 1, 2, 3 ... Series of steps: Views: A, B, C, ... - Page 4 About this document Cerabar PMP43 4-20mA analog A0029505 OPL: The OPL (overpressure limit = measuring cell overload limit) for the device depends on the lowest-rated element, with regard to pressure, of the selected components, i.e. the process connection must be taken into consideration in addition to the measuring cell. Pay attention to the pressure- temperature dependency.
-
Page 5: Turn Down Calculation
Android, Google Play and the Google Play logo are trademarks of Google Inc. Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Endress+Hauser... -
Page 6: Basic Safety Instructions
Do not touch or clean device surfaces with pointed or hard objects. Clarification for borderline cases: ‣ For special fluids and fluids for cleaning: Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 7: Product Security
The device fulfills general safety requirements and legal requirements. It also complies with the EU directives listed in the device-specific EU declaration of conformity. Endress+Hauser confirms this fact by affixing the CE mark to the device. IT security Our warranty is valid only if the product is installed and used as described in the Operating Instructions. -
Page 8: Product Description
Product description Cerabar PMP43 4-20mA analog • Without the SmartBlue app, the device is not visible via Bluetooth® wireless technology. • Only one point-to-point connection is established between the device and a smartphone or tablet. • The Bluetooth® wireless technology interface can be disabled via local operation or via SmartBlue/FieldCare/DeviceCare. -
Page 9: Incoming Acceptance And Product Identification
Cerabar PMP43 4-20mA analog Incoming acceptance and product identification Incoming acceptance and product identification Incoming acceptance DELIVERY NOTE 1 = 2 A0016870 Check the following during incoming acceptance: • Is the order code on the delivery note (1) identical to the order code on the product sticker (2)? •... -
Page 10: Storage And Transport
Mounting procedure Cerabar PMP43 4-20mA analog 4.2.2 Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate. Storage and transport 4.3.1 Storage conditions • Use the original packaging • Store the device in clean and dry conditions and protect from damage caused by shocks Storage temperature –40 to +85 °C (–40 to +185 °F) - Page 11 Cerabar PMP43 4-20mA analog Mounting procedure Orientation NOTICE If a heated device is cooled during a cleaning process (e.g. by cold water), a vacuum develops for a short time. Moisture can get into the measuring cell via the pressure compensation filter (1) as a result of the vacuum. Whether or not a filter element is installed depends on the device version.
-
Page 12: Electrical Connection
Electrical connection Cerabar PMP43 4-20mA analog Electrical connection Connecting the device 6.1.1 Potential equalization If necessary, establish potential equalization using the process connection or the grounding clamp supplied by the customer. 6.1.2 Supply voltage 12 to 30 V on a direct current power unit The power unit must be safety-approved (e.g. -
Page 13: Ensuring The Degree Of Protection
Cerabar PMP43 4-20mA analog Electrical connection WARNING Electrical safety is compromised by an incorrect connection. ‣ Non-hazardous area: To meet device safety specifications according to the IEC/EN 61010 standard, the installation must ensure that the maximum current is limited to 500 mA. -
Page 14: Overview Of Operation Options
Operation options Cerabar PMP43 4-20mA analog Operation options Overview of operation options • Operation via LED display operating key • Operation via onsite display • Operation via Bluetooth® Access to operating menu via LED display 7.2.1 Overview A0052426 Operating status LED Operating key "E"... - Page 15 Cerabar PMP43 4-20mA analog Operation options 7.2.2 Operation The device is operated by pressing operating key "E" briefly (< 2 s) or pressing and holding it (> 2 s). Navigation • The LED for the selected function flashes • Press the "E" operating key briefly to switch between the functions •...
- Page 16 Operation options Cerabar PMP43 4-20mA analog Access to operating menu via onsite display Functions: • Display measured values, also fault and notice messages • Display a symbol in the event of an error • Electronically adjustable onsite display (automatic or manual adjustment of display in 90°...
- Page 17 Cerabar PMP43 4-20mA analog Operation options 1061 1107 mbar mbar 42.00 °C A0052427 Standard display: 1 measured value with unit (adjustable) 2 measured values, each with unit (adjustable) Graphic measured value display in % Measured value Menu or home symbol Locking (locking only visible if locked via "Safety mode"...
- Page 18 Operation options Cerabar PMP43 4-20mA analog Selecting option and confirming Select the required option and confirm using the checkmark at the top right (see screens below). 1 → 2 → Language Language Hauptmenü English English Benutzerf... Diagnose Deutsch Deutsch Français Français...
- Page 19 • The Bluetooth® function can be deactivated after initial device setup. A0033202 1 QR code for free Endress+Hauser SmartBlue App Download and installation: Scan the QR code or enter SmartBlue in the search field of the Apple App Store (iOS) or Google Play Store (Android).
-
Page 20: Installation And Function Check
Commissioning Cerabar PMP43 4-20mA analog Installation and function check Before commissioning the measuring point, check that the post-installation and post- connection checks have been performed: • "Post-mounting check" section • "Post-connection check" section Overview of commissioning options • Commissioning via LED display operating key •... -
Page 21: Commissioning Via Onsite Display
Cerabar PMP43 4-20mA analog Commissioning If not successfully activated, the position adjustment LED, keypad lock LED and Bluetooth LED flash quickly for 12 seconds. Commissioning via onsite display If necessary, enable operation (see section "Onsite display, locking or unlocking procedure"... -
Page 22: Protecting Settings From Unauthorized Access
Commissioning Cerabar PMP43 4-20mA analog Configuring the operating language 8.7.1 Onsite display Configuring the operating language Before you can set the operating language, you must first unlock the onsite display: Open the operating menu. Select the Language button. 1 →... - Page 23 Cerabar PMP43 4-20mA analog Commissioning Canceling the locking procedure via onsite display/SmartBlue app After entering the password, you can enable parameter configuration of the device as an Operator option with the password. The user role then changes to Maintenance option.
- Page 24 *71668316* 71668316 www.addresses.endress.com...
