Summary of Contents for Audiofrog USB-Duo

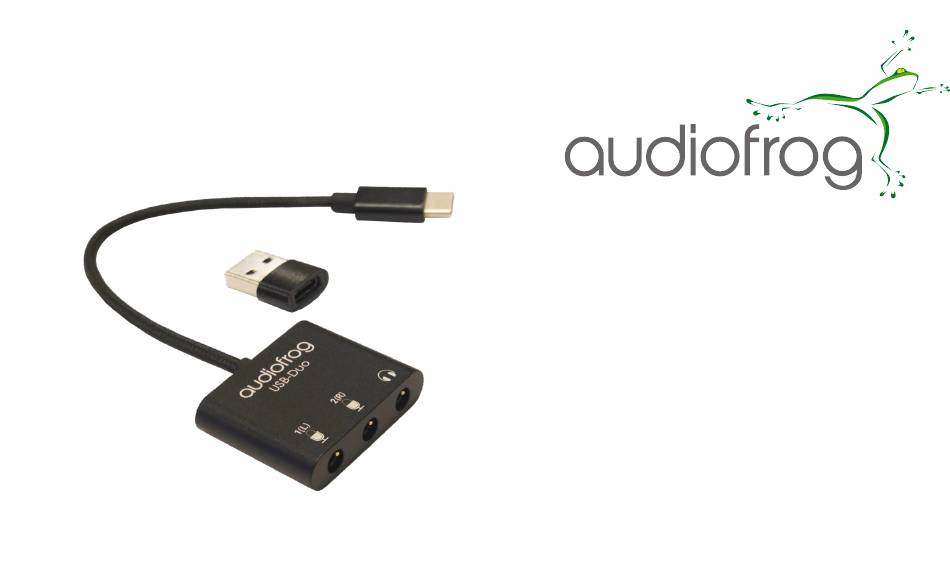

- Page 1 USB-Duo Owner’s Manual...
- Page 2 (electret) microphones. A bias voltage of 2.7 VDC is provided on the microphone inputs. Typical input and out- put frequency response is 20Hz - 20kHz (+0, -0.5 dB). USB-Duo can be used with Macs and PCs, tablets and phones. USB-Duo uses the standard USB audio driver and no additional app is required to use the device. A USB-C to USB-A adapter is included.
- Page 3 USB-Duo...
- Page 4 USB-Duo Connections USB-C (USB-A with Adapter) Micropohne Input Headphone Output USB-Duo Ring Ring 1(L) 2(R) Sleeve Sleeve Tip: Left Signal + Tip: Left Signal + Left Microphone Input Stereo Output Ring: No Connection Ring: Right Signal + Sleeve: Signal - (GND)
- Page 5 USB-Duo Setup USB-Duo should work with any device or program capable of using a standard USB sound card for recording or audio analysis. For setup details, you may need to consult the user guide for your device or your software.
- Page 6 Audiofrog and the Audiofrog logo are trademarks of Audiofrog, Inc, registered in the United States and/or other countries. Audiofrog et le logo sant des marques est une marque commerciale de Audiofrog, Inc dépo- sée aux Étas-Unis et/ou dans d’autres pays.
