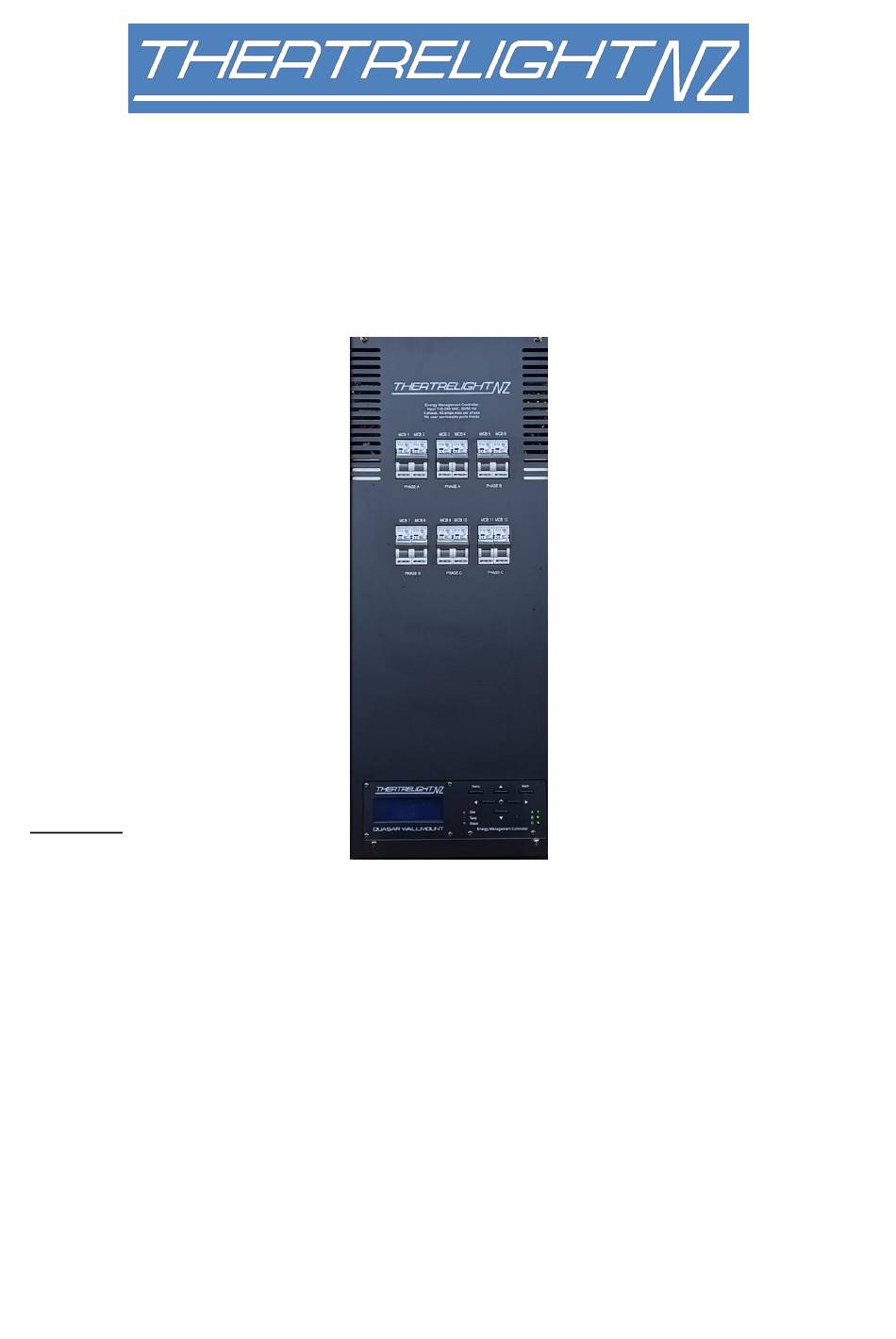

Summary of Contents for Theatrelight Quasar Relay 12
-
Page 1: Table Of Contents
Quasar Relay 12 Contents: Getting Started Setting a Start DMX Address Setting an Individual DMX Address for each Relay Channel HOLD on DMX Loss Relay Function Modes Security Delays Factory Reset Theatrelight NZ Ltd P O Box 13-159, Onehunga Auckland 1643... -
Page 2: Getting Started
Quasar Relay 12 Manual Getting started: Use the up/down and left/right buttons to access features in each menu screen and button to select menu a menu, function or confirm a choice. Quasar Relay 12 menu back Version 1.2 Software version... -
Page 3: Setting A Start Dmx Address
Quasar Relay 12 Manual Setting a Start DMX Address To create the starting address for the first relay channel with fixed sequential addresses for the remaining 11 relays: From Startup Screen press button: menu Turn on DMX Start Mode Menu / Setup... -
Page 4: Hold On Dmx Loss
Quasar Relay 12 Manual HOLD on DMX Loss In the event the DMX signal is lost you can select an action the Quasar Relay 12 will take with regards the status of the relay outputs. From Startup Screen press button:... -
Page 5: Relay Function Modes
Quasar Relay 12 Manual Relay Function Modes Each relay channel can be setup to operate under one of several modes: 1. DMX Level Mode: The relay responds to its set DMX address 2. On Mode: Permanently on when the unit is powered 3. -
Page 6: Security Delays
Quasar Relay 12 Manual Security Delays Each relay channel can be set with a delay on and off time. This can be useful for setting up cascading on times in conjunction with DMX Sense or On at power up modes... -
Page 7: Factory Reset
Quasar Relay 12 Manual Factory Reset The Quasar Relay 12 can be reset to the following default settings: DMX Start Address 001 (Chn: 001 – 012) DMX Level Mode On/Off Delay to instant From Startup Screen press...
