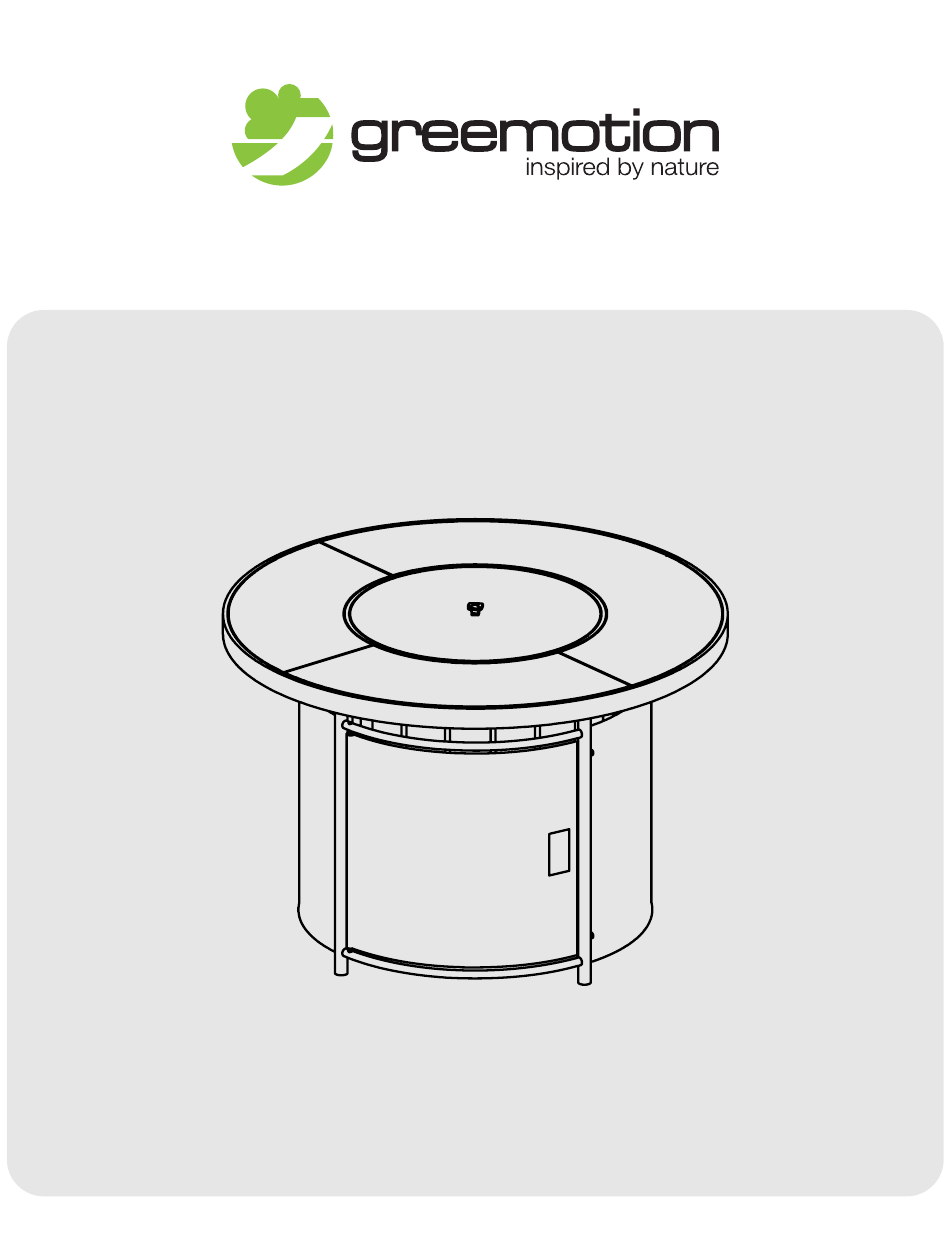

- Page 1 GM-1045 Barbuda Firepit Table...
- Page 2 SAFETY INSTRUCTIONS AND WARNINGS: INDICACIONES DE SEGURIDAD Y ADVERTENCIAS: • The product is to be used exclusively for its intended purpose. • Utilice el artículo exclusivamente conforme a las instrucciones de uso del • Regularly check the condition and functionality of the product. If you notice mismo.
- Page 3 PARTS 1 pc 1 pc 2 pc 1 pc 1 pc 1 pc 1 pc 2 - 7...
- Page 4 HARDWARE M6x30L M6x15L M6x20L 8 pc 4 pc 4 pc 16 pc 1 pc 3 - 7...
- Page 5 ASSEMBLY INSTRUCTIONS Align Back (A) with Sides (C). Secure with washer (DD) and bolt (AA) using supplied Allen key (EE). Align Door (B) between Sides (C). Secure with washer (DD) and bolt (AA) using supplied Allen key (EE). Fasten Cross Brace (D) to bottom of Sides (C).
- Page 6 ASSEMBLY INSTRUCTIONS Align assembled base on face-down Table (E). Secure washer (DD) and bolt (CC) using supplied Allen key (EE). Open Door (B) and place the tank onto the bottom frame (D). Secure in place by using the plastic screw. Attach the table's burning system to the tank by rotating clockwise to its connector.
- Page 7 ASSEMBLY INSTRUCTIONS Scatter the provided Rocks (F) into the steel bowl. Note: The fire shield on the burner system must be exposed as illustrated. Place the Cover (G) onto the center of the Table (E). Note: In order to protect the burner system, when the fire is not in use and/or on rain days, the cover should be used.
-
Page 8: Care And Maintenance
SWITCH USAGE INSTRUCTIONS LOW/ Min. LOW/ Min. CLOSE OPEN Max. Max. Step 1: Lighting Step 2: Adjusting and Shutting Down Open the igniter button and install an AAA battery If the burner is not lit, press down the control knob (not included), then secure the cap back on.
