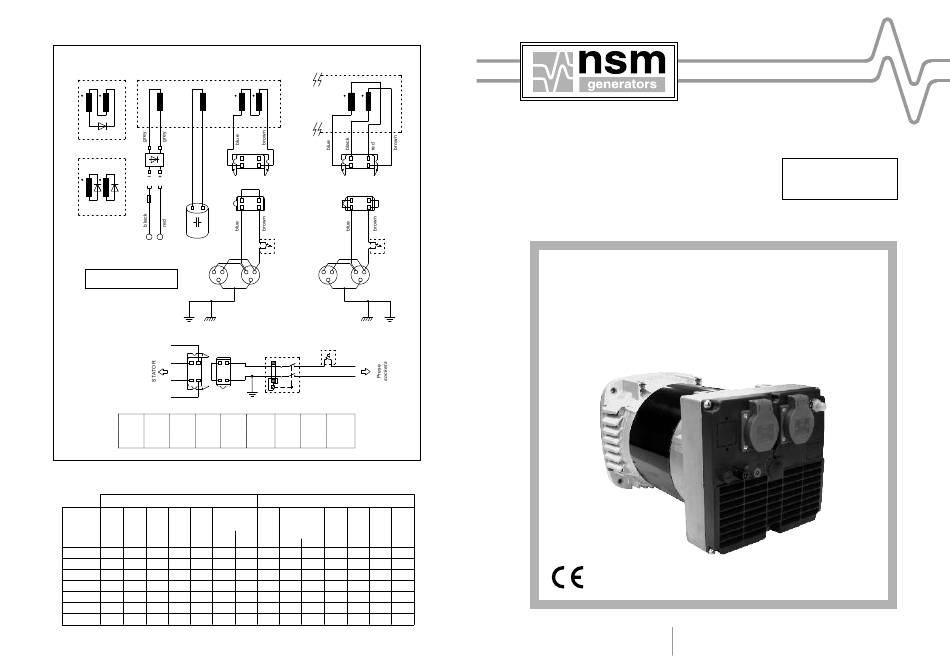

NSM K 100 Use And Maintenance Manual

Schema di collegamento - Wiring diagram - Schema des connexions
Anschlußschema - Esquema de conexiones
(Optional)
ROTOR BATTERY STATOR
AUXILIARY
(1 diode) CHARGER (single voltage)
ROTOR
(2 diodes)
C
12V - 10A dc
brown
blue
Non sovraccaricare le prese
Do not overload the sockets
yellow - green
(Optional)
Interruttore
Differenziale
Residual Current
Circuit Breaker
black blue brown green grey
nero blu marrone verde grigio
noire bleu marron vert gris
schwartz blau braun grüne grau
negro azul marron verde gris
Fig. 2
Resistenze avvolgimenti (20°C) - Winding resistances (20°C) - Resistances des bobinage (20°C)
Wicklungswiderstande (20°C) - Resistencias de los bobinados (20°C)
50Hz – 3000rpm
Tipo
S1 stat aux B.C. rot C
Type
kVA
W W W W m F
*
230V
K100 B 2,2 3,30 9,65 0,23 3,65 13
K100 C 2,7 1,74 11,37 0,23 3,65 14
K100 D 3,5 1,74 11,37 0,23 3,75 13
K100 E 4,2 1,24 7,84 0,19 4,20 18
K100 F 5,0 0,94 4,49 0,21 2,32 30
K100 FX 5,5 0,82 4,55 0,12 2,75 30
K100 G 6,0 0,66 3,70 0,11 2,60 35
* single voltage: R blue-brown = R
* dual voltage: R blue-red = R black-brown = R/2
C: valori indicativi - C: indicative values - C: valeurs indicatives - C: Ungefahre Angaben - C: valores indicativos
STATOR
(dual voltage)
black
T T
brown
blue
230V 115V
yellow - green
Esempi di cuffie cablate
Examples of wired covers
Id
T
orange red violet yellow
arancione rosso viola giallo
orange rouge violet jaune
orange rot violett gelb
anaranjado rojo violeta amarillo
60Hz – 3600rpm
S1 stat aux B.C. rot C
kVA
W W W W m F
**
240V 240V 220V
14 2,7 --- --- --- --- --- ---
16 3,5 0,64 --- 6,89 0,14 3,65 18
14 4,5 0,64 0,60 6,89 0,14 3,75 18
20 5,5 0,44 0,40 3,61 0,18 4,20 30
35 6,0 0,39 0,36 3,29 0,16 2,32 30
35 6,5 0,31 0,28 2,75 0,11 2,75 40
40 7,2 0,25 0,21 2,70 0,10 2,60 40
** R blue-red = R black-brown = R
7MAN0081 - 201402
Alternatori Monofase
Single-phase Alternators
Alternateurs Monophases
Einphasengeneratoren
Alternadores Monofasicos
MANUALE D'USO E MANUTENZIONE
USE AND MAINTENANCE MANUAL
MANUEL POUR L'ENTRETIEN ET LA MANUTENTION
HANDBUCH FÜR DIE BEDIENUNG UND WARTUNG
MANUAL PARA EL USO Y MANTENIMIENTO
Nuova Saccardo Motori Srl
Via Lazio, 5 tel: +39 0445 595888
36015 Schio (Vicenza) - Italy fax: +39 0445 595800
K 100
www.nsmgenerators.com
