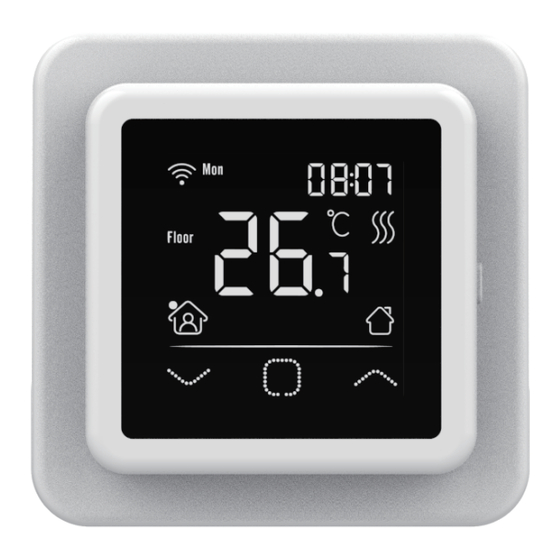

MH C16 WiFi Quick Start Manual

C16
WiFi / Basic
Voltage : 230V - 50/60 Hz
Max. load : Max. 16 Amp / 230V
Standby voltage : C16 Basic: 1W / C16 WiFi: 2W
Temp. range : +5/+40ºC
Housing : IP21
Standard colour : Polar white (RAL 9010)
Sensor : Floor sensor and build in Air sensor
Warranty : 2 years manufacturer's warranty
Approvals : FI / CE
Manufacturer : MHGroup B.V. Netherlands
86
52
86
3. Assembly
1.
2. Connect the thermostat according to the connection diagram (point 4).
3.
4. Put the frame on it and click the display back into place.
1. 2.
4. Wiring diagram
meter cupboard.
Recommendation: Keep the maximum load around 90% of the 16A to extend the service
life.
ROOM -OUT SENSOR
POWER
FLOOR SENSOR
N1 NL L1
N1 N L L1 S2 COM SENSOR S1
POWER
85V-265V
FLOOR
50/60Hz
SENSOR
MAX LOAD: 16A
IP 21
1. Introduction
Study this manual carefully and keep it with the
warranty documents. Connection must be carried
regulations. Before mounting or dismounting
in the meter cupboard. This thermostat can be
deep in accordance with standard DIN formats.
These regulations describe the C16 Basic and the
C16 WiFi version.
51 11
59
3. 4.
FLOOR SENSOR : Floor sensor connection
ROOM OUT SENSOR: External room sensor
connection
N1 Heating cable connection wire*
L1 Heating cable connection wire*
N Power supply (Neutral)
L Power supply (Phase)
EARTH : Connect the earth of the heating
cable and the earth of the power supply
outside the thermostat using the supplied
terminal block.
* Order L1 or N1 does not apply.
5. Explanation of symbols
thermostat on. The thermostat is operated by means of the 3 touch-sensitive buttons
Down (touch-sensitive key)
Up (touch-sensitive key)
WiFi indicator
Hello
Clock
Room temperature
Floor temperature
Set up
6. Startup menu
9 26
will be updated automatically after connection.
Clock (CLK)
Choose Day
Sensor selection (5 options)
1. Floor sensor
2. Room sensor
3.
4. External room sensor
5.
of 28 degrees!
Display
Touch sensitive keys
Current temperature
Heating
Percentage
Current period (Smart Mode)
Key lock
Frost protection mode
Manual mode
House
Choose Hour Choose Minutes
