CONTROLLER AMAX 70 Pure
Quick Installation Guide
Order no. / SKU: SA-AMAX-5570-00
Manufacturer:
SALZ Automation GmbH
Bad Salzu en, Germany
Email: support@salz-automation.com
Overview
Intel® Atom® Control IPC, Linux based, with EtherCAT Slice I/O
extension
Function
Ultra-compact Linux-based control platform with Intel® Atom®
quad-core processor, 64GB eMMC onboard storage, 4 GB
DDR4 onboard memory, 2 x LAN, 2 x USB, 2 x CAN, 2 x COM,
and 1 x HDMI, EtherCAT IO expansion

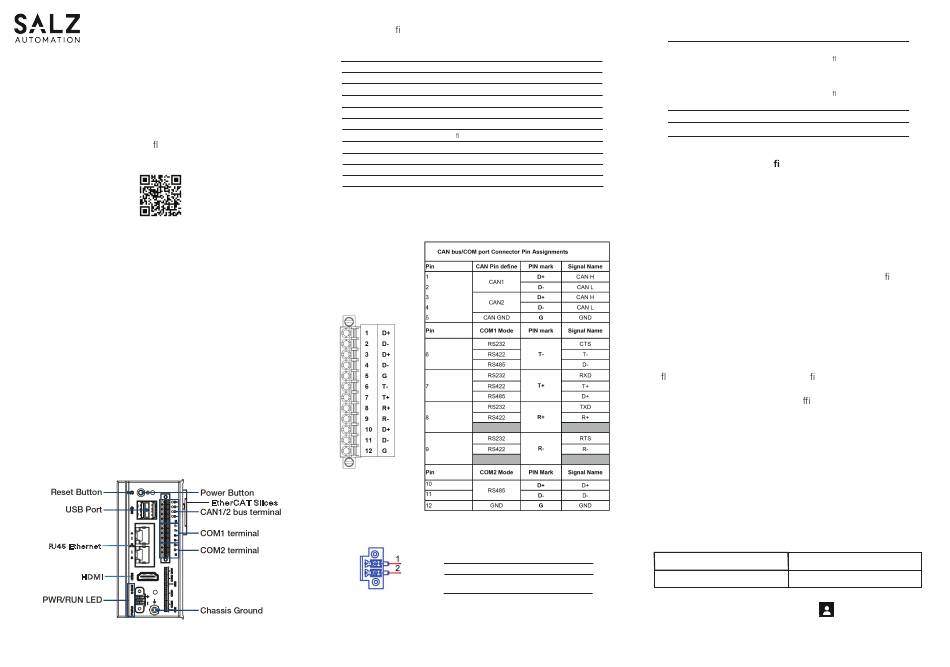

1. Frontview
Front View of AMAX-70
RJ45 Ethernet
HDMI
-1-
Legend of Con guration for the AMAX-70 CPU Module
No. Component
EtherCAT Slices
1
2 USB Ports
3 RJ45 Ethernet
HDMI
4
CAN1/2
5
6/7 COM1/2
8 Chassis Ground
Reset Button
9
10 Power Button
11 PWR/RUN LEDs
12 Power Terminal
2. COM connector
EtherCAT Slices
3. Wiring Power Input
CONTROLLER AMAX 70 comes with a screw connector that
carries 24 V DC external power input, and features reversed wiring
protection. Therefore, the system will not cause damage from
reversed polarity of ground lines and power lines.
Description
Connection for EtherCAT Slice IO extension modules.
Interfaces USB 3.2 for peripherals such as mouse.
Connecting to local networks, internet or EtherCAT.
Digital interface for a monitor with audio output.
CAN bus terminals.
Serial com. RS-232/ 422/485 selectable in BIOS.
Screw to x the shielding ground connection.
Hidden button for PC hardware reset function.
Button for PC power function.
Diagnostic LEDs for CPU module.
2-pin terminal for 24 V DC power.
No. Name Function
1 + Power IN V+ (24 V DC)
2 - Power IN V- (GND)
-2-
4. Environmental limits
Operating Temperature
-20 ... 60 °C @ 5 ... 85% RH
with 0.7 m/s air ow
(without expansion)
-20 ... 55 °C @ 5 ... 85% RH
with 0.7 m/s air ow
(with mPCIe + EtherCAT expansion)
Storage Temperature -40 ... 85 °C (-40 ... 185 °F)
Ambient relative humidity 10 ... 95% @ 40 °C (non condensing)
5. Software Details and Con guration
Overview
This quick installation guide will explain the operation of the
software SALZ Automaiton System Software 'FLECS'.
'FLECS' is the software for the AMAX 80-C and AMAX 70 control-
lers from SALZ Automation. The FLECS version can be upgraded
from 'PURE' version on the controllers and is easy to understand
and work with. It can be accessed by using the speci c IP in the
internet browser on the PC. The GUI is user friendly, containing
info-graphic components for optimal usage.
The 'FLECS' automation system adds an 'APP STORE' to 'PURE'
version. Applications/Images/Containers can be deployed on the
controller from this online store directly. And similar to 'PURE',
applications can also be installed without internet as well using a
USB ash drive or using locally stored les on your PC.
This quick installation guide will walk you through the processes
and methods of using the software e cienty and conveniently.
For information not addressed in this document visit www.salz-au-
tomation.com or contact us at hello@salz-automation.com.
1. Accessing the Software
Once turned on, the controller can be accessed by ethernet ports.
Connect the PC to the controller to one of the two ethernet ports.
Port 1: DHCP / Port 2: Static IP- address 192.168.221.10
Open the internet browser to access the dashboard using the IP.
Default Credentials:
Username
Password
2. User Options
User options can be found after clicking '
of the browser. You can 'Change User Password' and 'Manage
User' in this window. 'User History' can also be accessed.
-3-
admin
changeme
' on the top right corner
