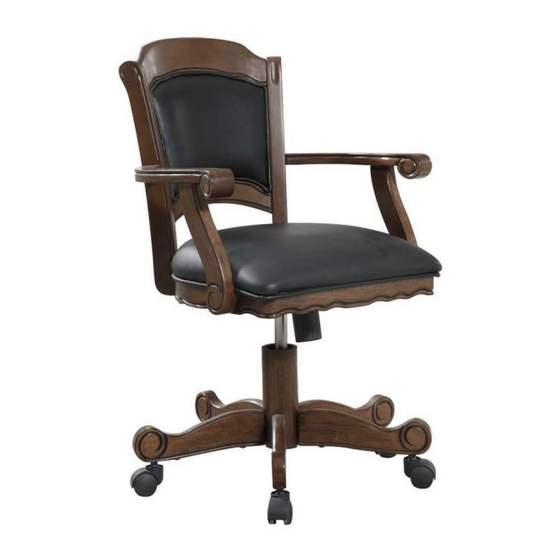

- Page 1 ASSEMBLY INSTRUCTIONS COASTER FINE FURNITURE Fine Furniture for every stage of life 100872 ARM CHAIR REVREVISION 0: 10/4/2019 PAGE 1OF 6 COASTERFURNITURE.COM...
-
Page 2: Parts Identification
100872 ITEM: ASSEMBLY INSTRUCTIONS ASSEMBLY TIPS: 1. Remove hardware from box and sort by size. 2. Please check to see that all hardware and parts are present prior to start of assembly. 3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly. -
Page 3: Hardware Identification
100872 ITEM: HARDWARE IDENTIFICATION LEFT ARMREST(1/4*45) RIGHTARMREST(1/4*25) METAL WASHER(5/16*19) HEX NUT(5/16*13) SCREW(8*4*50) GLUE ALLEN WRENCH(1/4) SPANNER(5/16) WOODEN PLUG(12.5*9) LARGE SPRING WASHER(5*16) SMALL SPRING WASHER(1/4) WOOD SCREW(3*12) SLICE SWITCHING(10*10) NOTE: Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item. - Page 4 100872 ITEM: ASSEMBLY INSTRUCTIONS LOWER BED END STEP 1 UPPER BED END STEP 2 COASTERFURNITURE.COM PAGE 4 OF 6...
- Page 5 100872 ITEM: ASSEMBLY INSTRUCTIONS LOWER BED END STEP 3 UPPER BED END STEP 4 COASTERFURNITURE.COM PAGE 5 OF 6...
- Page 6 100872 ITEM: Note:Dimension tolerance ±5％ COASTERFURNITURE.COM PAGE 6 OF 6...
