USER MANUAL
BEFORE installing refer to the full text MANUAL! For safety during installation and operation of the detector is required to
use the recommendations and warnings of this instructions. It is also a WARRANTY CARD!
DESTINATION
Detector MAXI / Q-CO is designed for monitoring combustible gas (methane, propane-butane) in closed rooms. The detector
performs constant measuring the concentration of this gas in the air. When gas reaches 15% of lower explosion limit (gas
concentration about 7 times lower than gas can explode), optical and acoustic alarm signal turn on. Additional outputs
(MAXI/K-GP230, MAXI/K-GP12 version) allow to connect detector to alarm systems and control electro valves and optical-
acoustic modules (acoustic signal, leds). When gas concentration gets lower than alarm threshold, alarm system turns off
automatically.
APPLICATIONS
- BOILER ROOMS with stores fired by natural gas – methane or propane-butane in the bottle,
- KITCHENS and BATHROOMS equipped with gas appliances for example: cookers, stoves, water heater,
- Rooms with gas devices, such as gas meters, cylinders, tanks, gas pipes (bo9iler rooms, corridors), portable gas water
heaters,
- Home Garages with LPG gas fittings,
- School physical-chemical labs,
- Public places
MAXI / K-GP is a microprocessor-controlled device, fully automatic, does not have any regulatory elements that require
handling by the user !!!
Therefore, each attempt to interfere in the internal circuitry of the detector, a violation of seals, change the output
configuration, splashing water or other liquids may result in: - the loss of any warranty, - may cause electric shock - can
cause permanent damage to the detector - can trigger a change electro parameters measuring the detector, and thus result in
loss of functionality as a warning device.

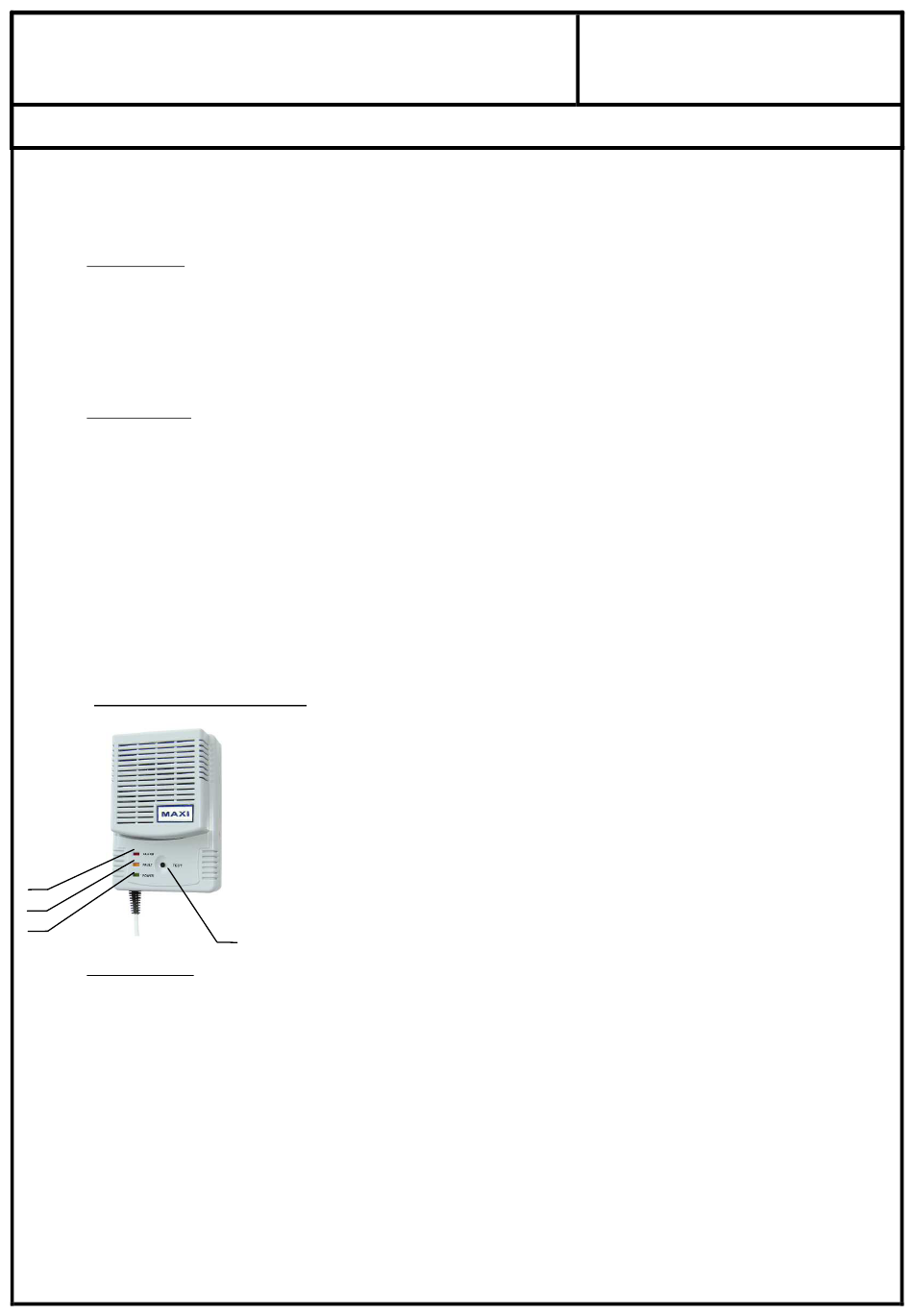

DESCRIPTION OF DETECTOR
.
3
.
2
1
INSTALLATION
Gas detector MAXI / K-GP should be installed on the wall in close proximity of the expected sources of leakiness of gas
fitting not more than 5 meters away. In most cases, the optimum installation place of the detector is:
> On the wall at a height of head of an adult man (approx. 180 cm), not less than 30 cm from the ceiling, concerns natural gas
– methane and about 30 centimeters from floor in case of propane0butane gas in bottles
> in a place not protected by furnitures, curtains or other items that can reduce air flow to the detector
> away from vents and windows
> no closer than 1m from gas cookers, micro ovens and ovens
> not in direct sunlight exposure places, not threatened by the direct influence of water vapor, water sprays, combustion gases
from furnaces or internal combustion engines
This device is not for:
- people (also children) who are limited by physical, sensory and intellectual abilities
- people without experience or knowledge about this devise unless it is under supervision according to instruction
methane and propane-butane gas detector
1 - green "POWER" LED indicates power detector
2 – yellow "FAULT" LED indicates damage detector
3 – red "ALARM" LED indicates danger
4 – "TEST" button is used to verify the correct operation
of optical-acoustic detector elements
Attention: If you want to check the detector, hold "TEST" button for 5 seconds.
If the detector launch yellow LED, red LED (4 flashes) and then turn on an acoustic
signal - the detector is working properly.
4
