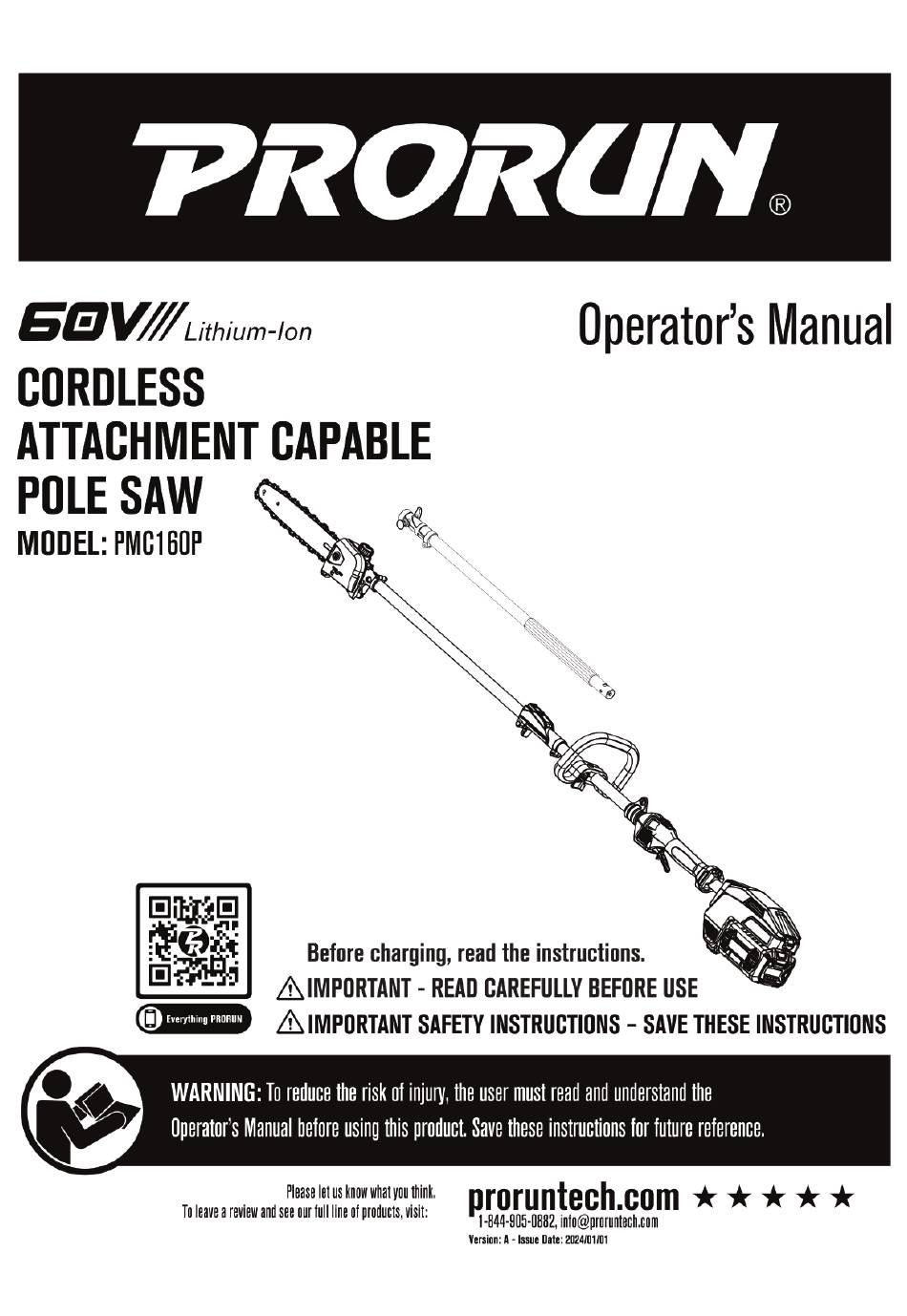

PRORUN PMC160P Operator's Manual

60v lithium-ion cordless attachment capable pole saw

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the PMC160P and is the answer not in the manual?

Questions and answers

Summary of Contents for PRORUN PMC160P

Page 2: Table Of Contents
TABLE OF CONTENTS 1.GENERAL MACHINE SAFETY WARNINGS 2.SAFETY INSTRUCTIONS FOR STRING TRIMMER 3.TRANSPORTING AND STORAGE 4.BATTERY AND BATTERY CHARGER 5.SYMBOLS 6.SPECIFICATIONS 7.KNOW YOUR MACHINE 8.BATTERY AND CHARGER OPERATION 9.ASSEMBLY INSTRUCTIONS 10.OPERATION 11.MAINTENANCE AND REPAIR 12.TRANSPORTING, CLEANING, AND STORING 13.TROUBLESHOOTING 14.DISPOSAL 15.EXPLODED VIEW...
Page 3: General Machine Safety Warnings
1. General machine safety warnings WARNING Read all safety warnings, instructions, illustra- tions and speciﬁcations provided with this machine. Failure to follow the warnings and instructions may result in electric shock, ﬁre, and/or serious injuries. Save all warnings and instructions for future reference. The term “machine”...
Page 4 machine may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations. f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
Page 5 ﬁre. Service a) Contact PRORUN Customer Service with questions or issues with this machine. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery...
Page 6 2. SAFETY INSTRUCTIONS FOR POLE SAW a) The machine is only designed for trimming branches or leaves, delimbing (removal of branches from trees or parts of trees). pruning (removal of live or dead branches, or of multiple leaders of shoots, shoots, from standing trees).
Page 7: Transporting And Storage
3. TRANSPORTING AND STORAGE a) Unintentional starting may result in personal injury or prop- erty damage. Remove the battery before inspecting the string trim- mer or carrying out any cleaning, maintenance, repair work, before storing, and any other time the string trimmer is not in use. b) Improper storage can result in unauthorized use, damage to the machine, battery, and charger or an increased risk of ﬁre, electric shock, and other personal injuries or property damage.
Page 8: Battery And Battery Charger
Only use original batteries for products and only charge them in an original battery charger. Battery charger ® The battery chargers are only used for charging of PRORUN 60V replacement batteries. – This manual contains important safety and operating instructions for battery charger.
Page 9 Battery – Do not dismantle, open or shred secondary batteries. – Keep batteries out of the reach of children. – Do not expose batteries to heat or ﬁre. Avoid storage in direct sunlight. – Do not short-circuit a battery. Do not store batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by other metal objects.
Page 10: Symbols
5. SYMBOLS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it. Because a chain saw is a high-speed cutting tool, special Safety Alert safety precautions must be observed to reduce the risk of personal injury.
Page 11 Use and store charger only indoors in dry rooms. Indoor use only Battery charger is belong to Class II tools. It intended for Class II tool charging Li-ion batteries, and having an output at safety extra-low voltage. Fuse T3.15A time-lag miniature fuse-link Alternating Current Type of current Li-Ion...
Page 12: Specifications
6. SPECIFICATIONS Machine model PMC160P Voltage DC 60V BLDC Motor type Maximum speed of output shaft 8000 RPM (high), 6000 RPM (low) Drive sprocket 7T * 3/8 inch Picth 3/8 inch Gauge 0.050 inch (1.27mm) Cutting length 10.25 in (260 mm) Weight (without battery, empty oil tank) 9.63 lb (4.37 Kg)
Page 13: Know Your Machine
7. KNOW YOUR MACHINE 10.Suspension ring 1.Saw chain 11.Speed switch 2.Guide bar 12.Trigger lock out 3.Chain oil tank cap 13.Variable speed switch trigger 4.Chain sprocket cover 14.Rear handle 5.Guide bar cover 15.Ba ery 6.Chain oil ﬂow adjuster 16.Ba ery r 7.Lock Pin 8.Lock knob 17.Extension a achment...
Page 14: Battery And Charger Operation
This section describes the battery and battery charger safety for your battery product. Only use PRORUN original batteries for PRORUN products and only charge them in an original battery charger from PRORUN. The batteries are software encrypted. 1. Electric plug 5.
Page 15 The battery is ok, but temperatures are between 41 °F (5 °C) and ﬂashing red. may be experiencing temperature deviation. 113 °F (45 °C). Wait the battery cool down. Charger LED Battery is damaged. Contact PRORUN Customer Service. always light red. Charger is damaged.
Page 16: Assembly Instructions
9. ASSEMBLY INSTRUCTIONS Unpacking This product requires assembly of the adjustable front-assist handle and cutting guard. – Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. – Inspect the product carefully to make sure that no breakage or damage occurred during shipping. –...
Page 17 Fitting guide bar and chain saw – Loosen and remove the Chain Cover Nut, then remove the Chain Cover from the Cutting head. – Place the Saw Chain over the Guide Bar. The cutters of the Saw Chain must face away from the motor along the top edge of the Guide Bar.
Page 18 Chain oil WARNING! Poor lubrication of cutting equipment may cause the chain to snap, which could lead to serious, even fatal injuries. - Chain oil must demonstrate good adhesion to the chain and maintain its ﬂow characteristics regardless of whether it is warm summer or cold winter weather.
Page 19: Operation
10. OPERATION Install and remove the battery pack – Align the raised ribs of the battery pack with the mounting slots in the string trimmer’s battery port. – Slide the battery pack forward into the string trimmer until you hear the release button make an audible click.
Page 20 Speed Switch Trigger lock-out Trigger WARNING! The machine continues to work for some time even after the power switch trigger has been released! Wait until the cutting accessories come to a complete stop before you put the machine dow. Speed switch The machine has two speed options, high speed (8000 RPM) and low speed (6000 RPM).
Page 21 Adjusting chain lubrication When cutting dry or hard species of wood it may be Oil Pump necessary to increase lubrication. Turn the Oil pump Adjuster adjuster anticlockwise to increase the oil ﬂow. Remember that this will increase oil consumption. Turn the adjuster screw clockwise to decrease the oil ﬂow.
Page 22 Basic working techniques – Hold the machine as close to your body as possible to get the best balance. – Make sure that the tip does not touch the ground. – Do not rush the work, but work steadily until all the branches have been cut back cleanly.
Page 23: Maintenance And Repair
– Only use original spare parts. Parts that are not of the same quality can seriously damage the equipment and compromise safety. – If your machine has a malfunction, is damaged, or requires servicing: Contact PRORUN Customer Service. • Sharpening/Replacing the Saw Chain 1.For smooth and safe operation, always keep the Saw Chain cutters sharp.
Page 24 • Servicing and Repairing the Battery. The battery requires no servicing and cannot be repaired. – If the battery has a malfunction or is damaged: Contact PRORUN Customer Service an replace the battery. • • Servicing and Repairing the Charger The charger requires no servicing and cannot be repaired.
Page 25: Transporting, Cleaning, And Storing
12. TRANSPORTING, CLEANING, AND STORING • • Transporting the machine When transporting the machine: – Switch off the machine and remove the battery pack. – When transporting the machine by hand, hold it by the front handle with the chain saw pointing backwards, opposite the direction in witch you are walking.
Page 26: Troubleshooting
Battery is not charged. Charge the battery pack according to the instructions included with your model. Faulty with the machine. Contact PRORUN Customer Service. Motor runs, but trimmer Debris or other may be Remove battery, clear debris blockage from head do not move.
Page 27: Exploded View
15. EXPLODED VIEW...
Page 28 15. EXPLODED VIEW DESCRIPTION QTY. DESCRIPTION QTY. Upper cover decoration Square neck bolt Motor Front handle Screw ST4*16 Barrier bar Big gear wheel Locking knob Small gear wheel Driver shaft Driver shaft Circlip external circlips Connecting shaft Ball bearing screw M4*10 Bearing sleeve Clamping cap Bearing...
Page 29 15. EXPLODED VIEW...
Page 30 14. EXPLODED VIEW DESCRIPTION QTY. DESCRIPTION QTY. Bearing Oil ﬁller Rubber sleeve Bearing 627 Driver shaft Transmission gear Front aluminum tube Output shaft Tension screw Turbine E ring 5 Bearing 6001 Tension block Bearing spacer Double end studs M6×30 Saw chain Sprocket 3/8"...
Page 31 PRORUN regularly improves our products, and you may ﬁnd slight diﬀerences between your machine and the descriptions contained within this operator's manual. Modiﬁcations can be made to the machine without notice and without the obligation to update the manual, providing that the essential safety and functional characteristics remain unaltered.
