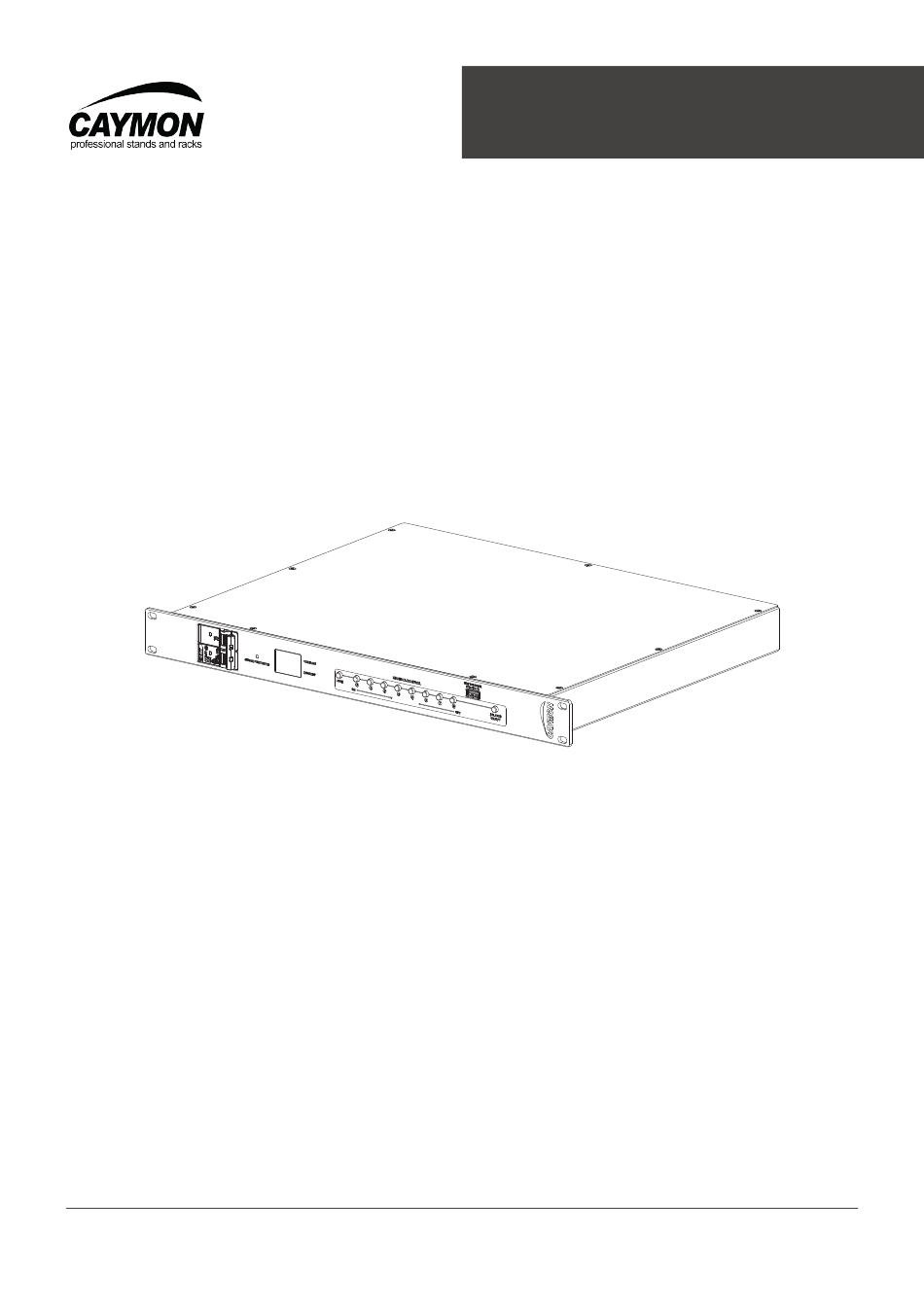

- Page 1 Hardware Feature Manual PSQ108 caymon.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the CAYMON website @ caymon.eu. REV-1.0...
-
Page 3: Table Of Contents
Factory reset ................. . . 13 Technical specifications PSQ108 - Hardware Feature Manual... -
Page 4: Introduction
Introduction Intelligent power sequencer The PSQ108 is an intelligent power sequencer with 8 x IEC C13 outputs which can be remotely switched using AUDAC Touch™ via TCP/IP or RS-232 connection. It also features front controls for manual control. Several PSQ108 devices can be daisy chained together so that only one IP address is needed for controlling all units. -
Page 5: Precautions
This will make sure that it will be recycled in an environmentally friendly manner, and will help to protect the environment in which we all live. PSQ108 - Hardware Feature Manual... - Page 6 Denmark: Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver forbindelse til stikproppens jord. Finland: Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan. Norway: Apparatet må tilkoples jordet stikkontakt. Sweden: Apparaten skall anslutas till jordat uttag. PSQ108 - Hardware Feature Manual...
-
Page 7: Connections And Connectors
Chapter 1 Connections CONNECTION STANDARDS The in- and output connections for CAYMON equipment are performed according to international wiring standards for professional audio equipment. RS232/485 port (RJ45) Pin 1 White-Orange RS232 RxD Pin 2 Orange RS232 TxD Pin 3 White-Green... -
Page 8: Overview Front Panel
Chapter 2 Overview of front panel The PSQ108 front panel offers a basic control of the intelligent power sequencer and monitoring. An extensive custom configuration and remote control can be done on AUDAC Touch™. Circuit breaker USB charger Voltage and current display... -
Page 9: Overview Rear Panel
AC power outputs (IEC C13) 1) Link ports Up to 20 PSQ108 intelligent power sequencer devices can be daisy chained using link ports. Each RJ45 socket can be either an input or an output. 2) Ethernet port An ethernet port is available for TCP/IP control. PSQ108 has 5 WebSockets available for remote control. -
Page 10: Control Screen
ASCII commands are available on the product page for third-party control. Control screen Control screen of the PSQ108 has buttons for delayed on, delayed off and individual relay toggle. It also shows the voltage and current draw reading and the surge protection status. -
Page 11: Device Settings
Changes the default name of the PSQ108 that appears on the device list of AUDAC Touch™. Device address The default device address of the PSQ108 is C001 and the addressing range is 001- 999. The device address is important for delivering the ASCII command to the right device (e.g. delayed power on ASCII... -
Page 12: Power Sequencer Settings
Power Sequencer settings Device power-on action Delayed-on feature of the PSQ108 can be enabled or disabled in this dropdown menu. The device will either perform the delayed on sequence according to the configuration in the delay settings or it will perform no action.Power-on action is delayed on by default. -
Page 13: Network Settings
Network settings The network settings of PSQ108 can be changed in the network tab of the side menu. DHCP is not sup- ported and the default IP address is 192.168.0.181. Factory reset Factory reset without IP address settings Press LOCK + output 2 + DELAY ON/OFF simultaneously for 10 seconds This operation resets the device address, relay status, delay on/off times, delay on/off enable and power on setting. -
Page 14: Technical Specifications
100 - 250 V AC ~ 50/60 Hz 10 A / 2500 W (per output) Total power all outputs combined: 4000 W Power handling: 5V DC / 1A Max Connection Male Schuko (CEE 7/7) input connection Cable length 2.5 m PSQ108 - Hardware Feature Manual... - Page 15 PSQ108 - Hardware Feature Manual...
- Page 16 Discover more on caymon.eu...
