LockMasters LM101 User Manual

Battery Powered Photocell User Manual
Item No.: LM101
Thank you for purchasing the battery powered photocell (LM101). It can be easily installed
because of its special power supply design for emitter, only use 2*AA dry battery. The photocell
also integrates an Internal Rotation system that the angel of the beam can be adjusted from 0
to180°. These advantages make the unit ideal for fixing to a moving leaf of gate or wherever it is
difficult to get cabling to the emitter.
Specifications
Working Voltage: 12-24VAC/DC
Battery type :2*1.5V,AA Dry for emitter
Working Current: emitter: ≤65uA, receiver: ≤40mA
Sensing Range: ≥40 Feet (12 m)
Internal Rotation system adjusted angel: 0-180° Wiring Connection with DSR/DSC 600/1000S sliding gate opener
Working temperature: -20℃-60℃
Output Relay contact loading Capacity: 1A/30VDC
Protection Degree: IP54
Product Size: 128*50*32 mm
Wiring Connection

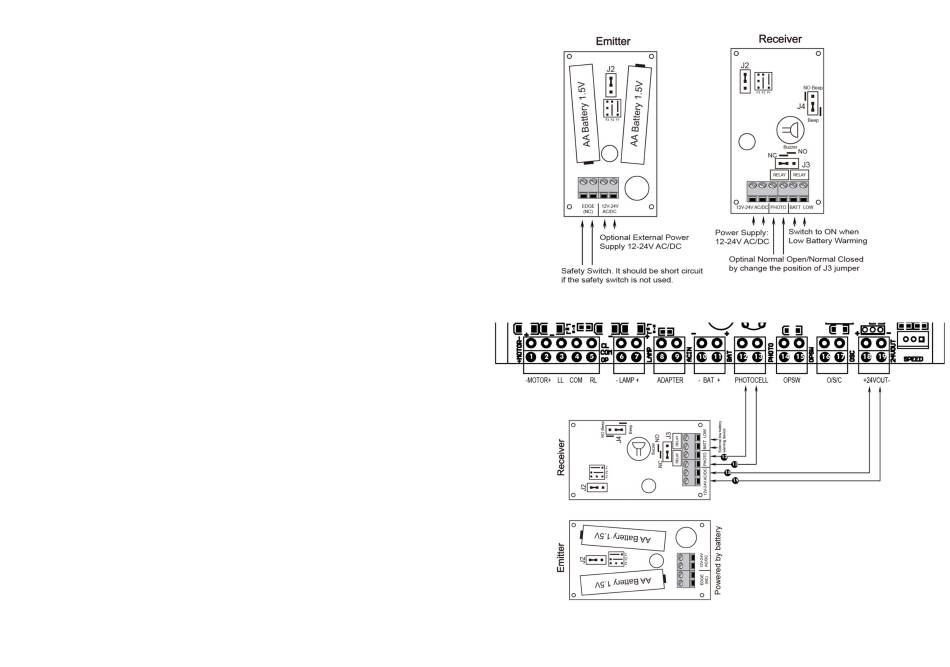

Diagram below is to describe the function of the output terminals, the jumpers and the
other key components.
J2: Option for the frequency of the receiver and transmitter. Factory default setting is F1.
Notice：Emitter and receiver must be in the same frequency
J3: Option for output type of the photo, Normal Open or Normal Closed. Factory default
setting is NC.
J4: Option for buzzer warning for beam broken & battery low voltage, enabled or disabled.
Factory default setting is enabled.
BATT LOW Terminal : Connection for external low battery warning device.
Definition of the other terminals please refers to the below diagram.
