  • Page 2 MICROWAVE OVEN SERVICE MANUAL MODEL : MS-113YG CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS This device is to be serviced only by properly qualified service personnel. Consult the service manual for proper service procedures to assure continued safety operation and for precautions to be taken to avoid possible exposure to excessive microwave energy. PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY...

  • Page 4: Table Of Contents

    CONTENTS (Page) SAFETY PRECAUTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Inside front cover SPECIFICATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1 CAUTIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1 INSTALLATIONS - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1...

  • Page 5: Specifications

    SPECIFICATIONS ITEM DESCRIPTION MS-113YD MODEL 120 Volts AC 60 Hz Power Requirement 1,500 Watts (13 A) Single phase, 3 wire grounded 1,100 Watts full microwave power (IEC705) Power Output 2,450 MHz Microwave Frequency 2M246 Magnetron 0 ~ 99 min. 99 sec. Timer ”...

  • Page 6: Cautions

    CAUTIONS Unlike other appliances, the microwave oven is MICROWAVE RADIATION high-voltage and high-current equipment. Personnel should not be exposed to the Though it is free from danger in ordinary use, microwave energy which may radiate from the extreme care should be taken during repair. magnetron or other microwave generating device if it is improperly used or connection.

  • Page 7: Installations

    INSTALLATIONS BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY. INSTALLING GROUNDING INSTRUCTIONS 1. Empty the microwave oven and clean inside it with For personal safety, this appliance must be fully a soft, damp cloth. Check for damage such as grounded at all times.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS FEATURES Oven Front Plate Window Door Screen Door Seal Display Window Control Panel Safety Door Lock System Turntable Rotating Ring CONTROL PANEL 4. CLOCK. Touch this pad to enter the time of day. 5. TIMER. Touch this pad to use your microwave oven as a kitchen timer.

  • Page 9: Operating Sequence

    OPERATING SEQUENCE 7. AUTO DEFROST COOKING The following is a description of component functions during oven operation. STOP/ AUTO NUMBER OF NUMBER START CLEAR DEFROST CATEGORY OF WEIGHT 1. SETTING THE CLOCK 8. CHILD LOCK STOP/CLEAR CLOCK NUMBER CLOCK This oven has a CHILD LOCK feature TO SET CHILD LOCK ex.) To set 4:30, touch number key [4],[3], and [0].

  • Page 10: Schematic Diagram

    SCHEMATIC DIAGRAM...

  • Page 11: Circuit Description

    CIRCUIT DESCRIPTION • A high voltage of approximately 2100 volts AC is GENERAL DETAILS generated in the secondary of the high voltage • The low voltage transformer supplies the necessary transformer which is increased by the action of the high voltage to the micom controller when power cord is voltage diode and charging of the high voltage plugged in.

  • Page 12: Service Information

    SERVICE INFORMATION TOOLS AND MEASURING INSTRUMENTS NECESSARY TOOLS NECESSARY MEASURING INSTRUMENTS Tools normally used for TV servicing are sufficient. • TESTER (VOLTS-DC, AC, Ohmmeter) Standard tools are listed below. • Microwave survey meter • Diagonal pliers - Holaday HI-1500 • Long nose pliers HI-1501 •...
  • Page 13 MEASUREMENT WITH OUTER CASE NOTES WHEN MEASURING REMOVED • Do not exceed meter full scale deflection. • The test probe must be removed no faster than • When you replace the magnetron, measure for 1 inch/sec (2.5 cm/sec) along the shaded area, microwave energy leakage before the outer case is otherwise a false reading may result.

  • Page 14: Measurement Of Microwave Power Output

    MEASUREMENT OF MICROWAVE POWER OUTPUT • Microwave power output measurement is made with • The microwave power output P in watts is calculated the microwave oven supplied at its rated voltage and from the following formula : operated at its maximum microwave power setting with 4187 x (∆T) a load of (1000±5) g of potable water.
  • Page 15 D. PCB ASSEMBLY REMOVAL Remove choke cover 1) Remove the control panel assembly from the cavity. (Refer to control panel assembly removal on previous page.) 2) Remove screws which hold the PCB SUB ASS’Y to the control panel. 3) Disconnect the flat cable from the PCB SUB ASS’Y and take off the PCB SUB ASS’Y Control Panel PCB Sub Asm...
  • Page 16 F. AIR DUCT ASSEMBLY REMOVAL H. REMOVING THE TURNTABLE MOTOR 1) Remove the turntable and rotating ring. 1) Disconnect the leadwire from the lamp. 2) Lay the unit down on its back. 2) Remove the mounting screw to the oven cavity. 3) Remove the turntable motor cover.
  • Page 17 I. HIGH VOLTAGE TRANSFORMER L. INTERLOCK SYSTEM 1) INTERLOCK MECHANISM REMOVAL The door lock mechanism is a device which has 1) Discharge the high voltage capacitor. been specially designed to eliminate completely 2) Disconnect the leadwire from magnetron, high voltage microwave activity when the door is opened during transformer, and capacitor.

  • Page 18: Interlock Continuity Test

    INTERLOCK CONTINUITY TEST WARNING : FOR CONTINUED PROTECTION AGAINST EXCESSIVE RADIATION EMISSION, REPLACE ONLY WITH IDENTICAL REPLACEMENT PARTS. TYPE NO. SZM-V 16-FA-63 OR VP-533A-OF FOR PRIMARY SWITCH TYPE NO. SZM-V 16-FA-62 OR VP-532A-OF FOR MONITOR SWITCH TYPE NO. SZM-V 16-FA-63 OR VP-533A-OF FOR SECONDARY SWITCH B.

  • Page 19: Component Test Procedure

    COMPONENT TEST PROCEDURE CAUTIONS 1. DISCONNECT THE POWER SUPPLY CORD FROM THE OUTLET WHENEVER REMOVING THE OUTER CASE FROM THE UNIT. PROCEED WITH THE TEST ONLY AFTER DISCHARGING THE HIGH VOLTAGE CAPACITOR AND REMOVING THE WIRE LEADS FROM THE PRIMARY WINDING OF THE HIGH VOLTAGE TRANSFORMER.
  • Page 20 COMPONENTS TEST PROCEDURE RESULTS Antenna Gasket Chassis Filament NOTE: When testing the magnetron, be sure to install the magnetron gasket in the correct position and be sure that the gasket is in good condition. HIGH VOLTAGE Measure the resistance. Normal: Momentarily indicates CAPACITOR (Ohm-meter scale: Rx1000) several ohms, and...
  • Page 21 COMPONENTS TEST PROCEDURE RESULTS Check for continuity of relay 2 with an RELAY 2 POWER ohm-meter. LEVEL (Remove wire leads from relay 2 and operate the unit.) 4 sec 18 sec 6 sec 16 sec 8 sec 14 sec 10 sec 12 sec 12 sec 10 sec...

  • Page 22: Trouble Shooting

    TROUBLE SHOOTING WHEN YOU GET A COMPLAINT FROM YOUR CUSTOMER, EVALUATE THE COMPLAINT CAREFULLY. IF THE FOLLOWING SYMPTOMS APPLY, PLEASE INSTRUCT THE CUSTOMER IN THE PROPER USE OF THE MICROWAVE OVEN. THIS CAN ELIMINATE AN UNNECESSARY SERVICE CALL. CAUTIONS 1. Check grounding before checking for trouble. 2.
  • Page 23 (TROUBLE 1) The following visual conditions indicate a probable defective control circuit. 1. Incomplete segments. • Segment missing. • Partial segment missing. • Digit flickering (NOTE: Slight flickering is normal.) 2. Colon does not turn on or blink. 3. A distinct change in the brightness of one or more numbers in display. 4.
  • Page 24 (TROUBLE 2) Oven does not operate at all, Display window does not display any figures, and no input is accepted. CONDITION CHECK RESULT CAUSE REMEDY Malfunction of the Replace fuse, Check continuity 1. Fuse blows. Continuity. monitor switch. primary, monitor, of monitor secondary switch (with...
  • Page 25 (TROUBLE 3) Display shows all figures set, but oven does not start cooking while desired program times are set and START pad is touched. CONDITION CHECK RESULT CAUSE REMEDY Defective Replace Check continuity 1. Setting time No continuity. secondary switch. secondary switch.
  • Page 26 (TROUBLE 5) No microwave oscillation even though oven lamp and fan motor run. (Display operates properly) CONDITION CHECK RESULT CAUSE REMEDY No microwave Defective PCB Replace PCB Disconnect the No continuity. oscillation. assembly. assembly. wire leads from relay 2 and check continuity Continuity.

  • Page 27: Exploded View

    EXPLODED VIEW INTRODUCTION OVEN CAVITY PARTS INTERIOR PARTS BASE PLATE PARTS DOOR PARTS LATCH BOARD PARTS CONTROL PANEL PARTS...

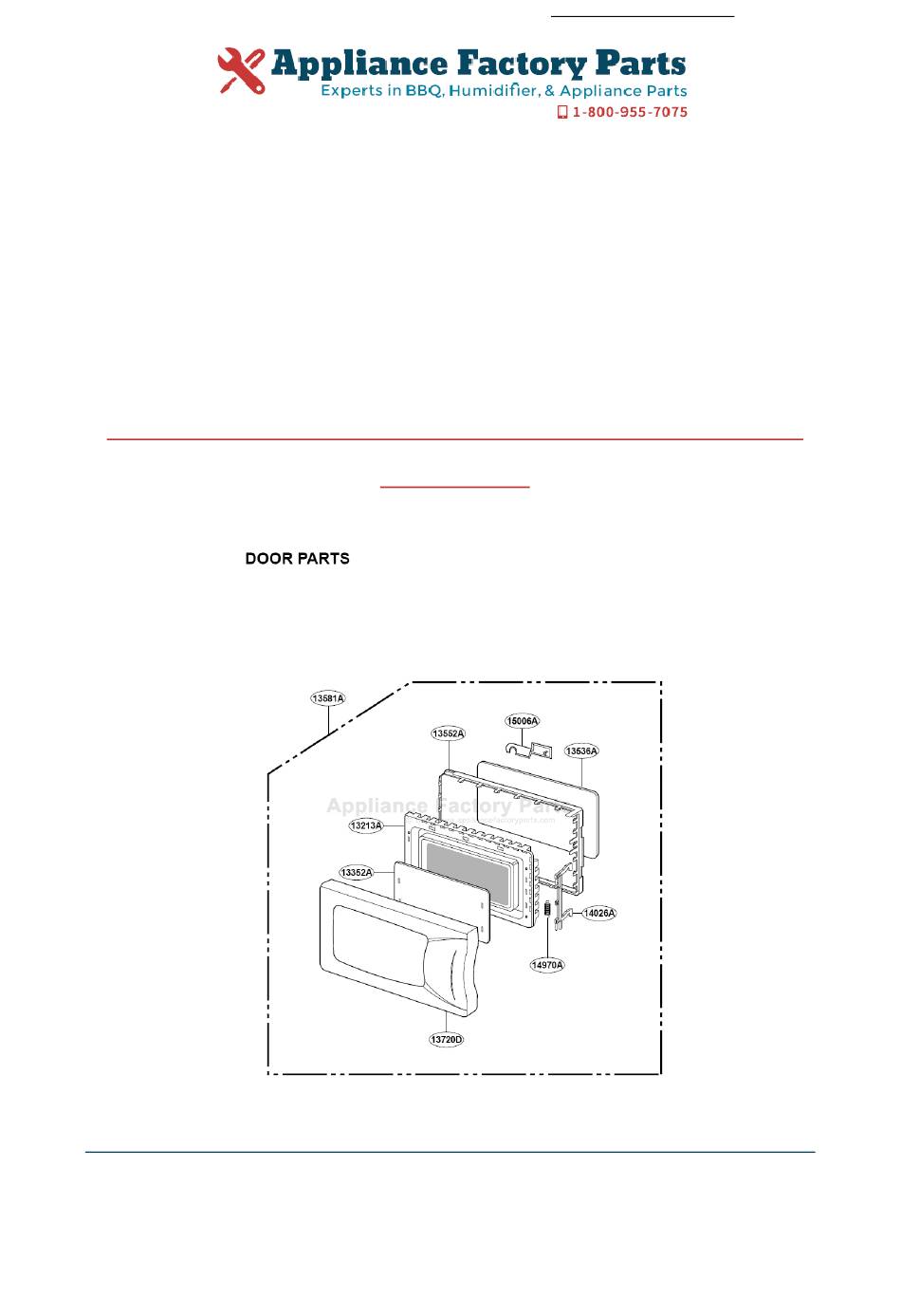

  • Page 28 DOOR PARTS 13581A 15006A 13552A 13536A 13213A 13352A 14026A 14970A 13720D...
  • Page 29 CONTROLLER PARTS 24781M 268711 WTT028 23572A 23550D 26638A WTP018 24510L 24970A 250201...
  • Page 30 OVEN CAVITY PARTS 33112U WTT021 33052A WTT010 WTT020 33390G 34036W 35889A 36549S WTP013...
  • Page 31 LATCH BOARD PARTS WSZ085 466001 43500A 466003 466001...
  • Page 32 INTERIOR PARTS WSZ002 568771 56411A WSZ002 948502 56930V 56201A 50FZZA WTT028 56549F 54974S WSZ002 55900A WTT037 56912B WSZ002 948503 WSZ002 55262A WSZ002 50CZZH 56851D 56324A 948504 WSZ002 WTT028 54810C 56201B...
  • Page 33 BASE PLATE PARTS 63303A 56170D 63302A 948501 647781 WTT028 WSZ002 WTT021...

  • Page 34: Schematic Diagram Of P.c.b

    SCHEMATIC DIAGRAM OF P.C.B.

  • Page 35: Printed Circuit Board

    PRINTED CIRCUIT BOARD...
  • Page 36 Jan, 2001 P/NO : 3828W5S1764 Printed in Korea...
