- Page 1 2019 FuelController FC INSTALLATION MANUAL – LAGOGENESIS SRL VIA SELENIA 1, 36061 BASSANO DEL GRAPPA (VI) T&F 0424 527851 INFO@LAGOGENESIS.IT WWW.LAGOGENESIS.IT...
-
Page 2: Table Of Contents
FuelCONTROLLER – What a setup looks like ................... 5 1.2.1 Using FuelCONTROLLER optional dedicated cable harness (717620010-717620012) ..... 6 FuelCONTROLLER – Installing the FCS Sensors – The practical approach ........7 1.3.1 Fuel Line Fittings ........................7 Connecting the FCS fuel Sensors ....................8 ELECTRICAL CONNECTIONS ..................... - Page 3 FuelCONTROLLER Installation Manual Rev. 2.01 2.2.5.4 TANKS ..........................21 2.2.5.5 CLUSTER INSTRUMENT ....................21 2.2.6 SAVING SETUP ........................22 2.2.7 TRANSFERRING THE SETUP TO FUELCONTROLLER ............22 2.2.8 AVAILABLE DEVICES ......................23 2.2.9 TRANSFERRING ........................23 2.2.10 SET UP CONFIRMATION ....................23 ..........................24 IAGNOSTICS 2.3.1...
-
Page 4: System

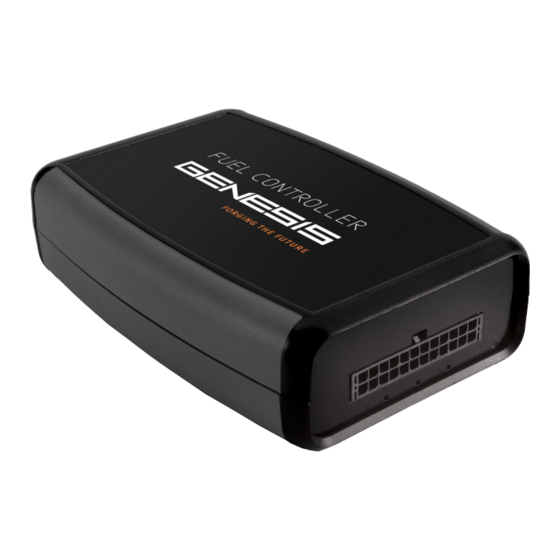

1 SYSTEM FuelCONTROLLER is a system made up of an Electronic control unit and one or two FCS fuel sensors. The fuel sensors read the level of fuel which is in the tank(s) and provides this information to the dedicated Electronic control unit, which applies algorithms to the data, generating valuable information which it then sends to the GPS/GSM telematics device on board. -
Page 5: Fuelcontroller Sensor - Fcs Sensor
It is made to interface with third party telematics systems and is designed from the onset as a part of the existing Genesis system of products, such as smart fuel caps, anti-siphon devices and more. FuelCONTROLLER, once installed, is configured using a dedicated App on an android device. -
Page 6: Fuelcontroller - What A Setup Looks Like
FuelCONTROLLER Installation Manual Rev. 2.01 FuelCONTROLLER – What a setup looks like LagoGENESIS reserves the right to make any change or improvement to their products and to this document at any time and without any prior notification. – LAGOGENESIS SRL VIA SELENIA 1, 36061 BASSANO DEL GRAPPA (VI) T&F 0424 527851 INFO@LAGOGENESIS.IT... -
Page 7: Using Fuelcontroller Optional Dedicated Cable Harness (717620010-717620012)
FuelCONTROLLER Installation Manual Rev. 2.01 1.2.1 Using FuelCONTROLLER optional dedicated cable harness (717620010-717620012) 1.2.1.1 Main/Primary tank 1.2.1.2 Secondary tank The above figures are extracts from each extension cable instructions. Please refer to the original instructions included with each product. LagoGENESIS reserves the right to make any change or improvement to their products and to this document at any time and without any prior notification. -
Page 8: Fuelcontroller - Installing The Fcs Sensors - The Practical Approach
FuelCONTROLLER Installation Manual Rev. 2.01 1.3 FuelCONTROLLER – Installing the FCS Sensors – The practical approach 1.3.1 Fuel Line Fittings FuelCONTROLLER Sensors can be fitted with any number of specific fittings which allow you to connect the original fuel lines of the vehicle directly to the fuel sensor/sender without making any modification to the fuel lines themselves (ref. -
Page 9: Connecting The Fcs Fuel Sensors
(+) signal and connects to Pin 13 or 14 (main and secondary tanks respectively) of the FuelController electronic control unit. Pin 2 on the FCS sensor is the negative (-) and connects to Pin 1 or 2 (main and secondary tanks respectively) of the FuelController electronic control unit. -
Page 10: Electrical Connections
FuelCONTROLLER Installation Manual Rev. 2.01 1.5 ELECTRICAL CONNECTIONS 1.5.1 ELECTRICAL CONNECTOR PIN OUT RS232 OUTPUT VERSION Description Cable Wire Colour Function Negative signal FCS 1 Black cable Fuel INTSENS1- Brown (to be connected to the Pin 2 of the main tank’s fuel... -
Page 11: Schematics Rs232
FuelCONTROLLER Installation Manual Rev. 2.01 1.5.2 SCHEMATICS RS232 1.5.3 The phases of installation Before powering up the Electronic Control Unit, make sure you have made the following connections: 1. Connect the BLACK wire (Pin 24) to the vehicle GND 2. Connect the RED wire (Pin 12) to the positive +30 power of the vehicle. It is advisable to protect this circuit introducing a 5 Amp fuse. -
Page 12: Electrical Connector Pin Out Rs485 Output Version
FuelCONTROLLER Installation Manual Rev. 2.01 1.5.4 ELECTRICAL CONNECTOR PIN OUT RS485 OUTPUT VERSION Description Cable Wire Colour Function Negative signal FCS 1 Black cable Fuel INTSENS1- Brown (to be connected to the Pin 2 of the main tank’s fuel Sensor FCS 1... -
Page 13: Schematics Rs485
FuelCONTROLLER Installation Manual Rev. 2.01 1.5.5 SCHEMATICS RS485 1.5.6 The phases of installation Before powering the hub, please ensure all connections are completed. 1. Connect the black wire (pin 24) to the vehicle GND. 2. Connect the red wire (pin 12) to the positive (+) +30 of the vehicle, possibly protecting the circuit with a 5Amp fuse. -
Page 14: Programming Using The Fuel Controller App
FuelCONTROLLER Installation Manual Rev. 2.01 2 PROGRAMMING USING THE FUEL CONTROLLER APP 2.1 Getting Started The FuelController APP allows communication between an Adroid device and Fuel Controller, via the Bluetooth channel. The APP diverse functions each address specific functions: •... -
Page 15: Navigation Map Of The Fuelcontroller Application
FuelCONTROLLER Installation Manual Rev. 2.01 2.1.1 NAVIGATION MAP of the FuelCONTROLLER APPLICATION LOGIN REGISTRATION HOME READ ZIPPER SET RESISTOR CONNECTION DIAGNOSTIC CONNECTION SETUPS LIST (firmware and updates) GET VALUES TEST RS485 RECUPERATE COPY QUESTION RENAME TRANSFER COPY CONNECTION FUEL PUMP... -
Page 16: Getting Started
FuelCONTROLLER Installation Manual Rev. 2.01 2.1.2 Getting Started Once started, the APP will ask USERNAME and PASSWORD, which you should have been provided after your registration. N.B - A reliable network connection is necessary when starting the App. Each time the App is restarted, the necessary updates will take place automatically. -
Page 17: Firmware Update
2.1.5 PAIRING WITH FUEL CONTROLLER Select the device from the list of visible ones The compatible device names always start with FuelCONTROLLER..NOTE The first time you are searching the device, should be that the name isn’t in the list. In this case, after scanning ends select RESCAN and wait. -
Page 18: Transferring Firmware To Fuel Controller
At the end of the update if everything is OK, you will see the message UPDATE COMPLETED SUCCESSFULLY. After update FuelCONTROLLER hardware will restart automatically. LagoGENESIS reserves the right to make any change or improvement to their products and to this document at any time and without any prior notification. -
Page 19: Selecting An Existing Setup
2.2.2 TRANSFERRING SETUP TO FUEL CONTROLLER Once an existing setup is highlighted it is possible to use it to program FuelCONTROLLER by pressing TRANSFER. On the other hand, it can be modified by pressing EDIT, before transferring it to the FuelCONTROLLER. -
Page 20: Creating A New Setup
FuelCONTROLLER Installation Manual Rev. 2.01 2.2.3 CREATING A NEW SETUP In the Configuration Menu you will find all of the specific setups saved under your username. Each setup is identified by the registration of the vehicle which it belongs You can create a new setup by pressing NEW, or you can select an existing one by highlighting it and pressing CONFIRM. -
Page 21: New Setup - Copy Existing
FuelCONTROLLER Installation Manual Rev. 2.01 2.2.4 NEW SETUP – COPY EXISTING If you have chosen to create a new setup by copying the parameters of an existing one, you will be asked to choose the name of the setup you want to copy. -
Page 22: General Parameters
FuelCONTROLLER Installation Manual Rev. 2.01 2.2.5.3 GENERAL PARAMETERS From this screen you can set: • the number of tanks • if the tanks are connected by a fuel pump (generally only relevant for DAF twin tank vehicles). N.B. This option requires a specific ECU. -
Page 23: Saving Setup
Input the registration number and chassis number of the vehicle and press CONFIRM. 2.2.7 TRANSFERRING THE SETUP TO FUELCONTROLLER At this point the SETUP can be used to program the FuelController Electronic Control Unit by pressing TRANSFER or EDIT to further modify it before transferring. -
Page 24: Available Devices
If you cannot find your device in the list, press RESCAN and wait for it to appear. At fist connection with each FuelCONTROLLER, you will be asked to insert the PIN number provided with the FuelCONTROLLER itself. 2.2.9... -
Page 25: Diagnostics
RESCAN and wait for it to appear. At fist connection with each FuelCONTROLLER, you will be asked to insert the PIN number provided with the FuelCONTROLLER itself. LagoGENESIS reserves the right to make any change or improvement to their products and to this document at any time and without any prior notification. -
Page 26: Type Of Diagnostic
FuelCONTROLLER Installation Manual Rev. 2.01 2.3.2 TYPE OF DIAGNOSTIC Select the type of diagnostics you would like to execute and press CONFIRM. 2.4.3 GET VALUES If you have chosen GET VALUES you will see a screen where there are: •... -
Page 27: Set Resistor
FuelCONTROLLER Installation Manual Rev. 2.01 2.4.4 SET RESISTOR From this screen it is possible to modify the resistive pattern output to the cluster instrument. Select MAIN or SECONDARY. Select the OHM value and press CONFIRM 2.4.5 READ ZIPPER CODE From this screen it is possible to read the RF code outputted by the ZIPPER fuel cap when present. - Page 28 FuelCONTROLLER Installation Manual Rev. 2.01 Fuel Controller is Certified according to regulation ECE R10-05. Certification No. E49 10R – 050066 CE LagoGENESIS reserves the right to make any change or improvement to their products and to this document at any time and without any prior notification.
