- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS PowerPlex Web Server WS300 ®...
- Page 2 COPYRIGHT ©2024 E-T-A GMBH The contents of this document is the property of E-T-A GmbH. No part of this publication must in any we be reproduced or distributed without prior written consent of E-T-A GmbH. Any person acting illegally with regard to this publication can be prosecuted.
- Page 3 The instruction is meant to be used by all professional electricians who want to integrate this module into an E-T-A PowerPlex ® system. ® Besides this document further information on the E-T-A PowerPlex can be found on E-T-A’s Website. ® All manuals contain important instructions for connection and safe operation of the PowerPlex devices. Safety instructions have to be observed.
- Page 4 Please follow the installation and configuration instructions given in this document carefully. Failure to comply may lead to serious damages of the product or the system. E-T-A is unable to accept responsibility for customer or third-party liability, warranty claims or damage caused by incorrect...
-
Page 5: Table Of Contents
CONTENT LIST OF PICTURES LIST OF TABLES SYMBOLS 1. INTRODUCTION 2. SYSTEM COMPONENTS: OVERVIEW 3. PowerPlex ® SYSTEM: GENERAL ® 3.1. PowerPlex Modules ® 3.2. PowerPlex CAN BUS 3.3. Noting the serial numbers 3.4. The module CAN bus address 3.5. Integration in the CAN bus network ®... -
Page 6: List Of Pictures
LIST OF PICTURES Fig. 1: Exemplary system design – recreational vehicle ..................8 Fig. 2: Exemplary system design – boat ......................... 8 ® Fig. 3: Overview of PowerPlex components ......................9 Fig. 4: Two PowerPlex ® modules connected via CAN bus cable ................. 12 ®... -
Page 7: Introduction
Watercraft, e.g. leisure boats, workboats Benefits for the OEM ® The E-T-A PowerPlex system allows switching and controlling of various loads, timer functions, real load status indication, overcurrent protection and wire break detection. Each function can be configured separately to meet the requirements of the loads. -
Page 8: System Components: Overview
2. SYSTEM COMPONENTS: OVERVIEW ® The PowerPlex system of E-T-A is a comprehensive on-board system combining safety, convenience and reliability. PowerPlex ® allows individual and flexible concepts of switching the illumination, acoustic and special signals and lots more. It automatically switches loads and immediately indicates undesired conditions of the devices or of the entire electrical installation. - Page 9 ® PowerPlex communication is based on the CAN bus principle by means of “nodes”, which communicate with each other via a serial 2-wire connection. Hence the key components of a PowerPlex ® system are these nodes ® distributed over the vehicle or boat. The overall PowerPlex term for these interconnected nodes is “module".
-
Page 10: Table 1: Additional Accessories
12 V DC or 24 V DC battery voltage supply Line protection ® Protection of the L (+) connection from a PowerPlex module to the battery or to the CAN bus. Recommendation: Thermal-magnetic E-T-A 8345 circuit breaker type. Table 1: Additional accessories... -
Page 11: Powerplex System: General
The modules are free of mechanical components and thus insusceptible to wear and shock and vibration resistant. E-T-A offers various PowerPlex ® modules for DC 12 V and DC 24 V systems. Table 2 gives an example of the difference between two modules. - Page 12 ® Fig. 4: Two PowerPlex modules connected via CAN bus cable The example demonstrates the principle of using the sensor and switching signal information at the module inputs as well as the sending, switching or the display of commands to the outputs of the same or a another module. ®...
-
Page 13: Noting The Serial Numbers
3.3. Noting the serial numbers ® ® Each PowerPlex component has a unique serial number. Before mounting the PowerPlex modules, we recommend to prepare a list. This list should include: PowerPlex ® component (module type), pertinent serial number and installation area. ®... -
Page 14: Powerplex ® System Undervoltage Protection
A CAN bus cable typically is a twisted pair cable with two wires, CAN-H and CAN-L, and shield SHLD. Table 3 lists the most important properties which the CAN bus cable to be used should have. They correspond to a typical CAN bus cable. -
Page 15: General: Powerplex ® Web Server Ws300

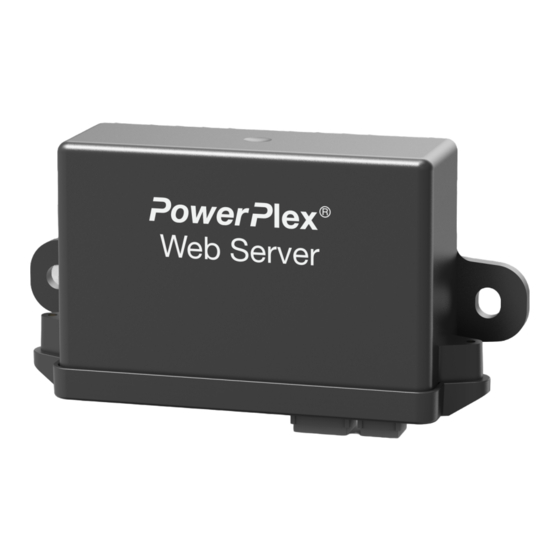

® 4. GENERAL: PowerPlex WEB SERVER WS300 Growing demands regarding safety and convenience lead to the installation of more and more electrical loads in vehicles and boats. The PowerPlex ® Web Server (Fig. 7) provides display, monitoring and control of a ®... -
Page 16: Scope Of Delivery
4.2. Scope of delivery ® Standard scope of delivery of the PowerPlex Web Server WS300 is without accessories. For completion we recommend the following accessories: • XPP-USBC0 USB/CAN converter: XPP-USBC1 (opto-decoupled) • XPP-CP-110 Connection package: (contains 4-pole and 6-pole connector casing, 10 x crimp terminal 16 AWG (1.31 mm²)) 4.3. -
Page 17: Mounting
5. MOUNTING ® The PowerPlex WS300 has been designed for stationary installation. We recommend to install the web server in close proximity to the devices which should control the PowerPlex ® system. 5.1. Installation check list ® When planning and installing the PowerPlex system please observe the limited number of system components. -
Page 18: General Notes On Wiring
5.3. General notes on wiring The selection of the correct cable types is important for the reliable power distribution, control and monitoring by means of a PowerPlex ® system. Please ensure to use cables of superior quality with the suitable cross sections to avoid voltage drops. -
Page 19: Dimensions And Space Requirements
All cables are connected to the module from below. This has to be considered in the planning stage and ensures ease of mounting, preventing a possible kinking of the cables. 5.5. Dimensions and space requirements According to EMC conditions there must always be sufficient space between the different electrical devices. Space requirement of a device depends on its dimensions shown in Fig. -
Page 20: Pin Assignment
5.7. Pin assignment ® Fig. 11: Pin assignment of the PowerPlex WS300 4-pole connection interface assignment voltage supply Batt (DC 12 V/24V, DC 9 … 32 V)) Batt not used RS485 RS485 Table 9: Pin assignment on the 4-pole connector 6-pole connection interface assignment... -
Page 21: Connection To Power Supply
6. CONNECTION TO POWER SUPPLY ® After interconnecting all PowerPlex components of your system via a CAN bus cable, the installation only has to be connected to electrical power supply. PowerPlex ® is suitable for both DC 12 V and DC 24 V. Caution •... -
Page 22: Powerplex ® Configuration Software
® The PowerPlex Configuration Software can directly be downloaded from E-T-A’s Website. A username and a password are required which will be assigned upon request. On demand the configuration software can also be made available on a USB flash drive. No further entries are required during the installation process. The ®... -
Page 23: Can/Usb Converter And Driver
Technical accuracy All technical data in this manual were correct in all conscience at the time of printing. E-T-A cannot be held liable for any (inadvertent) errors. Due to continuous product improvements at E-T-A there could be discrepancies between the actual product and the manual. - Page 24 E-T-A Elektrotechnische Apparate GmbH Industriestraße 2-8 90518 Altdorf Tel. 09187 10-0 Fax 09187 10-397 E-Mail: info@e-t-a.de...
