ITC VersiControl Smart System Plus - RV-C Installation Instructions

VersiControl Smart
System Plus - RV-C
Part#: 2300X-KKKK-RV-01
Safety Instructions
• Disconnect power before installing, adding or changing any component.
• To avoid a hazard to children, account for all parts and destroy all packing materials.
• Do not install any luminaire assembly closer than 6" from any combustible materials.
• Positive (+) outputs require a fuse if the attached wire leads are not rated to handle the max current.
• This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference
- This device must accept any interferences received, including interference that may cause undesired operation
Mating Connectors
RV-C
DT06-4S

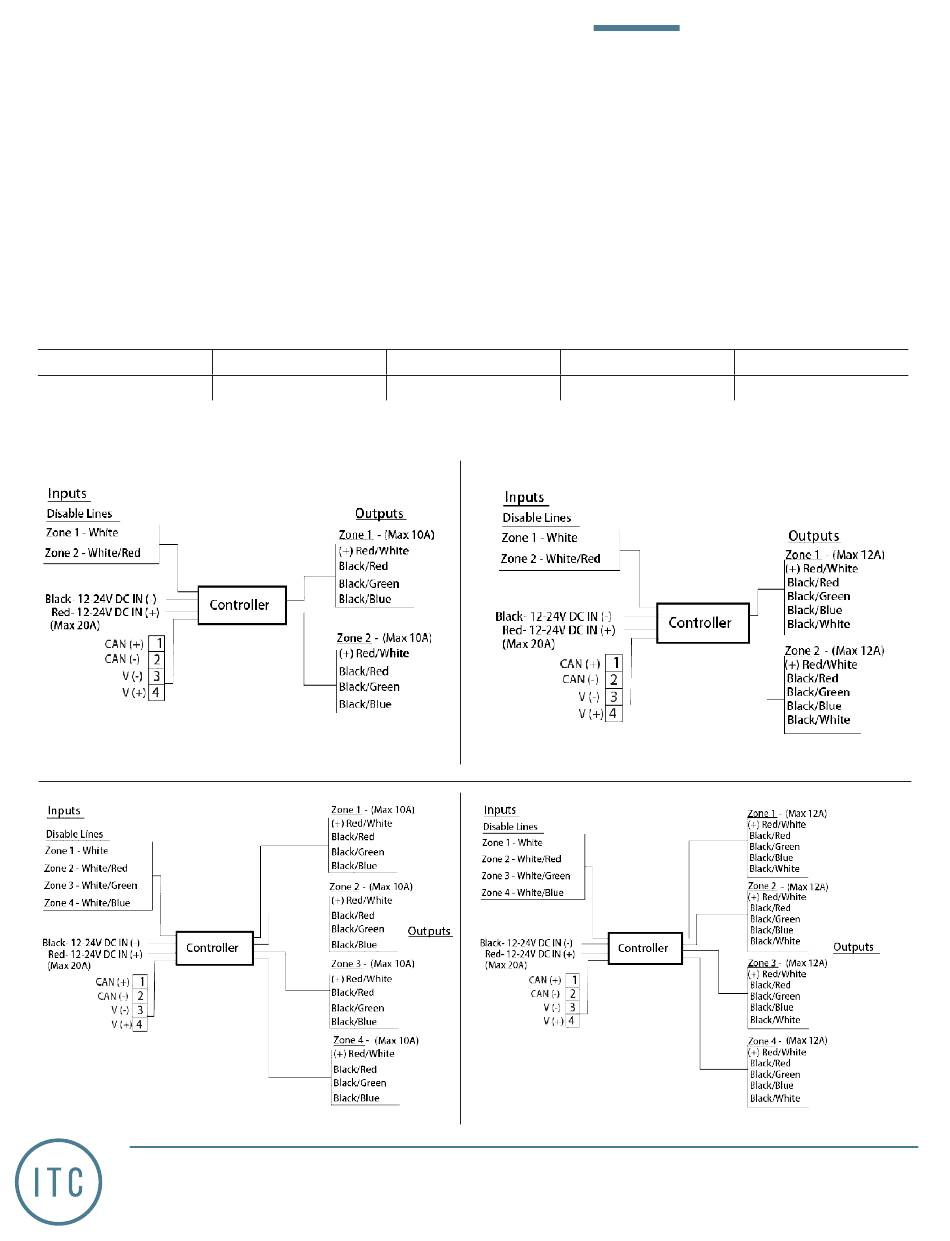

WIRING DIAGRAMS: Follow the wiring diagram below to wire the module to your system. Note: Maximum replacement
fuse size is 20 amps.
23002-RGB-RV-01 - Two Standard RGB Zones
23004-RGB-RV-01 - Four Standard RGB Zones
3030 Corporate Grove Dr.
Hudsonville, MI 49426
Phone: 616.396.1355
itc-us.com
Power Wires
DTP06-2S
For warranty information please visit www.itc-us.com/warranty-return-policy
INSTALLATION INSTRUCTIONS
RGB Wires RGBW Wires
DT04-4P
23002-RGBW-RV-01 - Two Standard RGBW Zones
23004-RGBW-RV-01 - Four Standard RGBW Zones
Addressable Wires
DT04-6P DT04-3P
Rev A • 07/16/24
Page 1 of 2
