Summary of Contents for CTC Union FRM220-OAB15

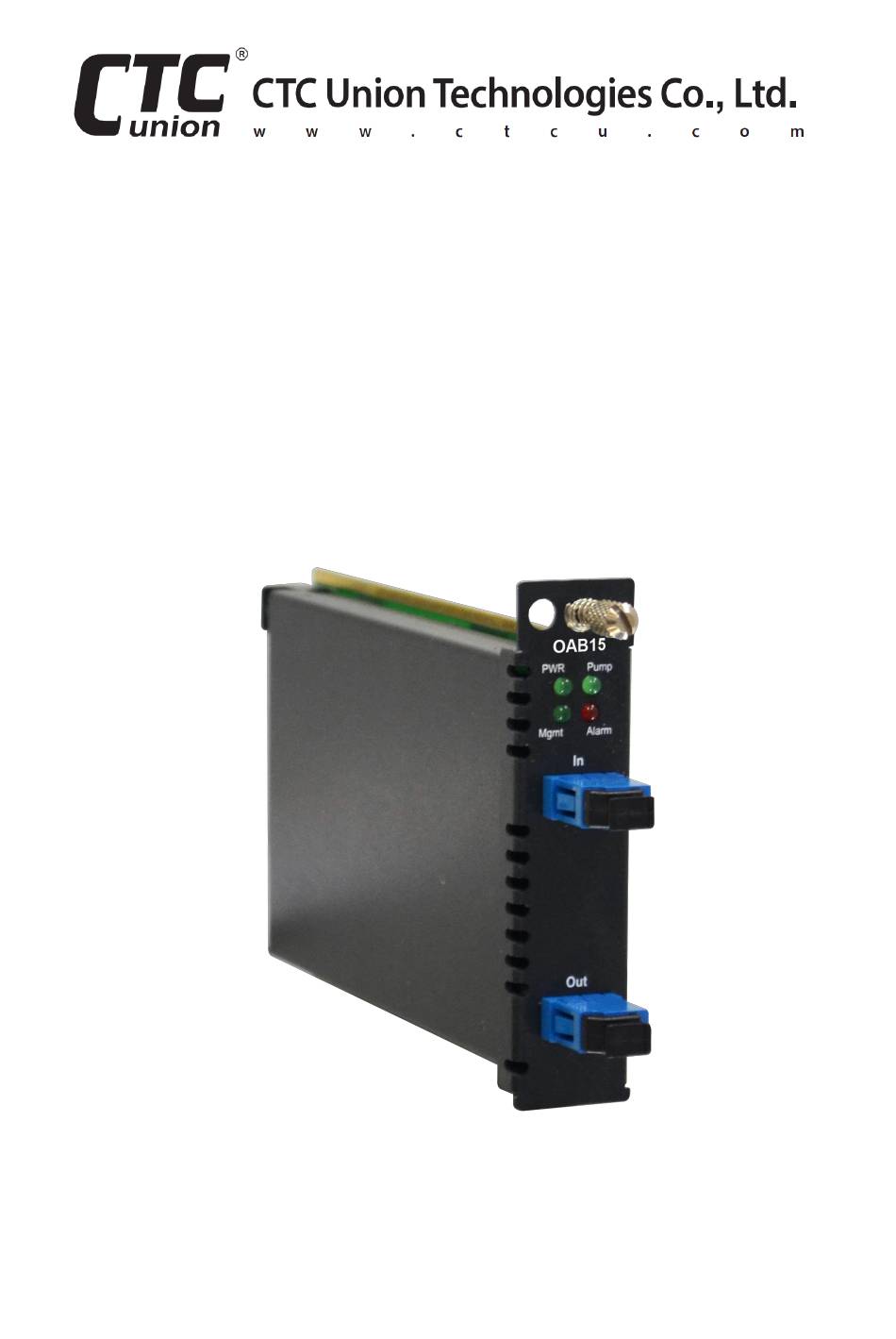

- Page 1 User Guide FRM220-OAB15 Single Channel EDFA Boost NIC sales@ctcu.com...
- Page 2 8F, No. 60, Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2022 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CAUTION! The FRM220-OAB15 card is a Class 1M laser product. While operating, it emits more than 10mW of the invisible laser radiation in the optical band near 1550nm. The direct viewing of the beam emitted from both input and output fiber connector is dangerous for eyes.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Features ..................5 Specifications ................6 Panels ................... 7 LED Indicators ................8 Installation ..................9 Application .................. 10 Management Features ............... 10 Provisioning via a Console Port ..........11 Provisioning via NMC (Web GUI) ..........14 Firmware Upgrading .............. -
Page 5: Introduction
Introduction FRM220-OAB15 is designed for FRM220 chassis rack and is a single channel Erbium Doped Fiber Amplifier (EDFA) booster line card for C- band. FRM220-OAB15 cards can provide more optical power but achieve excellent broadband noise performance while they are used for long- haul C-Band DWDM applications. -
Page 6: Specifications
Specifications Spec. Items Minimum Maximum Remarks Wavelength Bandwidth 1528nm 1562nm Input Power Range -10dBm 0dBm @Input power= Output Power Range +10dBm +15dBm -6~0dBm @-6dBm input Noise Figure 7.0dB with 16dB gain 0.5dB 0.5ps Power Consumption Operating Temp. -5°C +70°C Storage Temp. -20°C +70°C Transportation Temp. -
Page 7: Panels
Panels Captive screw LED indicators Optical input power connector Optical output power connector Figure 1. Front Panel of FRM220-OAB15... -
Page 8: Led Indicators
LED Indicators Color State Status Power on and device enabled Green No Power or device disabled EDFA pump laser is enabled Pump Green EDFA pump laser is disabled Managed by chassis NMC Mgmt Green Without chassis NMC management When one of the following alarms occurs, the Alarm LED is lit in Red: ... -
Page 9: Installation
Installation FRM220-OAB15 line cards can be placed in FRM220-CH01M, FRM220-CH02M, FRM220-CH04A, FRM220-CH08 and FRM220-CH20 chassis that are with universal slots. The line cards can be installed in any of the slots except the slot that is reserved for the NMC management module. -
Page 10: Application
In the figure provided below, it shows that the FRM220-OAB15 card is used in DWDM system that support 4- channel optical sources and increase signals when they travel into optical link. -
Page 11: Provisioning Via A Console Port
"Main Menu" screen. Select the slot number that the card currently resides in. The following diagram shows the Console example of FRM220-OAB15 line card. **************************************** *** CTC UNION TECHNOLOGIES CO., LTD. *** *** FRM220 NMC VER. 5.22 *** ****************************************... - Page 12 Explanation of Console Settings 1. Line Card Information This part displays basic information about the selected card including chassis ID, the slot number, the local or remote side, the model name of the card, and firmware version. 2. Device Information Pump Current: Display the pump current in mA.
- Page 13 4. Function Keys Device Reset: Reboot the device. Set to default: Return values to factory default settings. 5. Output Power Condition LOS (Loss of Signal) Assert: The boost line card supports four signal channels. The number (1, 2, 3, 4) indicates the source of optical signal. When "LOS Assert"...
-
Page 14: Provisioning Via Nmc (Web Gui)
GUI or SNMP. Select this line card from the left pane of the Web GUI. Then, device information and configurable optical output fields will be displayed. Figure 6. FRM220-OAB15 Web Screen via NMC Card Explanation of Web Settings 1. Line Card Information... - Page 15 3. Device Active & Output Power Device Active: Manually enable or disable the line card. Output Power (dBm): Manually set up output power (+10dBm~+15dBm). By default, the optical output power is set to 13.5dBm. ("LOS Assert" fields are set to "None".) The value of this field also changes accordingly depending on the selection of "LOS Assert"...
-
Page 16: Firmware Upgrading
Refresh Status: Reload the current status. Firmware Upgrading The FRM220-OAB15 card may be firmware upgraded when it is placed in the FRM220 with NMC management card. The user may use console connection or a Web based (HTTP) connection with any available browser to the NMC. - Page 17 Manual Release Date Revision Version 2022/6/10 - Preliminary version 2022/7/18 - Reformatting & add CH01M, CH02M, CH04A chassis...
