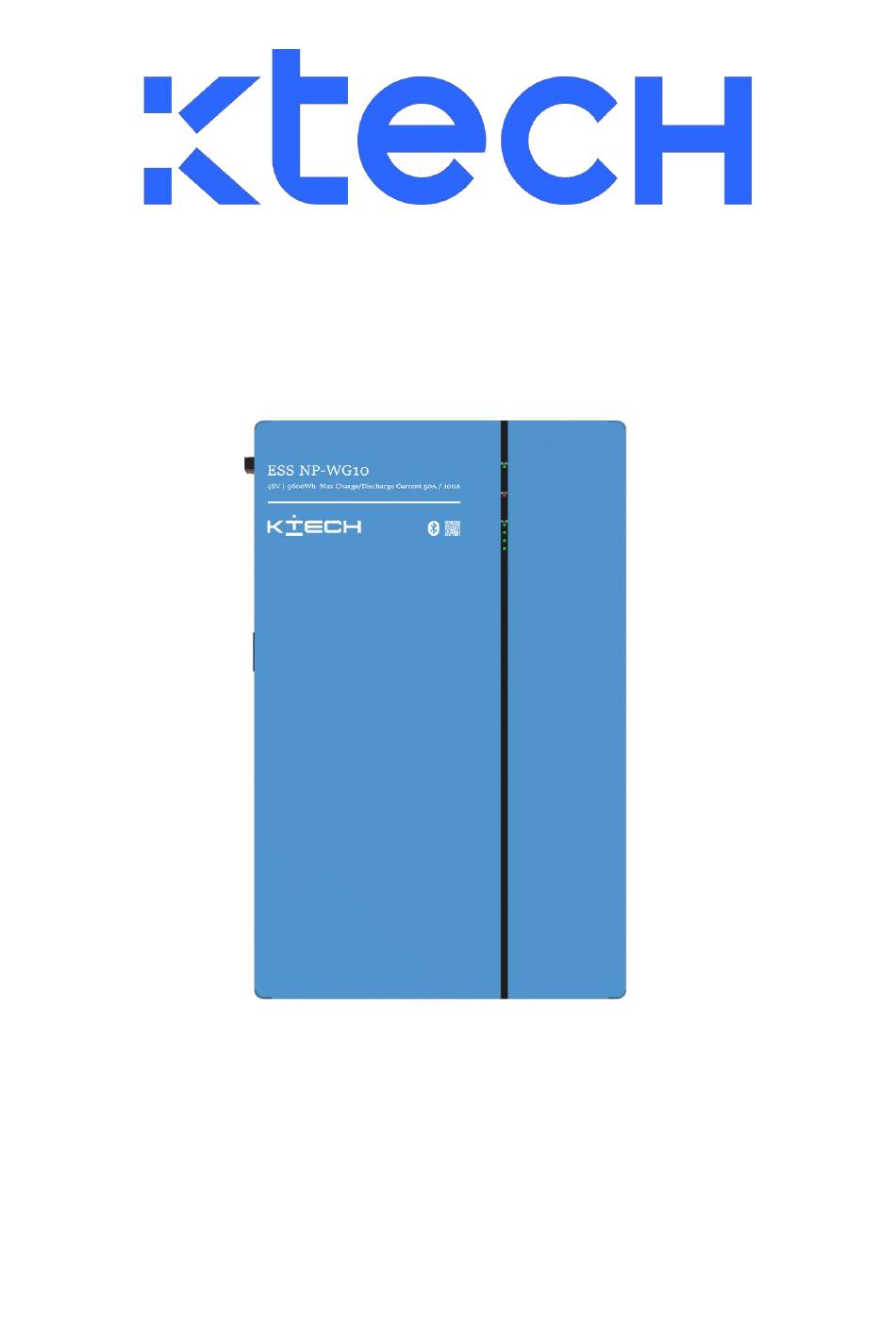

- Page 1 User Manual ESS NP-WG10...
-
Page 2: About This Manual
DIP and address selection following with part 5.3. About This Manual This manual is intended for the NicePower Series battery, but the hybrid inverter and any other equipment is not included. The Ktech Energy hot line is available if you want to get additional information. Declaration... -
Page 3: Table Of Contents
Contents About Ktech Energy NicePower Series Batteries ............ II About This Manual .....................II Declaration ........................II 1. Instructions ....................- 5 - 1.1 Range of Application ....................- 5 - 1.2 Meaning of Abbreviations ....................- 5 - 2. Safety Precautions ....................- 5 - 2.1 Important Safety Instructions ..................- 5 -... - Page 4 3.5.1 Connecting Signal Line ...................- 14 - 3.6 Installation Process .....................- 16 - 4. Electrical Connection ..................- 16 - 4.1 Cable Materials ......................- 16 - 5. Commissioning ....................- 17 - 5.1 Debug Batteries ......................- 17 - 5.2 Shutting Down Battery ....................- 17 - 5.3 Battery Module Address Setting ................
-
Page 5: Instructions
2.1 Important Safety Instructions This manual contains important instructions for: NicePower Series energy storage product and this manual must be followed when installing and using this product.The product is designed and tested in accordance Ktech Energy Co.,Ltd. - 5 - E:info@ktechsolar.com W:www.ktechenergy.com... -
Page 6: Safety Symbols
The device is not run under the conditions of operating described in this Manual. The installation and operating environment is beyond the requirements of relevant international or national standards. The product is disassembled or changed, or the software code is modified without Ktech Energy Co.,Ltd. - 6 - E:info@ktechsolar.com W:www.ktechenergy.com... -
Page 7: General Requirements
After the device is installed, the empty packing materials, such as cartons, foam, plastics, and cable ties, shall be removed from the device area. 2.3.3 Personnel Safety When operating the device, appropriate personal protective equipment shall be Ktech Energy Co.,Ltd. - 7 - E:info@ktechsolar.com W:www.ktechenergy.com T:+86 183 5283 2107... -
Page 8: Personnel Requirements
The replacement of device or components (including software) must be carried Ktech Energy Co.,Ltd. - 8 - E:info@ktechsolar.com W:www.ktechenergy.com... -
Page 9: Battery Handing Guide
The DC circuit of Ktech battery NicePower Series has been disconnected before outgoing. A precautionary label had been affixed to the shipping carton to alert individuals as to the battery within the package have been disconnected;... -
Page 10: Grounding Requirements
The product can be installed at a maximum altitude of 2,000m. The installation position should be away from the fire source. The product should be installed and used away from children and animals. Ktech Energy Co.,Ltd. - 10 - E:info@ktechsolar.com W:www.ktechenergy.com... -
Page 11: System Installation
3.3 Installation Requirements For safe use of battery, please notice following notes when install: The installation shall be in a restricted access location/ room or in a cabinet where Ktech Energy Co.,Ltd. - 11 - E:info@ktechsolar.com W:www.ktechenergy.com T:+86 183 5283 2107... -
Page 12: Device Installation
3.4 Device Installation 3.4.1 Installation Location Selection Ktech battery NicePower Series is suggested installing by skilled worker or electrician. A skilled worker is defined as a people who had been trained and qualified electrician or had all of the following skills and experience: ... - Page 13 Step 3: Align the expansion screws of the M8 with the holes in the bending patch. Ktech Energy Co.,Ltd. - 13 - E:info@ktechsolar.com W:www.ktechenergy.com T:+86 183 5283 2107...
-
Page 14: Install Battery Pack
If the battery is installed on a wall, make sure that the wall is capable of supporting the battery’s weight. 3.5 Battery Installation 3.5.1 Connecting Signal Line Connect the inverter after paralleling the batteries. Ktech Energy Co.,Ltd. - 14 - E:info@ktechsolar.com W:www.ktechenergy.com T:+86 183 5283 2107... - Page 15 If there are multiple batteries, you need to connect the communication line of each battery. Battery and battery connection use RS485-485 interface, battery and inverter connection need RS485-CAN interface. Ktech Energy Co.,Ltd. - 15 - E:info@ktechsolar.com W:www.ktechenergy.com T:+86 183 5283 2107...
-
Page 16: Installation Process
4.1 Cable Materials The following installation materials should be prepared by installers. ① Copper nose SC25-8 ② Orange EV wire ③ Black EV wire Ktech Energy Co.,Ltd. - 16 - E:info@ktechsolar.com W:www.ktechenergy.com T:+86 183 5283 2107... -
Page 17: Commissioning
Check battery voltage level is above 48V a) If battery voltage is under 45V contact your distributor or Ktech After-sale service hot line for help. Release the panel button, after few seconds the indicator lights off. - Page 18 RS485 interface connection is as shown in the figure below ② The host computer opens the automatic dip function NOTICE Ktech Energy Co.,Ltd. - 18 - E:info@ktechsolar.com W:www.ktechenergy.com T:+86 183 5283 2107...
-
Page 19: Response To Emergency Situations
If the battery catches fire, it will produce poisonous gases.Do not approach. 6.3 Wet Battery If the battery is wet or submerged in water, do not try to access it. Contact Ktech hot line or your distributor for technical assistance. 6.4 Damaged Battery... -
Page 20: Contact Information
CAUTION Damaged battery might export electrolyte or flammable gas, so contact Ktech for advice and information immediately we will deal with it within 48h. 6.5 Scrap Battery For scrap battery(-ies), please treat with local laws or regulations to recycle or scrap.
