Summary of Contents for Exoton DA1002C

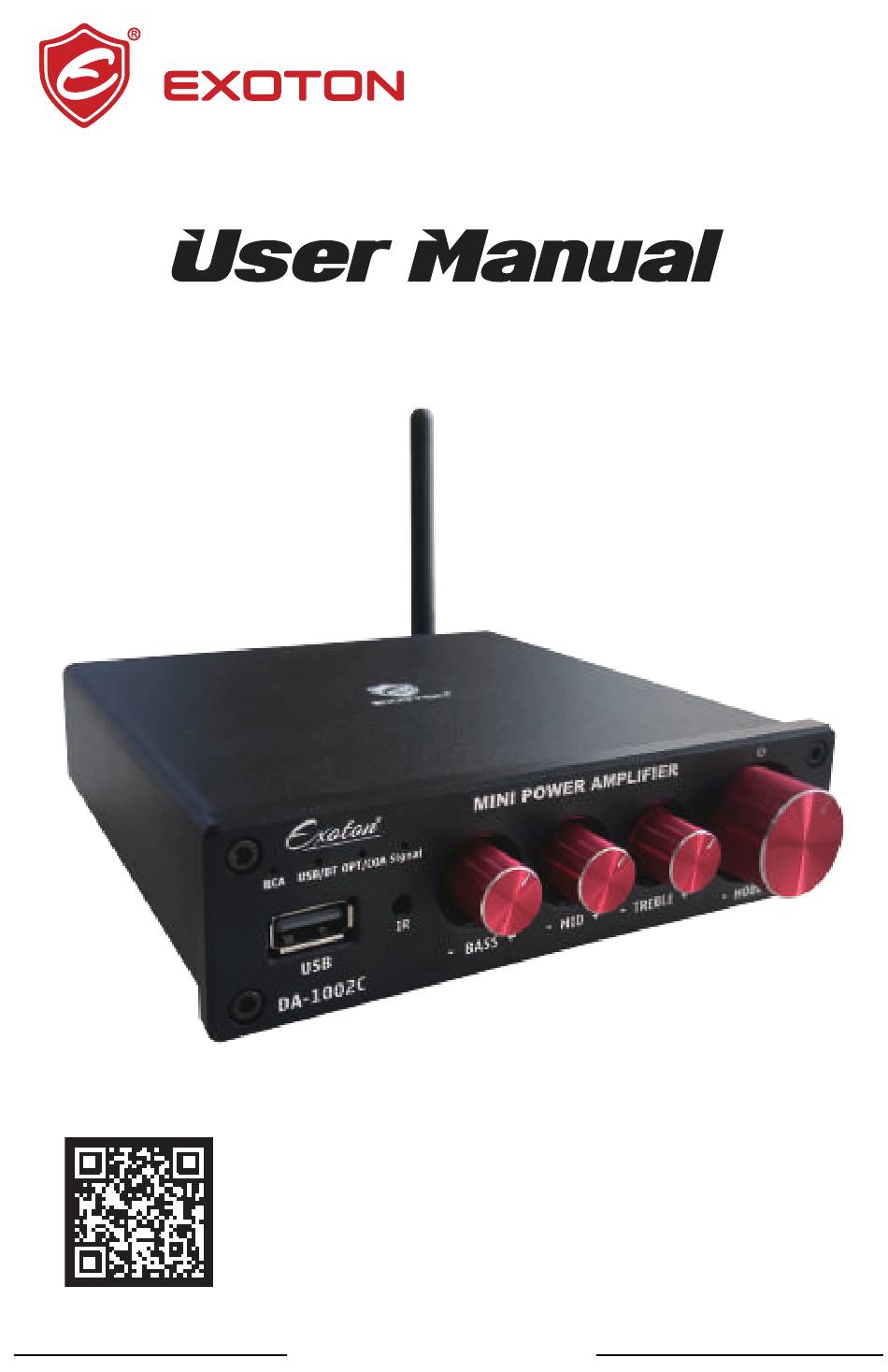

- Page 1 DA1002C Installation video Thanks for choosing us!
-
Page 2: Product Specifications

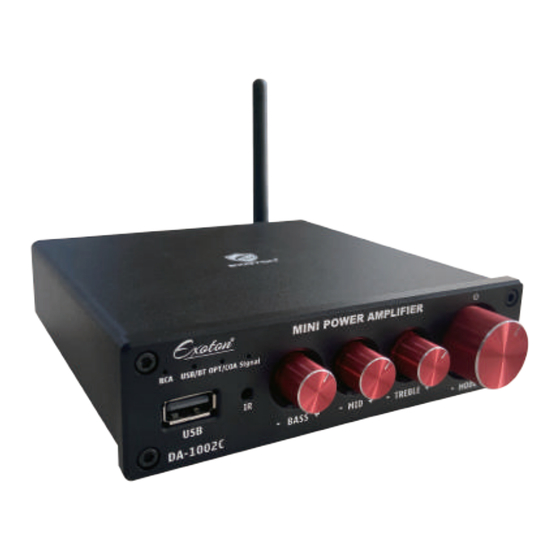

Product Specifications EXOTON DA1002C is a powerful Bluetooth 5.0 HiFi stereo amplifier with USB/Bluetooth/Optical /Coaxial inputs and Treble & Bass control to meet more your needs. It supports MP3/WMA/APE/FLAC/WAV music formats, suitable for most home passive speakers.Adopting classic TPA3221 chip to get clear sound without any audible noise even at high output. - Page 3 Product Overview & Control Functions Front Panel Bluetooth Antenna Back Panel...
- Page 4 Surface Instructions ① Functional indicator light → ② USB interface (automatically switch and play when inserting usb flash drive) ③ Remote receiving window ④ Bass knob ⑤ Mid knob ⑥ Treble knob ⑦ Encoder knob (short press to start/short press to cut channel again/rotate to adjust volume/long press to shut down) ⑧...
-
Page 5: Remote Control
Remote control Package Contents EXOTON DA1002C Amplifier*1 24V/4A Power Supply *1 Remote control *1 Bluetooth antenna*1 AC Power Cord*1 User Manual *1... -
Page 6: Operation Procedure
Operation procedure 1. Connect the required audio source to the corresponding input interface (when connecting Bluetooth, you need to switch the input channel to Bluetooth). 2. Connect the passive speaker to the speaker interface (red +/ black -, R to the right speaker /L to the left speaker). - Page 7 Q: Why does the volume stay the same, but the volume is differe nt when connected to different sources (such as a CD and then a mobile phone) ? A: The amplitude of the electrical signal varies from device to device. For example, a mobile phone is usually 0.35V and a CD is 1V.Natural sound levels are different.
-
Page 8: Warranty Information
Warranty Information All Exoton Audio products have an 12-month limited warranty on parts and labor from the date of purchase. Please contact us if you have any problems. About Exoton Audio Exoton Audio designs and builds innovative audio products with all your music in mind.
Need help?
Do you have a question about the DA1002C and is the answer not in the manual?
Questions and answers
The Dac1002 has 4-output speaker ports that appear to be 1/4" phono plug connections. Are these outputs for Front Right & Left AND Back Right & Left speakers? If only 2 speakers, then please explain how to wire to a passive speaker with 2 terminals but 2 shielded cables with 2 positve and 2 negative wires to be connected. Please specify the type and size of the speaker connections AND how to wire only 2 Front speakers each with 2 terminals only. thanks
The Exoton DA1002C amplifier has speaker output terminals labeled red (+) and black (-) for both the right (R) and left (L) channels. To wire two passive speakers with two terminals each:
1. Identify the speaker terminals: Each speaker has a positive (+) and a negative (-) terminal.
2. Connect the right speaker:
- Attach the red (+) terminal of the right speaker to the red (+) output of the amplifier’s right (R) channel.
- Attach the black (-) terminal of the right speaker to the black (-) output of the amplifier’s right (R) channel.
3. Connect the left speaker:
- Attach the red (+) terminal of the left speaker to the red (+) output of the amplifier’s left (L) channel.
- Attach the black (-) terminal of the left speaker to the black (-) output of the amplifier’s left (L) channel.
Ensure proper polarity to avoid phase issues that could affect sound quality.
This answer is automatically generated
