MCA7004t MCA10004t

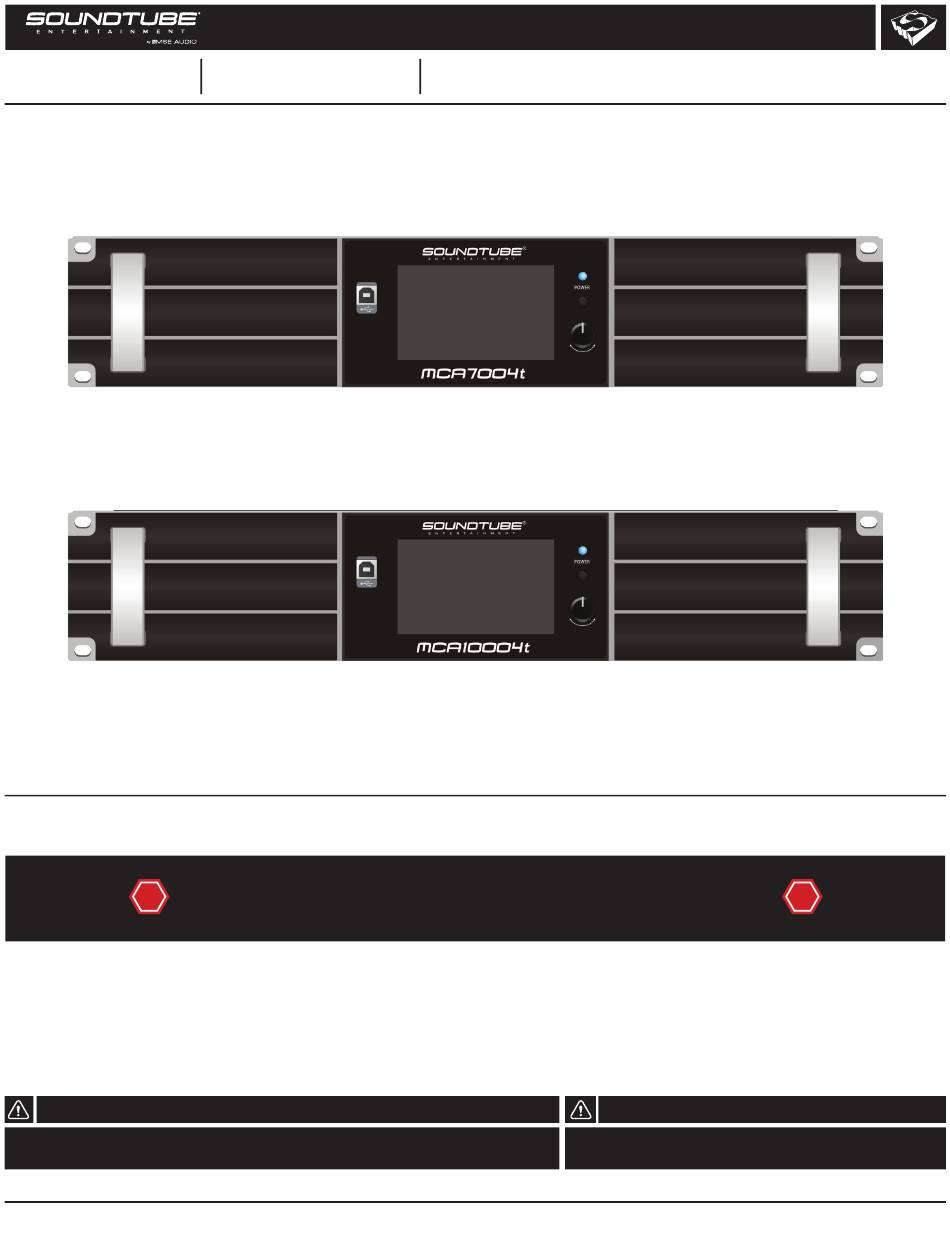

DANTE ENABLED NETWORKING AMPLIFIER INSTALLATION MANUAL
!
Please read this user manual in detail before use.
Please consult the MCA7004t / MCA10004t Software Manual for instructions on how to use the STNet
MCA Control PC Software. Manual can be found on the Downloads page at www.soundtube.com or on
the MCA7004t or MCA10004t product webpages.
Warning
SoundTube amplifi ers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.
MCA7004t/ MCA10004t © 2024 SoundTube Entertainment, Inc. All rights reserved. Rev9.19.24
Install Instructions For:
MCA7004t, MCA10004t
Warning
Do not spec or install amplifi er near support beam, ventilation duct or
other structure that may interfere with amplifi er function or dispersion.
Lead. Or fol
low.
!
913.663.5600 | www.soundtube.com
1
Advertisement
Table of Contents
Related Manuals for MSE Audio SoundTube MCA7004t
Summary of Contents for MSE Audio SoundTube MCA7004t
- Page 1 Lead. Or fol low. MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t DANTE ENABLED NETWORKING AMPLIFIER INSTALLATION MANUAL Please read this user manual in detail before use. Please consult the MCA7004t / MCA10004t Software Manual for instructions on how to use the STNet MCA Control PC Software.
-
Page 2: Table Of Contents
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t CONTENT Product Description ............3 1.1. Applicable Scenarios ...........3 1.2. Product Features ............3 Technical Parameters ............4 Panel Layout ...............5 3.1. Front Panel ..............5 3.2. Rear Panel ..............5 3.3. Display Panel ...............6 3.3.1 Homepage ............6 3.3.2. -
Page 3: Product Description
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t Product Description The SOUNDTUBE ENTERTAINMENT MCA7004t and MCA10004t multichannel amplifiers are Dante enabled and allow for fixed resistance and fixed voltage output modes. At 4 ohms, these amplifiers offer 700W and 1000W per channel, respectively. -
Page 4: Technical Parameters
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t Technical Parameters Model MCA7004t MCA10004t Output Power Stereo/Matrix@16Ω×4: 250W×4 Stereo/Matrix@16Ω×4: 350W×4 (20-20KHz/THD≤1%) Stereo/Matrix@8Ω×4: 500W×4 Stereo/Matrix 8Ω×4: 700W×4 Stereo/Matrix@4Ω×4: 700W×4 Stereo/Matrix 4Ω×4: 1000W×4 Bridged @16Ω×2: 700W×2 Bridged 16Ω×2: 1000W×2 Bridged @8Ω×2: 1400W×2 Bridged 8Ω×2: 2000W×2 Fixed Voltage 70V@9.8Ω: 500Wx4 Fixed Voltage 70V@6.1Ω: 800W×4 Bridge Fixed Voltage 100V@10Ω: 1000W×2... -
Page 5: Panel Layout
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 3. Panel Layout 3.1. Front Panel Amplifi er handle. USB connection interface: reserved protocol connection interface. 4.3-inch IPS capacitive touch screen. Power switch: When the device is powered on, press and hold this button for 2 seconds to switch between standby and power-on status. -
Page 6: Display Panel
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 3.3. Display Panel 3.3.1. Homepage System Settings: Click the gear icon to enter the Input, Output, Channel Ganging, Presets, IP Settings, and Device Details menus. Click the home icon to return to the home page. Amplifier Settings: Click the amplifier settings icon to check the amplifier settings and amplifier status. -
Page 7: Amplifier Settings Interface
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 11. Input Channel Gain Adjustment: Click to select the current channel, then adjust the gain by rotating the knob on the right side of the display. Adjustment ranges from -60db - +15db. Pressing the knob or the mute button will mute the channel. -
Page 8: Input Settings Interface
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t • Set load impedance (Ω): Click the dropdown symbol to select the same impedance value as the speaker connected to the current channel. If there is no need to change the channel impedance, click the back button to exit. -
Page 9: Output Settings Interface
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 3.3.4. Output Settings Interface Working Mode and Matrix Routing Settings: • Working mode setting: BRIDGE sets the output to bridged mode; MATRIX sets the output to matrixed mode. When set to bridged mode, the OUT2 output interface and the OUT4 output interface are disabled. Please refer to the bridge connection diagram of OUT1/OUT3. -
Page 10: Channel Ganging Interface
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 3.3.5. Channel Ganging Interface Input Channel Joint Adjustment: If set in the same group, the gain and mute status of input channels will be adjusted at the same time. Output Channel Joint Adjustment: If set in the same group, the gain and mute status of output channels will be adjusted at the same time. -
Page 11: Network Ip Settings Interface
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 3.3.7. Network IP Settings Interface Ethernet IP Setting: IP address used for STNet MCA Control software connection. To change IP address, click the value to enter the input menu, enter the value, and click ok, then “Set”. Dante IP Setting: IP address used for Dante network audio transmission. -
Page 12: Details Interface
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 3.3.8. Details Interface Device Name: The device display name is set to MCA7004t or MCA10004t by default. The device name can be modified by clicking the display name, then entering the desired name, and clicking “Complete” to complete the device name modification. -
Page 13: Device Connection
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 3.3.9. Device Connection After connecting to the PC software through TCP/IP, “PC CONTROL” appears in the upper left corner of the screen interface, and the interface automatically jumps to the homepage. For PC operation, use STNet MCA Control software. -
Page 14: Device Wiring Instructions
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 4. Device Wiring Instructions 4.1. Power Cable The AC power cable must have suffi cient over-current capability, the AC power voltage must be within ±10% of the nominal operating voltage of the device, and the AC power frequency must be within the nominal frequency range of the device (the nominal value is marked on the rear panel of the device). -
Page 15: Bridge Mode
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 4.4. BRIDGE Mode CH A In bridge mode, CH2 and CH4 become inactive. To wire to BRIDGED CH1/CH2, use the + pin of CH1 and the - pin of CH2. To wire to BRIDGED CH3/CH4, use the + pin of CH3 and the - pin of CH4. -
Page 16: Precautions
MCA7004t MCA10004t Install Instructions For: MCA7004t, MCA10004t 6. Precautions Although the amplifier will be protected under abnormal conditions, to achieve the best performance and highest safety of the amplifier, please pay attention to: Before use, the amplifier needs to be configured, including the connection of input and output lines. Improper wiring can cause the device to not work properly.
