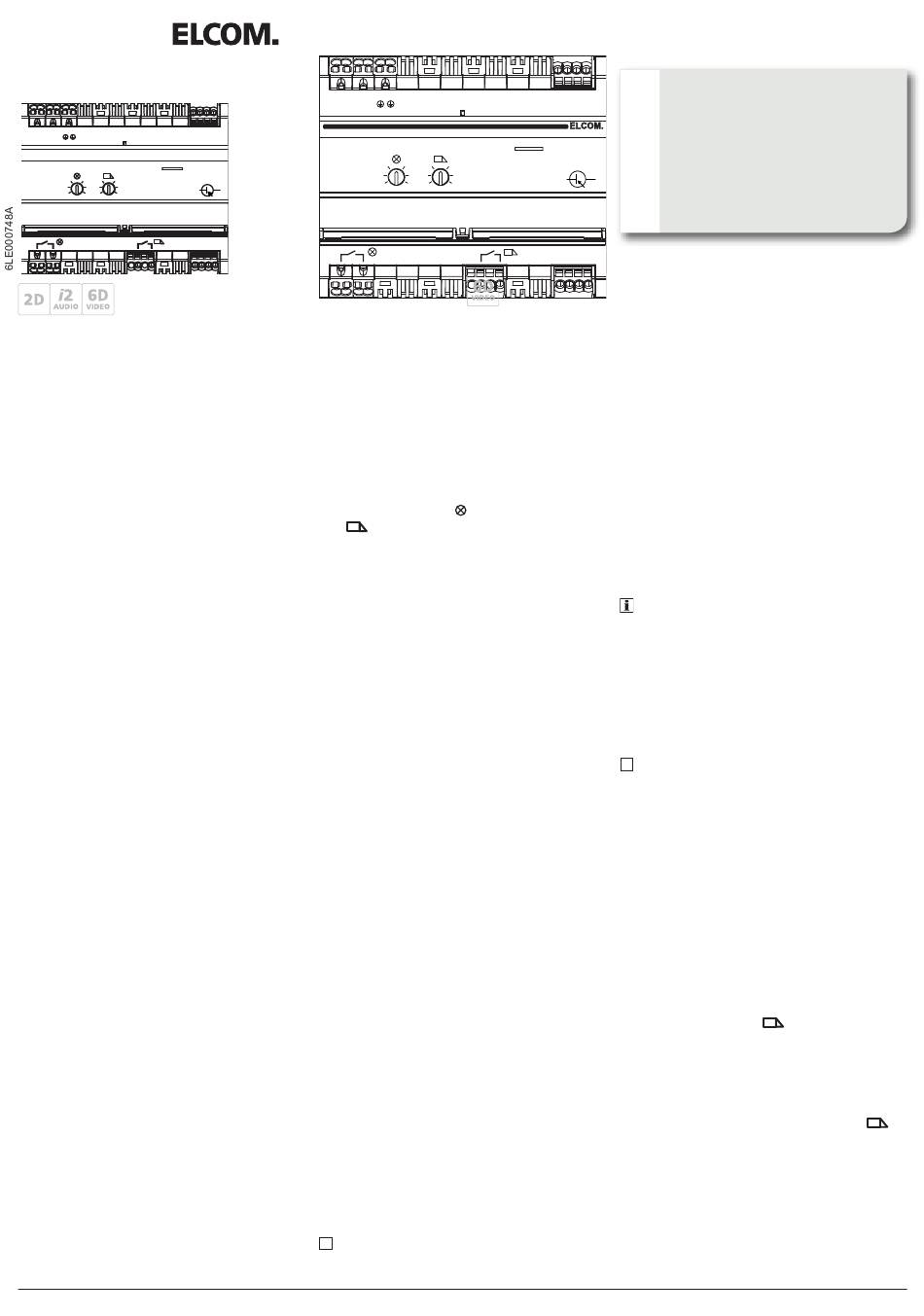

ELCOM RED012Y Operating And Assembly Instruction Manual

Operating and
assembly instructions
PE
N L
230V~ 50Hz IN
Power
1 sec 5 min 1 sec 10 sec
L/L max 230V/16A T/T max 24V/2A
RED012Y
Bus line power supply RMD
RED011Y
Bus line power supply with relay
RMD
Safety instructions
Electrical equipment may only be installed and
assembled by a qualified electrician in accord-
ance with the relevant installation standards,
guidelines, regulations, directives, safety and
accident prevention regulations of the country.
When working on systems with a 230 V AC
power connection, comply with the safety re-
quirements of DIN VDE 0100.
Failure to comply with these instructions may
result in damage to the device, fire or other
hazards.
These instructions are an integral component
of the product and must be retained by the end
user.
1 Elcom Kommunikation GmbH - Gottfried-Leibniz-Str.1 - D-74172 Neckarsulm - www.elcom.de -
Design and layout of the device
(1)
N L
230V~ 50Hz IN
§
S/S X/X
RED011Y
Mon
S
Cam
a/b X/X
L/L max 230V/16A
(7)
Figure 1: Design and layout of the device
(1) Phase, neutral conductor and PE connection
for floating output L, N, PE
(2) a/b connection for i2 audio devices
(3) X/X Cam connection for 2-wire door stations
(4) X/X Mon connection for indoor stations, in-
door stations video and floor door stations
(5) S/S Mon connection for additional power supply
(6) Operating/overload LED Power
Only relay version
(7) Contact for lighting
(8)
version)
(9) Potentiometer for lighting switch-on time (only
relay version)
(10) Potentiometer for door release unlocking time
(only relay version)
Function
Device for centrally supplying the 2-wire, i2 Audio
and 6D Video bus subscribers.
Correct use
- Supply of the bus components with polarisation-
safe SELV bus low voltage
- Mounting on DIN rail according to DIN EN 60715
- Not compatible with door communication sys-
tems of other manufacturers
Product characteristics of line power supply
- Electronic overload and short-circuit protection
- Electronic overheating protection
- All connections with plug-in terminals.
Additional product characteristics for the relay
version
- Contact for door release with adjustable unlock-
ing time and for manipulation protected door
release
- Contact for lighting with adjustable switch-on
time
Operating/overload LED Power (Figure 1, 6)
The LED Power on the front indicates the current
operating state.
OFF
GREEN The device is ready for operation.
RED
If an overload or short-circuit is detected, the bus
voltage is switched off. The device attempts to
switch on again every 10 seconds. After trouble-
shooting, the LED remains illuminated in red for up
to 10 seconds.
i
When switching on the line power supply (start
phase) the LED is illuminated in red for 8 seconds.
PE
(9) (10)
(6)
Power
1 sec 5 min 1 sec 10 sec
T/T max 24V/2A
(8)
LL (only relay version)
TT Contact for door release (only relay
The device is not ready for operation.
There is no operating voltage present.
The device is overloaded or has short
circuited.
Information for electricians
(5) (4)
Installation and electrical connection
DANGER!
ç
Touching live parts in the installation
S/S X/X
Mon
environment can result in an electric
shock.
An electric shock can be lethal!
Before working on the device or load,
S
disconnect all associated circuit
breakers. Cover all live parts in the
area!
Cam
When working on systems with a 230 V AC power
a/b X/X
connection, comply with the safety requirements of
DIN VDE 0100.
(2) (3)
When installing door communication systems,
comply with the general safety regulations for tele-
communications systems according to VDE 0800:
- Separate routing of power and door communi-
cation cables according to VDE 0800.
- Partitions between power and door communica-
tion cables in shared cable ducts.
- Use of standard telecommunications' cables, e.
g. J-Y (St) Y with 0.8 mm diameter.
Bus cables
- J-Y(ST)Y or A-2Y(L)2Y
Use wrapped wire pair.
Recommendation: white/yellow
- CAT
Use wrapped wire pair.
Recommendation: orange/white
- YR
Use adjacent wires.
Even for a system with audio indoor stations,
we recommend routing the cables and the num-
ber of devices in the same way as for a system
with video indoor stations. This makes a video
refitting possible.
Installing the appliance
„ Clip device onto DIN rail in accordance with
DIN EN 60715. The operating voltage
connection (Figure 1, 1) must be at top.
i
The device will heat up during operation. Ob-
serve maximum operating temperature. Ensure
that adequate heat dissipation is provided.
Connect power supply
The lead is protected by a 16 A circuit breaker.
„ Connect equipotential bonding conductor to
connection PE (Figure 1, 1).
„ Connect the phase protected by a 16 A circuit
breaker to connection L and the neutral con-
ductor to connection N (Figure 1, 1).
Only relay version:
Connect door release protected against
manipulation
„ For manipulation protection, connect the door
release to the contact
or:
„ In the case of multiple door stations, the door
release must be controlled 2pole (manipula-
tion protection). Connect one pole to the door
release contact of the door stations and the
second pole to the door release contact
(Figure 1, 8) of the line power supply.
2-wire (Figure 2 and 9)
i2 Audio (Figure 14 and 17)
6D Video (Figure 18 and 24)
(Figure 1, 8).
6LE000748A - 07/2015
