Access Control Core (OP-CR-ACC)
Quick Start Guide

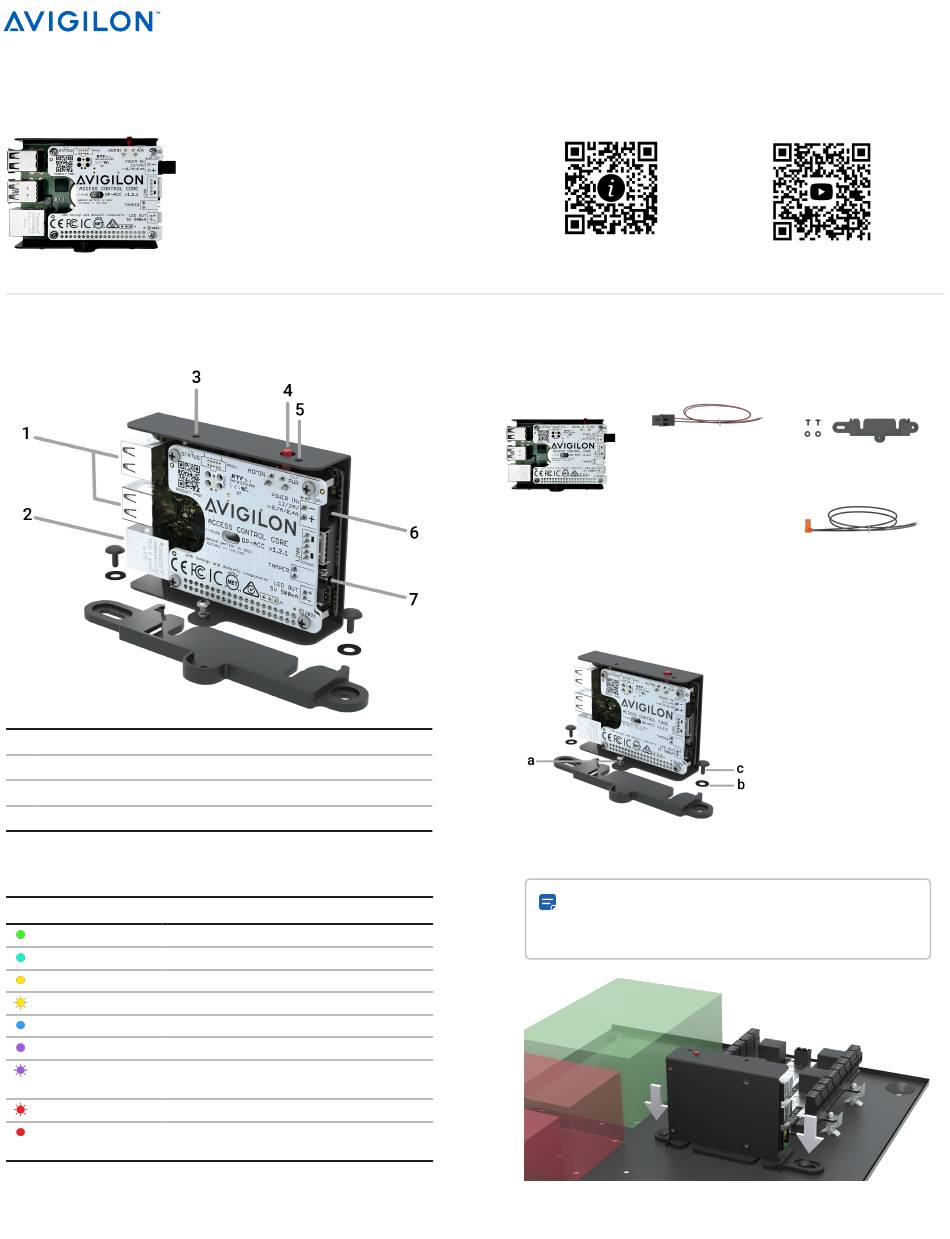

Overview
1 USB ports
2 Ethernet port
3 Status LED indicator
4 Admin button
Status LED Indicator
Status LED Description
Solid green Operating as expected
Solid cyan Booting up
Solid yellow Restoring software
Blinking yellow Updating software
Solid blue Not provisioned
Solid purple Connected to Avigilon Alta Access app
Blinking purple Ready to connect to Avigilon Alta
Access app
Blinking red Not connected to internet
Solid red Error, see Alta Control Center on your
computer
5 Power LED indicator
6 Power input
7 Tamper switch
For More Information
Scan the following QR codes:
OP-CR-ACC
Includes HID™ Mercury™
hardware installation
What's Included
Access Control Power cable
Core
1 - Installing
1. Install the Access Control Core in the enclosure using the
included bracket.
Note: The Access Control Core is installed with the
ports facing down, up, left, or right (shown below),
depending on the enclosure model.
Video Library
Bracket and
push-in fasteners
Tamper sensor
wire (optional)
Unscrew the retaining
screw (a), slide the
Access Control Core into
the bracket, and then
tighten (a) to the bracket.
Use the included washers
(b) and fasteners (c) to
secure the bracket
directly to the enclosure.
When attaching to a
mounting plate, do not
use the washers.
