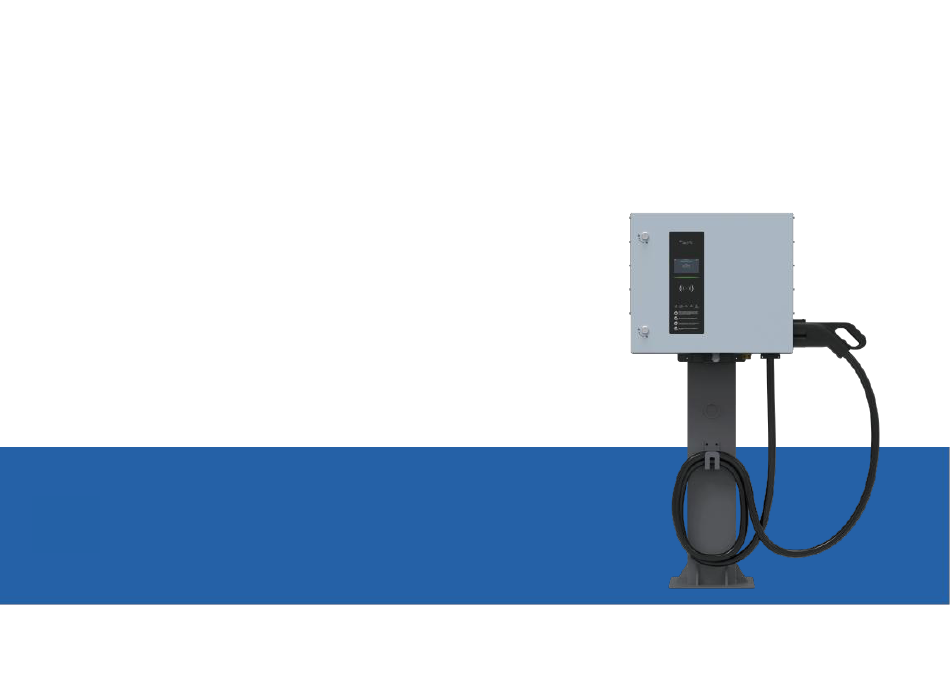

- Page 1 User manual DC EV Charger PEVC3401E/PEVC3401U Version: V1.00...
-
Page 2: Table Of Contents
CONTENT Safety and Compliance Save these instructions. Read the manual before installation or usage 1 Product Introduction of device. 1 . 1 Product Description 1) Do not put tools, material or body parts into the electric vehicle connec- 1 . 2 Product Characteristic tor. -
Page 3: Product Introduction
1 Product Introduction 1 . 3 Product Technical Specifications PEVC3401E/U PEVC3401E/U Description Parameter type 1 . 1 Product Description -30K1000N1 -40K1000N1 Power Supply 3 P+ N+ PE Rated voltage 4 0 0 VAC± 1 5 % The DC EV charger is the top choice for powering battery electric vehicles... -
Page 4: External Structure
1.4 External Structure 1.5 Package Contents Unpack the product. Please check and verify following items after Wall Mounting receiving the charger: 1 ) Visual inspection on charger' s external appearance. If there is any 183mm breakage or other damage, please notify the seller immediately. 640mm 120mm 160mm... -
Page 5: Installation Instruction
2 Installation Instruction 2.2 Wall Mounting Process 2 . 1 Installation Preparation 120mm Please prepare the following tools before installation: 240mm 420mm 40mm Use the bracket and hook to mark drill holes, Mount bracket and hook onto the Hammer drill wall. -
Page 6: Column Mounting Process
2.2 Wall Mounting Process 2 . 3 Column Mounting Process Power PVC size Strong Electricity DN5 0 20-30kW Weak Electricity DN20 Strong Electricity DN6 5 40kW Weak Electricity DN20 3 4 0 mm 2 0 0 mm Lock the charger cover with the key. Make concrete platform, mark the holes position of installation column and drill holes. -
Page 7: Configuration And Operation
3 Configuration and Operation 2 . 3 Column Mounting Process 3.1 Power-on Checking Please check / re- check the following items prior to initial Power-on: 1 ) The location of the charger should be convenient for operation and maintenance. 2 ) Before installation of the charger, ensure that the AC input component in the power supply is properly installed with the required protection. - Page 8 1) Choose a compatible plug (CCS). 4 ) Once charging commences, status information is displayed on the screen. The following illustrations demonstrate the start to near com- plete charging procedure. Waiting to swipe card CCS1 CCS2 During charging 2) Connect the plug to the EV. 5 ) Swipe the authorized RFID card to stop.
-
Page 9: Fault Code And Resolution( Lcd Display)
5 Warranty and Service 4 . 2 Fault Code and Resolution( LCD display Fault 5.1 Customer Service Fault Status Troubleshooting suggestion Code We can provide customers with professional product advice and purchase RTC fault Please contact after- sales service. options. All emails will be responded within 4 8 hours during working days. We provide online customer service in multiple languages.
