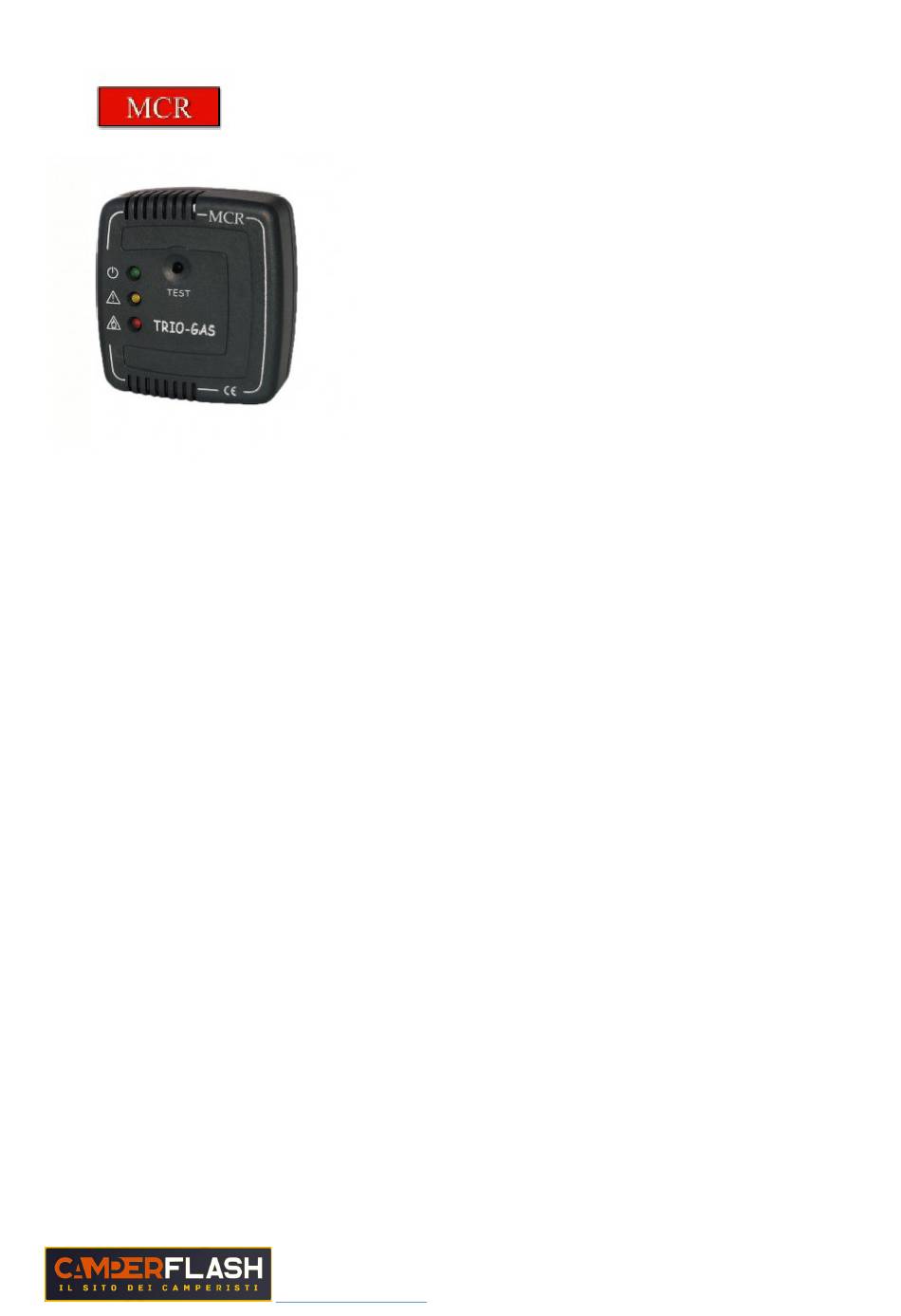

MCR – TRIOGAS – GAS DETECTOR FOR MOTORHOMES
Built and certified according to current regulations:
CONFORMITY 72/245/EEC (2006/28/EC)(2014/35/EU)
(2014/30/EU) EN50194-2:2017 EN50291-2:2019 EN62479:2011
The data reported may be changed without notice.
It is forbidden to reproduce any part without permission
Technical certification tests carried out by: TOVRheinland
MCR sas Via S. Martino 3 - 20834 - Nova Milanese (MB) tel. 0362/40407
READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE
NB WE RECOMMEND INSTALLATION BY A QUALIFIED TECHNICIAN
GENERAL DESCRIPTION
TRIO - GAS multicontrol is an electronic device designed for use on 12 V recreational vehicles.
It is suitable for detecting the presence of LPG - CARBON MONOXIDE - NARCOTIZING GASES (ether and
derivatives) in anomalous concentrations, in any case lower than the danger threshold (LIE), signaling with
a visual (LED) and acoustic (BUZZER) alarm.
TRIO-GAS has 3 LEDs, a test button, a switch and an acoustic signal.
GREEN LED = Power on - activated via the on – off switch located on the side of the appliance
YELLOW LED = Circuit fault or anomaly
RED LED = GAS presence alarm - activates simultaneously with the acoustic signal
TEST = Test the functionality of the signaling circuit
The heart of the system consists of a Motorola microprocessor and a latest generation sensor.
Fundamental characteristics of the sensor are low consumption, high sensitivity and speed
answer.
The microprocessor carries out an important self-diagnosis function of all the components, also accurately
processing the signal coming from the sensor.
Built and certified according to current regulations:
CONFORMITY 72/245/EEC (2006/28/EC)(2014/35/EU)
(2014/30/EU) EN50194-2:2017 EN50291-2:2019 EN62479:2011
The data reported may be changed without notice
www.camperflash.it
– Whatsapp messages: +390698382203
Advertisement
Summary of Contents for MCR Technologies TRIO-GAS
- Page 1 (LED) and acoustic (BUZZER) alarm. TRIO-GAS has 3 LEDs, a test button, a switch and an acoustic signal. GREEN LED = Power on - activated via the on – off switch located on the side of the appliance...
- Page 2 GENERAL DESCRIPTION TRIO-GAS is equipped with an "Open Collector" type output which is activated in an alarm condition. It can be configured as "Static or Impulsive" via the Jumper located on the board as shown in the drawing. It is used to operate accessories such as: Manual reset valves. Aerators etc...
- Page 3 To obtain adequate detection of the three types of gas, position the TRIO-GAS approximately 50 cm above the floor. and 1 meter. If you install the TRIO-GAS at a height between 20 and 50 cm from the floor. you will have greater protection from LPG GAS and NARCOTIC GAS.
- Page 4 electrically powered check that no narcotic sprays have been released If the cause that caused the alarm is due to the presence of LPG GAS or CARBON MONOXIDE, we recommend contacting a qualified technician to resolve the problem. It is also advisable to contact a doctor if you experience symptoms such as migraines, nausea, etc. which may be due to carbon monoxide poisoning or narcotic substances.
