freightliner Coronado Instruction Manual

freightliner Coronado Instruction Manual

Children's electric truck
Hide thumbs Also See for Coronado:

Advertisement

Quick Links

Download this manual
Authentic authorization
INSTRUCTION
MANUAL
CHILDREN'S ELECTRIC TRUCK

Advertisement

loading
Need help?

Need help?

Do you have a question about the Coronado and is the answer not in the manual?

Questions and answers

Related Manuals for freightliner Coronado

Summary of Contents for freightliner Coronado

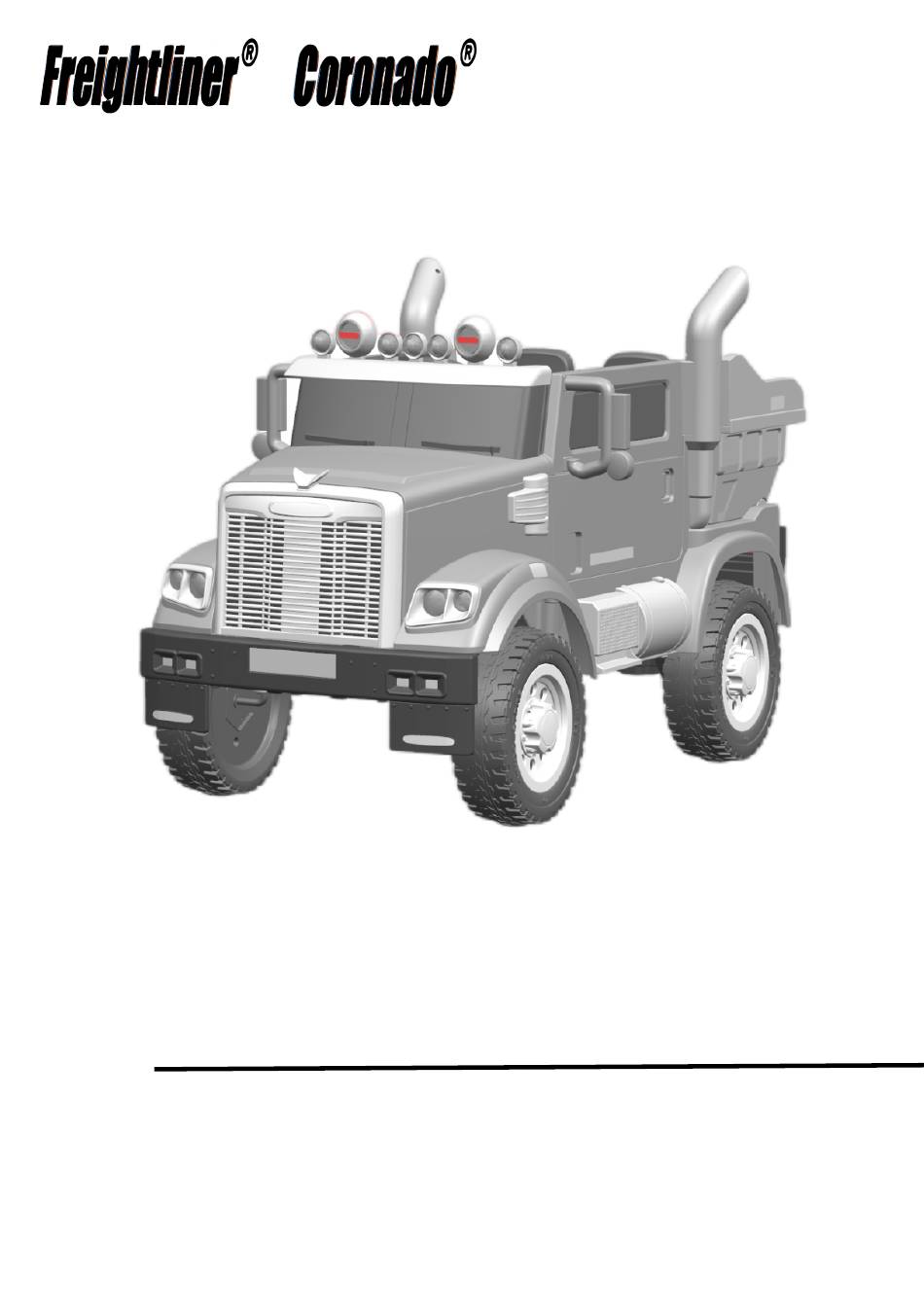

  • Page 1 Authentic authorization INSTRUCTION MANUAL CHILDREN'S ELECTRIC TRUCK...

  • Page 2: Dear Customer

    Dear Customer, Thank you for your purchase. We are committed to providing affordabe high-qualty children products worldwide. Thousands of children enjoy playing these products as a happy statement. When you receive the product, please make sure that all the parts are intact. Then please browse the entire instalation manual before assembly.
  • Page 3 The first charge is more than 12 hours. It is recommended to charge the battery once a month if it is not suitable for a long time. Please unplug the charging port when using it.
  • Page 4 This vehicle must be assembled by an adult who has read and understood the instructions in this manual. Keep the packaaing and bags away from children and dispose of all packaging before use. Always use common sense and sate practices when operating this vehicle.
  • Page 5 To reduce the risk of injuries, adult supervision is required. Never use this vehicle on roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water; Always wear shoes, and never allow more than one rider. ·...
  • Page 6 M4 x 10mm M10 Washer M8 nut M4 x 14mm SCREW SCREW 6 pcs 24 pcs 4 pcs 6 pcs 1 pc 1 pc 1 pc 2 pcs 4 pcs 1 pc...
  • Page 7 2 pcs 1 pc 2 pcs 2 pcs 1 set 1 set 1 set 1 set 4 pcs 1 pc 2 pcs 1 pc...
  • Page 8 FIGURE Screwdriver not included...
  • Page 9 Turn the （A）vehicle body upside down. 1.Attach the （C）rear axle （D)shock-proof connector to the body 2.Insert （2）M4x14 flat head rear axle and （D）shock absorber connector and screw and （C) tighten with a screwdriver. M4 x 14mm x 8 SCREW As shown: 1.（G）the gear Motor is mounted to the body and threaded into the （C）rear axle. 2.Slide a driving wheel onto the rear axle.
  • Page 10 Use（1）M4x10 mm x 6 to secure the （L)front steering iron to the car front bumper, tighten with a screwdriver. Use (2) M4x14 mm x 8 to secure the （B) front steering iron to the handiebars. M4 x 14mm x 8 SCREW...
  • Page 11 1.Slide a（4） M10 washer onto the front axle. 2. Slide a normal wheel onto the front axle. 3.Slide a（4） M10 washer onto the front axle. 4.Tighten a lock（3）nut to the end of the front axle. 5.Insert （E) hubcap onto the （O)driving wheel.
  • Page 12 Use（1） M4x10 screws to secure the front （M)The back-bucket trim clips directly to steering iron to the ( J ) exhaust pipe. the back bucket. 1,Install the（K) mirror to the （H) window; 2. Install the window as a hole in the door;...
  • Page 13 The Wind Shield is inserted into the body slot. Plug the（I) red connector on the vehicle body into the red connector from the battery. 1. After the back of a （N)chair cushion embedded on the（A) car body, 2.Threatening the inserted into the back of a chair cushion, 3.the fixed seat with a screwdriver.
  • Page 14 Lights switch: Turns One button start: Press button to turn the vehicle lights on / vehicle on and off. off. Forward and backward switch: Press forward to move forward and backward to move backward. Player power supply display Play Increase volume music Deduce volume...
  • Page 15 SPEED SELECT FORWARD RIGHT BACKWARD LEFT STOP CAR SELECT How to operate: First, open the battery cover on the back of the remote control and insert two 1.5V AAA alkaline batteries. Note: Matching positive and negative ends prevents short circuiting power supply terminals. 1.Turn off the power supply and press CAR SELECT for 3-5 seconds When the light flashes, turn on the power supply.
  • Page 16 ·ONLY AN ADULT CAN CHARGEAND RECHARGE THE BATTERY! ·This product comes with charging protection.When charging, all functions will be cut off. 1.The POWER SWITCH must be in the OFF position when charging. 2.Prior to first-time use,charge the battery for 4-6 hours. Do not charge the battery for more than 10 hours in order to avoid overheating the charger.

  • Page 17: Troubleshooting Guide

    Troubleshooting Guide...
  • Page 18 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1)This product may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
