ENS Hexbeam Quick Start Manual

Broadband antenna

Advertisement

Quick Links

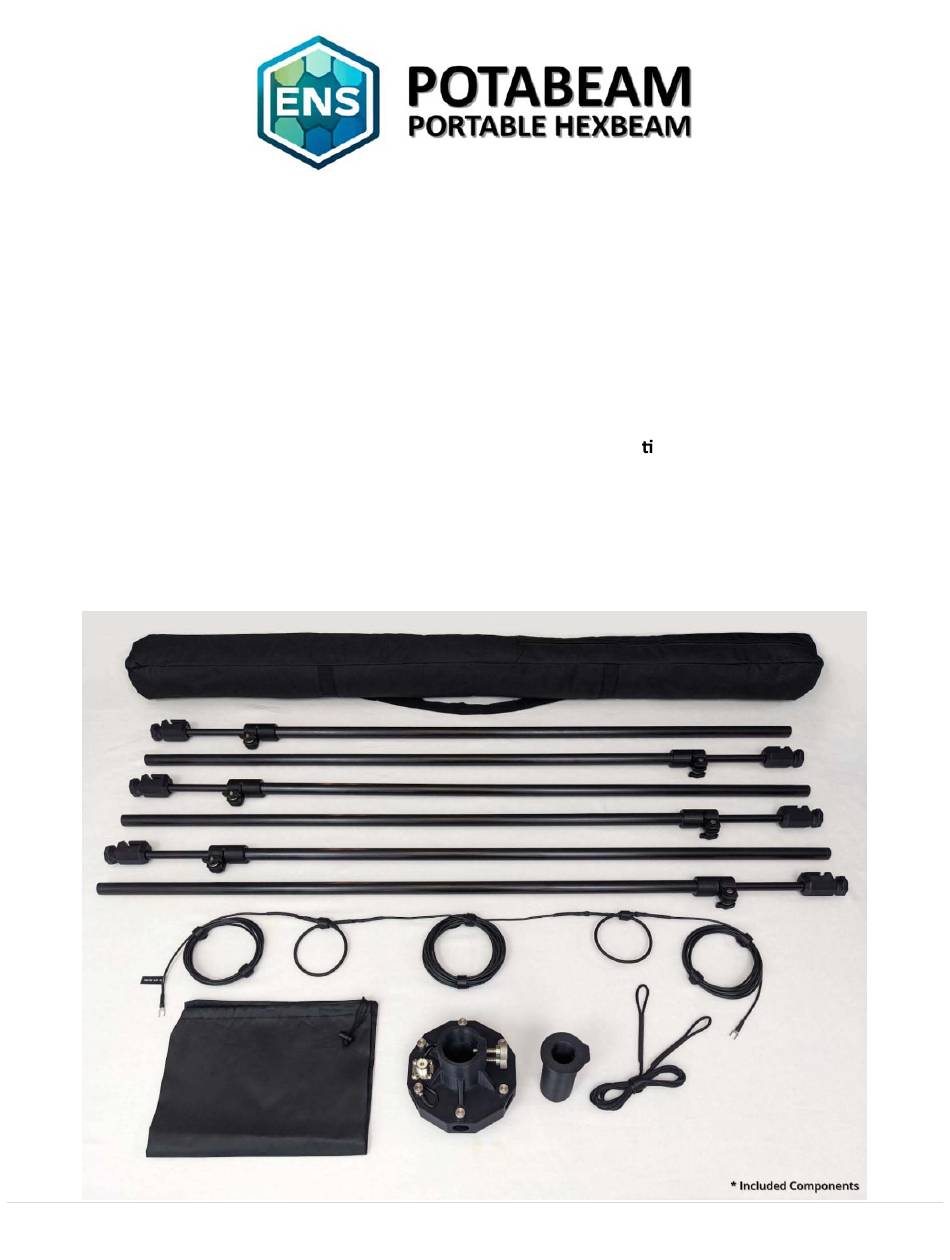

What is included:
a. DX-75+ Hexbeam Hub with 1" hub insert/spacer
b. 6ea telescopic fiberglass Spreader Arm sets with wire clasp ps
c. Assembled antenna wire with insolated Dacron cord spacers coated in marine grade
polyolefin polymer
d. Dacron cord with looped ends for spacer arms
e. Nylon spreader arm case and Hub drawstring bag

Hexbeam Broadband Antenna
Quick Start Guide

1 | P a g e


Advertisement

loading
Need help?

Need help?

Do you have a question about the Hexbeam and is the answer not in the manual?

Questions and answers

Summary of Contents for ENS Hexbeam

  • Page 1 Hexbeam Broadband Antenna Quick Start Guide What is included: a. DX-75+ Hexbeam Hub with 1” hub insert/spacer b. 6ea telescopic fiberglass Spreader Arm sets with wire clasp ps c. Assembled antenna wire with insolated Dacron cord spacers coated in marine grade polyolefin polymer...
  • Page 2   Quick Start Guide Con nued… STEP 1 - Moun ng Hexbeam Hub to Mast A. Determine mast outside diameter, if  one inch or smaller use Hub  Insert/Spacer.  If larger than one inch  remove the Hub Insert.    B. Loosen the two   stainless‐steel  ¼”‐ 20 mast thumbscrews so that bolts do  not extend into the mast opening.    C. Slide the Hexbeam Hub onto the  mast with the hub’s coax connector  facing downward towards the  ground and  ghten the stainless‐ steel mast thumbscrews to secure  the hub to the mast  Sketch 1: 2 | P a g e  ...
  • Page 3   Quick Start Guide Con nued… Step 2 – A ach Spreader Arm sets to Hexbeam Hub (Refer to Sketch 1)  A. Loosen all six   thumbscrews  8/32” un l the bolts no longer protrude  into the hub’s spreader arm socket.    B. Insert the spreader arms into the  hub’s spreader arm socket one at a  me.    C. Align the “Index Marker” on the  spreader arm with the  corresponding   thumbscrew on  8/32 the hub.      D. Hand  ghten the corresponding ...
  • Page 4: Step 5 - Final Step

      Quick Start Guide Con nued… Step 4 – Installing Antenna Wire and Cord A. Loosen one of the hub’s antenna wire  connectors (see Sketch 1) found on  either side of the SO239 coax  connector.    B. A ach one end of the wire’s U‐shaped  connector and  ghten the wire  connector terminal.    C. Route Wire as shown in “Sketch 1”  a aching the wire into each arm  p’s  Wire Clips.      D. A ach the end U‐shaped connector to  the other corresponding wire  connector terminal and  ghten.   ...
