Summary of Contents for Stoneridge BroadR-Reach EMOS II

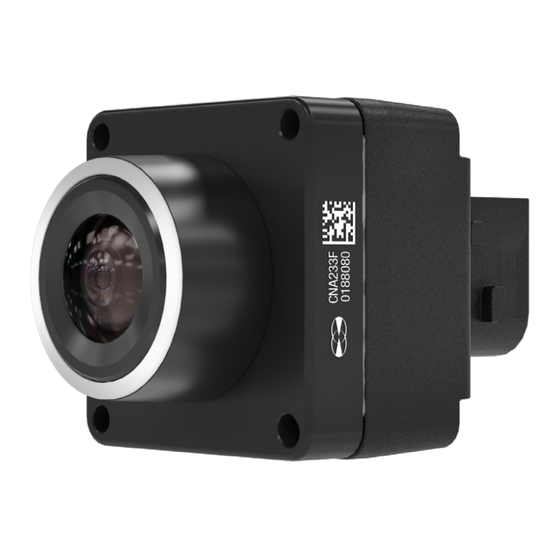

- Page 1 Camera EMOS II BroadR-Reach 12/2023 English IM0973593ENA01(current one), DS0961117ENA01 Article no. 0188080 camera 120º Article no. 0188090 camera 180º...
- Page 2 If you have any questions or issues concerning the operation of this equipment, consult the relevant section in the manual or contact the Orlaco Products BV. The camera/display systems from Stoneridge comply with the latest CE, ADR, EMC and mirror- directive regulations. All products are manufactured in accordance with the ISO 9001 quality...
-
Page 3: Table Of Contents
Contents Page Installation manual 1. Mounting and connecting Camera 1.2. Camera attachment 1.3. Mounting pattern / Drilling template 2. Pin connection 2.1 Camera EMOS II BroadR-Reach Back side of EMOS II camera 2.2 Connection 3. Specifications EMOS II BroadR-Reach 4. Maintenance and cleaning 5. -
Page 4: Mounting And Connecting Camera
1. Mounting and connecting Camera 1.2. Camera attachment. No mounting hardware (bracket) or mounting material (bolts M3) included. Caution: The mounting bolts of Camera should be tightened with Max. 0,5 Nm. Do not use liquid thread lock on M3 mounting. Recomended use of washers and nylon locking nuts. -
Page 5: Mounting Pattern / Drilling Template
1.3. Mounting pattern / Drilling template. 34,4 mm. 2. Pin connection 2.1 Camera EMOS II BroadR-Reach Back side of EMOS II camera: Rev/Ver Date Description Material: Tolerance 1: Unless otherwise indicated THIRD ANGLE Tolerance 2: Unless otherwise indicated AMERICAN PROJECTION All materials to be RoHS and REACH compliant Format: Article number:... -
Page 6: Connection
Caution: The overview and exploded view below is only an example. Stoneridge is not responsible for any changes to TE Connectivity part numbers. The manufacturer of the harness is responsible for using the correct parts. Below overview shows part numbers... -
Page 7: Specifications Emos Ii Broadr-Reach
Specifications EMOS II BroadR-Reach 3.1 Specifications Camera 0188080 Camera EMOS II 120° BroadR-Reach, LD Example article number: 0188090 Camera EMOS II 180° BroadR-Reach, LD For specifications see Datasheet: DS0961117... -
Page 8: Maintenance And Cleaning
This installation manual has been made available by Stoneridge. All rights reserved. No part of this manual may be reproduced and/or made public in printed form, in photocopy form or on microfi lm, or in any other way, without the prior written permission of Stoneridge. -
Page 9: Revision Details
7. Revisions A 01 First release; December 2023...
