Summary of Contents for Renaissance Cooking Systems REFR2B

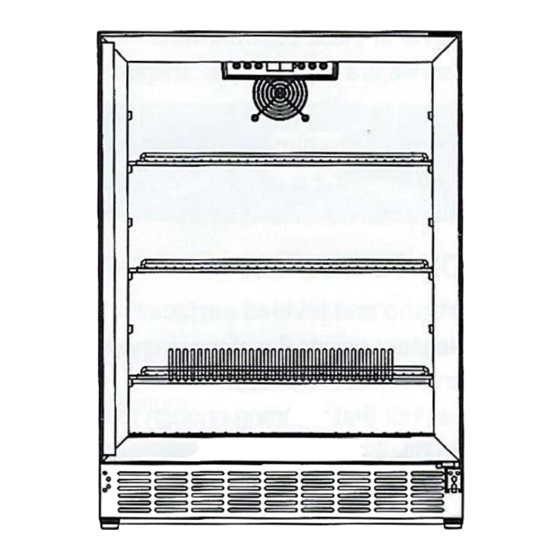

- Page 1 Renaissance Cooking Systems REFR2B Owner’s Manual RCS Indoor & Outdoor Electric Refrigerator PLEASE READ THE MANUAL THOROUGHLY PRIOR TO EQUIPMENT SET-UP, OPERATION AND MAINTENANCE. May 2021 This owner’s manual was updated www.RCSGasGrills.com SAVE THESE INSTRUCTIONS - 1 - | P a g e...
-
Page 2: Installation
INSTALLATION IMPORTANT!!! PLEASE READ BEFORE INSTALLATION ■ The appliance is designed for built-in, recessed or free-standing installation. ■ Remove exterior and interior packaging. ■ Use two or more people to move or install appliance. Failure to do so can result in back or other injury. ■... -
Page 3: Installing The Stainless Steel Handle
INSTALLING THE STAINLESS STEEL HANDLE Open door, pull back left side gasket to reveal screw holes. Take out the screws from bag in cabinet. Put the screws in the holes where the handle is to be installed. Align the handle with screws, tighten the screws using the screw driver until the handle is both flush and secured tightly against the door side. -
Page 4: Extension Cord
ELECTRICAL Please ensure that the required voltage of the compressor is being supplied at all times (110-120v AC). Low or high voltage can detrimentally affect the refrigeration unit. The power cord of this appliance is equipped with a three- prong plug which mates with standard three-prong wall outlets to minimize the possibility of electrical shock. -
Page 5: Safety Warning
SAFETY / WARNING Please pay close attention to the safety notices in this section. Disregarding these notices may lead to serious injury and/or damage to the unit. ATTENTION ■ To minimize shock and fire hazards, be sure not to overload outlet. Please designate one outlet for your unit. -
Page 6: Regular Maintenance
CAUTION!!! ■ Do not attempt to remove or repair any component unless instructed by factory. ■ Make sure that the unit is not resting on or against the electrical cord and plug. ■ To minimize personal injury, do not hang on the doors. ■... -
Page 7: Power Failure
■ Check door gaskets for proper seal after they are replaced. ■ Periodically remove the shelves and clips from the unit and clean them with mild soap and warm water. To remove the clips, first remove the shelves and shelf brackets. Then, simply lift the clip up and out. ■... -
Page 8: Moving Your Appliance
MOVING YOUR APPLIANCE Remove all items. Securely tape down all loose items (shelves) inside your appliance. Turn the adjustable legs up to the base to avoid damage. Tape the door shut. Be sure the appliance stays secure in the upright position during transportation. Also, protect the outside of the appliance with a blanket or similar item. -
Page 9: Troubleshooting
TROUBLE SHOOTING Before requesting any service on your unit, please check the following points. Please note that this guide serves only as a reference for solutions to common problems. SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Compressor Fuse blown or circuit breaker tripped. Replace fuse or reset circuit not running. - Page 10 Cabinet is Loose part(s). Locate and tighten loose noisy. part(s). Tubing vibration. Ensure tubing is free from Fan is unbalanced. contact with other tubing or components. If the compressor is hot, the Fridge not Compressor or Relay's Have Failed compressor has failed. cooling but If the compressor is cold, the internal...
- Page 11 Parts Diagram Parts List Number Description Quantity Cabinet Wire Shelf Slide Set Level Adjuster Door Gasket Door Key Upper Hinge Lower Hinge - 11 - | - 3 - | P a g e P a g e...
- Page 12 Renaissance Cooking Systems Product Warranty RCS is proud to provide the industries most comprehensive warranty program. All RCS refrigeration and sink products are warrantied to be free from manufacturer defects for 5 years to the original owner. This RCS warranty is effective for product sales beginning January 1st, 2020.
