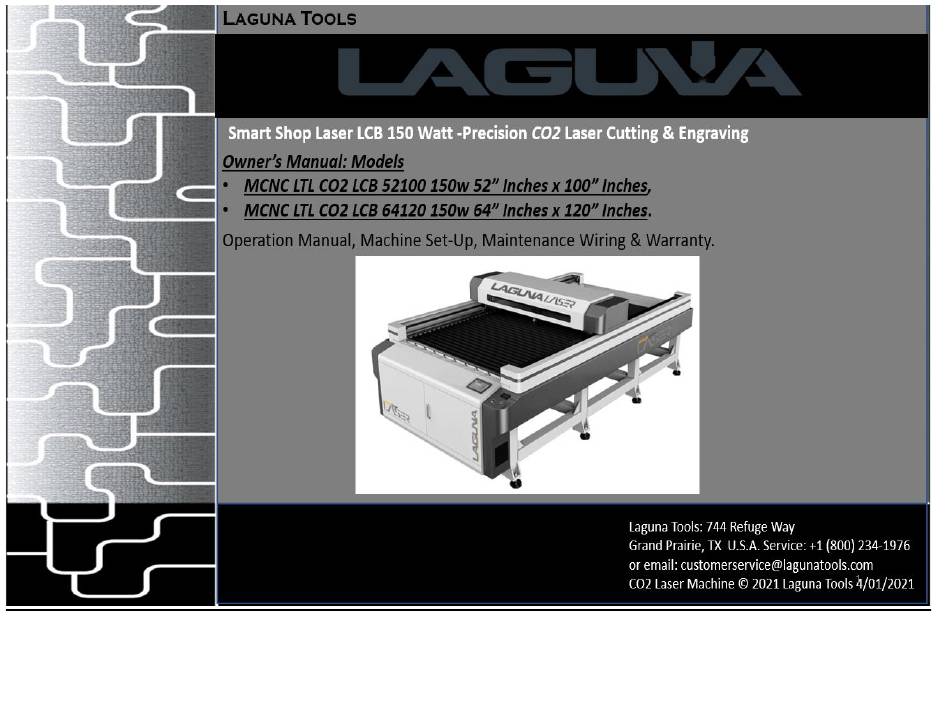

laguna Smartshop Laser LCB Owner's Manual

150 watt -precision co2 laser cutting & engraving

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the Smartshop Laser LCB and is the answer not in the manual?

Questions and answers

Summary of Contents for laguna Smartshop Laser LCB

Page 2: Table Of Contents
Table of Contents- • Machine Briefing & Safety 1.1.) Laser engraving cutting system introduction. 1.2.) Software supported file formats. 1.3.) Environmental Requirements. 2.) RDC644XG Controller. 3.) Installation of Controller. 4.) Picture of Controller. 5.) Interface Signal of Controller. 6.) Brief Introduction of Controller. 7.) Interface Example of Ste-Servo Motor Diver.
Page 3: Machine Briefing & Safety
Machine Briefing- The Laguna Smartshop LCB Laser is a powerful CO2 laser cutter and engraver that comes packed with user-friendly features to make operation a breeze. The LCB comes with a specialized linear guide rail system for increased accuracy and longevity. With a 150W laser tube packed inside, this machine has no trouble with thick acrylic or other materials.
Page 4 Features: Reci Laser Tube 150Watts. Wifi Enabled. Precision Drive Motors. HiWin Linear Guide Rails. Japanese Electric Components. Class IV Laser Product- Out-Put (Max. Avg.): 150Watts Wavelength: 10.6μm. Complies with 21 CFR 1040-104: A Federal Regulation which applies to a Laser Products- Which is defined: Any manufactured product or assemblage of components which constitutes, incorporates, or is intended to incorporate a laser or laser system.
Page 5 Note!: This laser cutting machine is a GB4 laser product, while using please pay attention to laser radiation, to avoid the eyes or skin exposure to direct or scattered radiation. This Instruction is applicable to the (2) Laguna Laser Engraving Machine(s): 1.) MCNC LTL CO2 LCB 52100 150w 52” Inches x 100” Inches.
Page 6 Tracking Info. on CO2 Laser Tube...
Page 7 Lead-Shine Stepper Motor DM860 Motor (Characteristics) Lower Noise- Low Vibration- Motor runs more smoothly- Motor has a Higher Torque- Motor has higher acceleration output- Motor has higher precision capabilities- Motor has better acceleration performance- Taiwan Hiwin Linear Guide Rail -Adopted Taiwan Hiwin linear guide rail high positioning accuracy, scroll guide, less wear to maintain accuracy for a longer time.
Page 8 High Efficiency Air Filters ***(Filters are not Included with Smart Shop Co2 Laser LCB)- Environmentally friendly and pollution-free laser can be directly used indoors. Tertiary Filtration- •Filter Large Particles in Bags. •HEPA Filtration larger than 0.03UM Particle. •Activated Carbon Adsorption System.
Page 9 Technical Parameters-...
Page 11 The laser engraving machine uses AC220V/60HZ-Alternating Current (AC). If the local voltage is unstable, please install a voltage regulator to ensure the normal use of laser engraving machine. Please turn off the power switch of the laser engraving machine when plugging and LAGUNA LASER unplugging the power.
Page 12 • If unauthorized, please do not modify the product without authorization, Laguna Tools will not be responsible for the consequences arising therefrom!
Page 13 Warning: • When it is necessary to open the cabinet, must be the Machine must be turned off after 5 minutes and under the guidance of experts, only allow access to the components inside the electric control cabinet! • When the machine is running, it is forbidden to touch any moving parts or open the control cabinet, otherwise it may cause personal injury or cause the machine to not work! It is forbidden to operate the equipment in a humid, dusty, corrosive gas and flammable and explosive gas environment, otherwise it may cause electric shock or fire disaster!
Page 15 After the engraving machine receives the file, one can press the start button to locate the positioning with red light, and then start the processing. (Red light positioning: Open the cabinet before processing, and then press the start button At this time, if the laser tube does not emit laser, you can observe whether the processing position is accurate, to avoid waste due to inaccurate positioning.
Page 16 Read the instructions carefully before operating: 1.) One needs to operate the Water Pump to fill the laser pipe with water before operating the fiber laser machine. One needs to check the recycle/running water system during working time of the machine to prohibit any blockages of the cooling system within the water pipe.
Page 17 7.) One should not unpack the machine by oneself and another unprofessional person who does not have experience with fiber and high voltage devices. 8.) Please cut off or disconnect the electric source immediately, when the machine is disabled or on fire. 9.) The operator should check on any irregular conditions during the machine’s performance (such as abnormal sounds, spike in temperature when water is cycling, etc.).
Page 18 13.) Please pay more attention on the speed and intensity during machines performance when you are processing combustible goods, such as paper, wood etc. If the intensity is very high and the speed is slow, it will be easier to damage the lens by flame that produced by cutting process. 14.) For the initial users of irregular work piece processing, we must first read light positioning to determine whether the processing location is accurate, otherwise it is easy to produce waste products.
Page 19 18.) How to save time: In the mass production of small size products of the same specification (such as 75X25mm badge), the maximum width of X direction should be less than 300mm, which can make the backward laser head faster, thus improving the speed. The resolution can be reduced to speed up the bitmap carving.
Page 20 Laser Engraving Machine Accessories:...
Page 21 The Light Path Adjustment: Focal Lens Adjustments- To make cuts and engravings on different materials, the operator will need to adjust the focal length according to the material’s properties. This is either done using the lift bed and the focal length sensor, or by adjusting manually.
Page 23 The laser will enter the head assembly and concentrate via the focal lens. Making sure that the laser has a correct (F) Focal Spacing, is extremely important to the quality of the process. This is done automatically via the Automatic Focusing Focus Focal Sensor. The pre-installed lens is 20 mm in diameter, made of ZnSe through the particle vaper deposition process (PVD), and has a focal length of 63.5 mm (2.5 Inches).
Page 28 Focal Lens Adjustments- M1 up and down, M2 around, M3 Angle, three screws, through the three screws to determine the Angle of the mirror. When adjusting the optical path, the laser reflection Angle can be changed by adjusting the three screws to realize the purpose of optical path adjustment.
Page 29 Dimming Considerations: 1.) Be careful to prevent laser burns when adjusting the light path. Especially when there is no experience or large-scale adjustment, there may be interference deviation due to the optical path to avoid personal injury. When adjusting the light path according to the TEST of the panel, please stand on the rear side of the reflective lens, that is, the opposite direction of the light path transmission.
Page 30 cooling water in cold areas must not be frozen, especially after the laser is stopped, the cooling water must not be stored in the laser tube, to prevent the cooling water from freezing and causing bursting (special attention: users using AC Tubes, the cooling water tank must be grounded). 2.) If a water pump is used for cooling, it is required to ensure that the flow rate of cooling water is 2L- 4L/min or .53-1.06 gal/min., if the cooling effect is not good, it will cause film jumping and lead to power reduction.
Page 31 6.) Please Note: The thin metal wire on the electrode cannot be removed. This metal wire is used to ensure that the electrode and the inner surface of the output window have the same potential, to prevent the inner surface of the output window from being burned, and to extend the service life of the laser.
Page 32: Laser Engraving Cutting System Introduction
Chapter 1 Overview- 1.1.) Laser engraving cutting system introduction Laser engraving cutting system through a computer numerical control machine tools to achieve effective control, according to the user’s different requirements of the completion of processing tasks. 1.2.) Software supported file formats-Vector format: dxf, ai, plt, dst, dsb…etc。 Bitmap format：bmp, jpg, gif, png, mng,…etc。...
Page 33: Rdc644Xg Controller
Chapter 2-RDC644XG Controller User Operations- 2.1 Briefing RDC644XG System is a new generation system for control of laser engraving and cutting, which is developed by RD technology, Ltd. High hardware stability, high voltage, or static electricity rejection, and friendly 3.5TFT man-machine display. This system is provided with stronger software function including perfect 4-axis motion control function, large-capacity file storage, two-channel adjustable digits laser power control interface, USB driver of stronger compatibility, multi-channel general/special IO control, and this system can communicate with...
Page 34 2.3 Comparison of Controller Performance-...
Page 37: Installation Of Controller
Chapter 3 Installation Size- 3.1 Installation Size of Controller- The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm (the four holes are symmetrical). 3.2 Size of Panel- The unit of all sizes is millimeter (mm) and the size accurate to 0.1mm.
Page 38: Picture Of Controller
Chapter 4 Controller Real Picture and Interface- 4.1 Picture of Controller- For more detailed pin description, see the Chapter 5: Description of Interface Signal for Controller.
Page 39 4.2 Pictures of Panel-...
Page 40 4.3 Electrical Connection of Control System-...
Page 41: Interface Signal Of Controller
Chapter 5 Interface Signal of Controller- 5.1 Interface of Main Power Source CN0- 5.2 Controller-Display panel Interface HMI: The connecting wire is parallel line of pin-to-pin. 5.3 U-Disk Interface- U-Disk is a USB-AM interface; The controller visits the u-disk by this interface. 5.4 PC-USB Interface- PC-USB is a USB-BM interface.
Page 42 5.6 General /Dedicated Output Port CN1- Definition of general/dedicated output port.
Page 43 5.7 General /Dedicated Input Port CN2-...
Page 44 5.8 4-Axis Limit Input Interface CN3/CN4- X/Y Axis Limit Input CN4- The limit polarity is optional, that is to say, when the motion axis reaches the limit position, it will trigger a low-level signal so as to make the corresponding LED (under the cover) light; when the motion axis leaves the limit position, it will trigger a high-level signal or disconnect the limit signal so as to make the limit indicator go out, but when it leaves the limit, the corresponding indicator will light and the limit polarity become positive.
Page 45 5.9 X/Y/Z/U-Axis Motor Driver Interfaz AXIS_X~AXIS_U- The interfaces of the four-motion axis are the same. The AXIS-X interface is exampled. The polarity of directional signal for driver pulse signal can be set. Where a certain axis is reset, it will move to the opposite direction of machine origin, which means the polarity of directional signal for this axis is not correct.
Page 46 5.10 Laser Power Control Interface CN5/CN6- This control system has two independent and adjustable digital laser power control interfaces. Signals of the two interfaces are similar and the first digital interface (CN5) is hereby example:...
Page 47: Brief Introduction Of Controller
Chapter 6 Examples of Laser Power Interface- 6.1 Brief Introduction- This control system has two independent and adjustable digital laser power control interfaces, which can be used to control glass tube laser power and RF-laser. ***Please correctly select the laser type in the factory parameters when connecting to different laser types, otherwise, the laser switching is incorrect.
Page 48 6.2 Examples of Glass Tube Laser Power-...
Page 49 6.3 Examples of RF- CO2 Laser-...
Page 50 Chapter 7 Interface Examples of Step-Servo Motor Driver- 7.1 Brief Introduction- The input signal end of step-servo motor driver employs the opto-isolator technology. For the step pulse signal, some isolate the side OC diode from cutoff to conduction (e.g., the valid falling edge of pulse signal inputted from the diode minus end) and some do so from conduction to cutoff (e.g., the valid rising edge of pulse signal inputted from the diode minus end).
Page 51 RDC644XG controller must be common anode with the motor driver. The polarity of the direction signal can be changed in the factory parameters, and the valid edge of the pulse signal can also be changed. Figure: 7.1-1 Four Inputs, Figure: 7.1-2 Three Inputs, Common- Anode Input Signal of Driver Independent Input Signal of Driver...
Page 52 7.2 Examples of Motor Driver Connection-...
Page 53: Examples Of I/O-Port Wiring
Chapter 8 Examples of IO-Port Wiring- 8.1 Input Port- The two water protection inputs are WP1 and WP2 with 24V logic level; all other inputs are compatible with 5V/12V/24V logic level. Input connection is shown as below: Figure 8.1-1 Input Example...
Page 54 8.2 Output Port- All outputs are isolated through the optocoupler, and 500mA current for each, OC gate output, each can directly drive the 6V/24V relay, led lamp, buzzer etc. Output connection shown as below: Figure 8.2-1 Output Example...
Page 55 Chapter 9 Human-Computer Interface Operating Instruction- 9.1 Panel and Keys- 9.1.1 The Operation Panel- 9.1.2 Introduction to the Keys-...
Page 56 9.1.2 Introduction to the Keys (Cont’d.)-...
Page 57 9.2 Main Interface Introduction- 9.2.1 The Main Interface- When the system is powered on, the screen will show as below: Figure 9.2-1...
Page 58 9.2.1 The Main Interface (Cont’d.)- • Graph Display Area: To display the whole file’s track and display the running track. • Running parameters display area: To display the running file’s file number, speed, max power etc. • Coordinate display area: To display the current coordinate of X, Y and Z Axis. •...
Page 59 9.2.1 The Main Interface (Cont’d.)- When work is idle or finished, all keys can be pushed, users can select a file to run, set some parameters, preview to a select file etc. but, when work is running or paused, some keys will not respond when they are pushed.
Page 60 9.2.3 Max./Min. Power Keys- Push the “Max Power” or the “Min Power” keys when the screen is on the main interface, it will show as below: Figure 9.2-3...
Page 61 Figure 9.2-4 When “Z/U” key is pushed, the green block can move up and down to denote the changing item, then “Y+/-” keys and “X+/-” keys can be used to change the value.
Page 62 9.2.4 Layer Parameters Setting- After selecting a file to preview on the main interface, user can push “Enter” key to let the cursor move to the first layer, then “Y+/-” Keys can be pushed to select the intent layer, on that time, user can push “Enter”...
Page 63 9.2.4 Layer Parameters Setting (Cont’d.)- Figure 9.2-6 User can push “Z/U” Keys to move the green block on the intent parameter, then to change the parameter if needed. “OK” to validate the change, and “Esc” to invalidate the change.
Page 64 9.3 Z/U Key Menu- The Z/U key can be pressed when the system is idle, or the work is finished. On pressing this key, it will show some entries in the following interface: Figure 9.3-1 Push “Y+/-” keys to move the green block to the anticipant item, and then push the “Enter” key to display the sub menu.
Page 65 9.3.3 Axes Reset+ When the green block is on this item, push the “Enter” key to show as below: Figure 9.3-2 Push the “Y+/- “Keys to move the cursor to one of the entries, then push “Enter” key to restart the selected axis, the screen will show some information when resetting.
Page 66 9.3.4 Manual Set+ Figure 9.3-3 Push “Z/U” key to move the green block, and when the green block is on the “Mode” item, push “X+- “keys to select the anticipant value, “Continue” or “Manual”. When “Continue” item is selected, then the “Manual” item is not valid, on that time, push the direction keys to move the corresponding axes, and when the pushed key is loosed, then the corresponding axes will finish moving.
Page 67 9.3.5 Laser Set+ When the green block is on this item, push the “Enter” key to show as below: Figure 9.3-4 Push “Z/U” key to move the green block, and when the green block is on the “Mode” item, push “X+- “keys to select the anticipant value, “Continue”...
Page 68 9.3.6 Origin Set+ When the green block is on this item, push the “Enter” key to show as below: Figure 9.3-5 Push “Z/U” key to move the green block to the anticipant item, and when the green block is on “enable” items, push “Enter”...
Page 69 • Origin Enable1/2/3/4: After the multiple-origin logic is enabled, the four origins can independently be prohibited and enabled. • Set Origin 1/2/3/4: After the multiple- origin logic is enabled; you can stop the cursor at “Set as Origin 1/2/3/4”. Press the “Enter” key on the keyboard and the system will take the coordinate figures of current X/Y axis as the corresponding ones to the origin 1/2/3/4.
Page 70 9.3.7 Set Factory Para- After the “Set Fact Para” is selected and the Enter key pressed, the interface will show the specific password to be entered when set as default parameter. Figure 9.3-6 Push “X+/-” keys and “Y+/-” keys to select the characters and push the “Enter” key to valid the characters, when finishing entering the password the six characters, if the password is error, it prompts there is some error, or, all parameters are stored.
Page 71 9.3.8 Def Factory Para- After the “Def Fact Para” is selected and the Enter key pressed, the “Successful Recovery” dialog box will pop up to prompt that all manufacturer parameters and user parameters are recovered successfully. You can return to the previous menu by press the Enter key. 9.3.9 Auto Focus- When the cursor stops at “Auto Focus”, press the Enter key to search for the focus automatically.
Page 72 9.3.11 IP Setup- When the green block is on this item, push the “Enter” key to show as below: Figure 9.3-8 Push “Z/U” key to move the changing item, then push “X+/-” keys and “Y+/-” keys to change the value, when all the IP value and the Gateway value are changed, push “Enter” key to validate the change, or “Esc”...
Page 73 9.3.12 Diagnoses- If the “Diagnoses” item is pressed, the system will show as below: Figure 9.3-9 This interface shows some system input information, such as limiter status, the status of the water protecting, and the status of the foot switch etc.. When the input is validated, the color frame will be green, otherwise it is gray.
Page 74 9.3.13 Screen Origin- If the “Screen Origin” item is pressed, the system will be showed as below: Figure 9.3-10 This function is to set the screen origin position, to choose different origin position, which can mirror the graphics on X/Y direction. The operation way as above mentioned.
Page 75 9.4 File Key- 9.4.1 Memory File- On the main interface, if “File” key is pressed, it will be showed as below: Figure 9.4-1 When showing this menu, the system would read the memory file firstly, the file name and the work times would be listed in the area, and the selected file is previewed in the bottom right area.
Page 76 9.4 File Key (Cont’d.)- “X+/-” keys could be used to move the cursor left and right. All the items show as below: • Read mem file: Read the memory file list. • Disk: Read the U-Disk file list. • Other: The other operation of the memory files. •...
Page 77 9.4 File Key (Cont’d.)- If the “Other” entry is pressed, the system will be showed as below: Figure 9.4-2 • Current Work Time: To forecast the running time of the current file (The current file No. is showed on the main interface), and the time is accurate to 1ms. •...
Page 78 9.4.2 U Disk File- If press “Disk” entry in Figure 8.4-1, the system will show as Figure 9.4-3, and the operation method is the same as Figure 9.4-1. Figure 9.4-3 • Read Disk: Read the file list in the U-Disk. •...
Page 79 9.5 Alarm Information- When users are operating the system, or when the machine is running, some alarm information such as water protecting error maybe popped-up as below: Figure 9.5-1 Push “Enter” key or “Esc” key, the system will execute.
Page 80: Manufacturer/User Parameters Details
Chapter 10 Manufacturer/User Parameters Details- 10.1 Manufacturer Parameters- （1）Motor parameters X/Y/Z/U-Axis Parameters Direction Polarity: Modification of direction polarity can move the motor to the opposite direction. The modification purpose can move this axle to the origin on resetting. If this axle moves far from the origin on resetting, it means the direction polarity of this axle is wrong in setting and should be modified.
Page 81 10.1 Manufacturer Parameters (Cont’d.)- Hard-Spacing Protection: it is used for whether the hard-spacing protection of this axle is enabled. Reset Enable: if the machine is provided with this axle, its “Reset Enable” should be opened; if no, its “Reset Enable” should be prohibited. Motor Stepping: it means the impulse equivalent, the absolute distance by the corresponding motion axle when a pulse is delivered to the motor.
Page 82 10.1 Manufacturer Parameters (Cont’d.)- Maximum Acceleration: it means the maximum acceleration of the motion axis in accelerated or decelerated motion. If the acceleration is set too large, it will make the motor lose steps, jar and even squeak; if too small, it will cause the reduction of acceleration to reduce the running speed of the whole figure.
Page 83 10.1 Manufacturer Parameters (Cont’d.)- (2) Laser Parameters Laser Tube Configuration: single laser and double lasers are available for option and set-in accordance with the laser-tube quantity provided by the manufacturer. Laser Type: glass tube, RF laser (not need pre-ignition pulse) and RF laser (need pre-ignition pulse) are available for option.
Page 84 10.1 Manufacturer Parameters (Cont’d.)- Water Protection Enables: When the water protection enabled, the controller must connect the wiring, otherwise the machine will not emit laser. If disable, no need to connect the water protect wiring, controller will not test. Laser PWM Frequency: is used to set the pulse frequency of control signal used by the laser, in general, glass tube is about 20KHZ, RF laser is about 5KHZ;...
Page 85 10.1 Manufacturer Parameters (Cont’d.)- Feeding Mode: Single-way mode and two-way mode for optional. If it is single-way feeding, it is unnecessary to check the coordinates, feeding can be conducted in the single-way mode; if it is two-way feeding, the system will check the maximum and minimum coordinates. The odd sequence means feeding should be done to one direction and the even sequence means feeding done to the other direction.
Page 86 10.1 Manufacturer Parameters (Cont’d.)- (4) Enable Parameters Cover Opening Protection: If enabled this item, the controller must connect the protection wiring, otherwise, the machine will not work. Enable the Blower: if use Wind signal of output port to control the blower switch as layers, you must enable this item, otherwise, the Wind signal outputs another signal.
Page 87 10.2 User Parameters (Cont’d.)- Idle Move Acceleration: It means the highest acceleration of all non-lighting lines. Idle stroke speed and idle stroke acceleration can be set higher to reduce the working time of the whole figure, but if they are set too high, it may cause the jarring of track, so comprehensive consideration should be given to the setting.
Page 88 10.2 User Parameters (Cont’d.)- (2) Scanning Parameters (Only affect scanning mode) X- Axis Starting Speed Y- Axis Starting Speed X- Axis Acceleration Y- Axis Acceleration The above four parameters are used to set the starting speed and acceleration of two axles when scanning.
Page 89 10.2 User Parameters (Cont’d.)- Spot Size: When the general mode is selected as the scanning mode, this parameter will become ineffective; when the special mode is selected, this parameter will become effective. The controller will control this parameter among 50%~99%. (3) Feeding Parameters- Before-Feeding Delay: can be set 0~300s, the upper axis will be moved after the last processing finished and delay this item.
Page 90 10.2 User Parameters (Cont’d.)- (4) Reset Parameters- Reset Speed: it means the speed of X/Y-axle linkage reset to the origin. 1) X- Axis Startup Reset 2) Y- Axis Startup Reset 3) Z- Axis Startup Reset 4) U- Axis Startup Reset One can select “Yes”...
Page 91 10.2 User Parameters (Cont’d.)- Margin Distance: It means whether to extend a certain length outside the actual frame of the figure on the preview/cutting of frame. 10.2 User Parameters (Cont’d.)- (6) Other User Parameters Array Mode: Two-way array or one-way array can be selected. Two-way array means the to-and-fro cutting of array in sequence;...
Page 92 * Any machines returned to Laguna Tools must be returned with packaging in the same way it was received. If a part or blade is being returned it must have adequate packaging to ensure no damage is received during shipping. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.
Page 93 Warranties (Cont’d.)-...
Page 94 Laguna Tools Customer Support Website. The labor required to install replacement parts is the responsibility of the user. Laguna Tools is not responsible for damage or loss caused by a freight company or other circumstances not in our control. All claims for loss or damaged goods must be notified to Laguna Tools within twenty-four hours of delivery.
Page 95 Warranties (Cont’d.)- Dealer Machinery Warranty **Any machines returned to Laguna Tools must be returned with packaging in the same way it was received. If a part or blade is being returned it must have adequate packaging to ensure no damage is received during shipping.
Page 96 Laguna Tools Packaging/RMA Procedures- Warranties (Cont’d.)-...
Page 97 Warranties (Cont’d.)- Laguna Tools Packaging/Laguna Tools BILL of LADING Example-...
