Avocent Cyclades OnBoard Install Manual

The following instructions will help you
install and use your SP manager.
Should you require further assistance, please
contact Avocent Technical Support.
1

Rack mounting the SP manager

For detailed rack mounting instructions, see
the installer/user guide.
2

Connecting to your network

Connect a CAT 5 cable from the 10/100BaseT
port(s) to your network. For more about the
options for configuring the public Ethernet ports,
including setting up failover, see the OnBoard
Installation Guide and Administrator Guide.
3

Connecting devices

Connected devices should not be accessible on
the public network. See preparation steps in the
installation guide.
Connect a standard Ethernet cable from a
private Ethernet port on the OnBoard appliance
to any of the following types of Ethernet ports
on the other end:
• An Ethernet port on a service processor
• An Ethernet port on a router or other device
that gives access to the device's console
• An Ethernet port on a blade server
managing multiple blade service processors
To Contact Avocent Technical Support
Avocent, the Avocent logo, The Power of Being There and Cyclades are registered trademarks of Avocent Corporation or its affiliates. ©2006 Avocent Corporation. All rights reserved.

Quick Installation Guide

Cyclades
Service Processor (SP) Manager

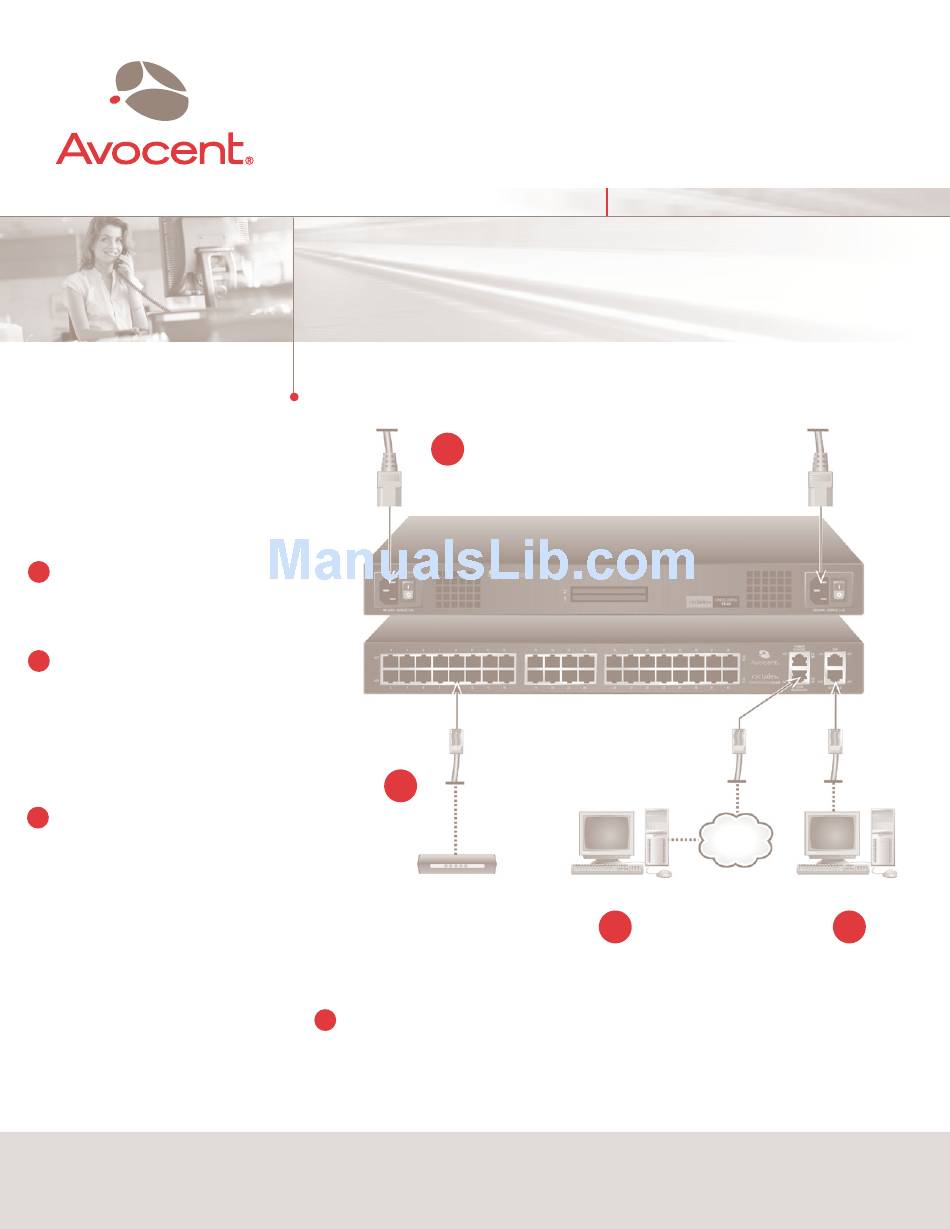

To install the service processor manager
5
Connecting
the power.
3
Connecting
devices.
Ethernet Device
4

Connecting to the Console port

Using one of the supplied RJ-45 console adaptors,
connect a terminal or server to the Console port on
the SP manager. The appliance will be configured
CALL (888) 793-8763 VISIT www.avocent.com/support
The Power of Being There
OnBoard
®
40 private Ethernet ports
Remote User
2
Connecting to
your network.
using a terminal or terminal emulator with session
settings of: ANSI emulation, 9600, 8, N and 1, with
no flow control.
®
Internet
Console User
4
Connecting the
console server.
DOWNLOAD www.avocent.com
590-661-501A
