Silver Spas TP600 Quick Reference Manual

Start up
When the spa is switched on, a strat up sequence
of numbers will appear on the display. If no button is
pressed, LINK will appear after the start up sequence.
Press any button to link the panel with the system.
The spa will enter Priming Mode. After Linking, press
the Jets Button(s) to turn the pumps on and
off to verify that all air is purged from the plumbing,
particularly the plumbing associated with the heater.
If the spa has an Eco Filtration Pump, the light
Button turns the Circ Pump on and off during Priming
Mode. Priming Mode will end automatically in 4
minutes. Pressing Temperature Button Down t will
exit Priming Mode manually. When Priming Mode
ends, Pump1 low will start if no Circ Pump is present,
however the water temperature will not appear
for a minute or so. Once the water temperature is
recognized by the system, and if it is below the Set
Temperature, the heater will start.
Default Pre-Set
The default preset temperature is 38°C in Ready Mode
Warm. The Filter Cycles are 8:00 to 12:00 and
20:00 to 0:00
Temperature Adjustment

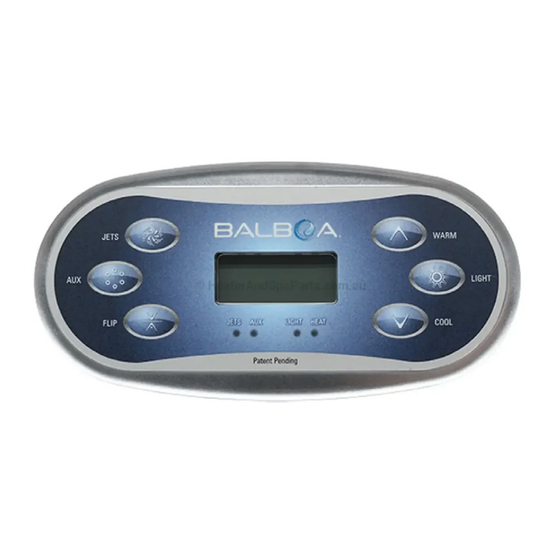

TP600 touch pad has the Up ↑ and Down ↓ buttons
as Temperature Buttons, while TP400 only has a single
Temperature Button.
Press the Warm Button
Set Temperature will begin to flash on the LCD. (The
Set Temperature and the actual water temperature
are often different.) While the numbers are flashing,
press the Warm Button again to change the Set
Temperature. Press-and-hold for faster adjustment.
After the new Set Temperature stops flashing, in about
10 seconds, the actual temperature is displayed again
and the new Set Temperature is programmed. The spa
will now heat to the new Set Temperature as needed.
TP600 Quick Reference Guide
once and the current
Set the Time-of-day
Press , then repeatedly press
appears in the LCD. Press
press to set and move to minutes. Press
set the minute. Press
go back to the Main Screen.
Dual Temperature Ranges (High Vs Low)
This system incorporates two temperature range
settings with independent set temperatures. The High
Range is indicated in the display Range up ↑. The Low
Range is indicated in the display Range down ↓.
To change the Temperature Range, press
, and press to toggle the Range arrows in the
LCD. Press or wait for 10 seconds to go back to
the Main Screen.
These ranges can be used for various reasons, with
a common use being a 'ready to use' setting Vs a
'vacation' setting. Each range maintains its own set
temperature as set by the user. This way, when a range
is chosen, the spa will heat to the set temperature
associated with that range.
High Range can be set between 26.5°C to 40°C.
Low Range can be set between 10°C to 36°C.
Setting Ready and Rest Mode
READY mode will circulate water every 30 minutes in
order to maintain a constant water temperature, heat
as needed, and refresh the temperature display.
REST mode will only allow heating during programmed
filter cycles. Since polling does not occur, the
temperature display may not show a current
temperature until the heater pump has been running
for a minute or two.
Press , then press
appears in the LCD. Toggle between READY and REST
until 'TIME'
to select the hour and
or wait for 10 seconds to
then
repeatedly until 'MODE'
to
