Summary of Contents for Inficon IFCBT-Dongle

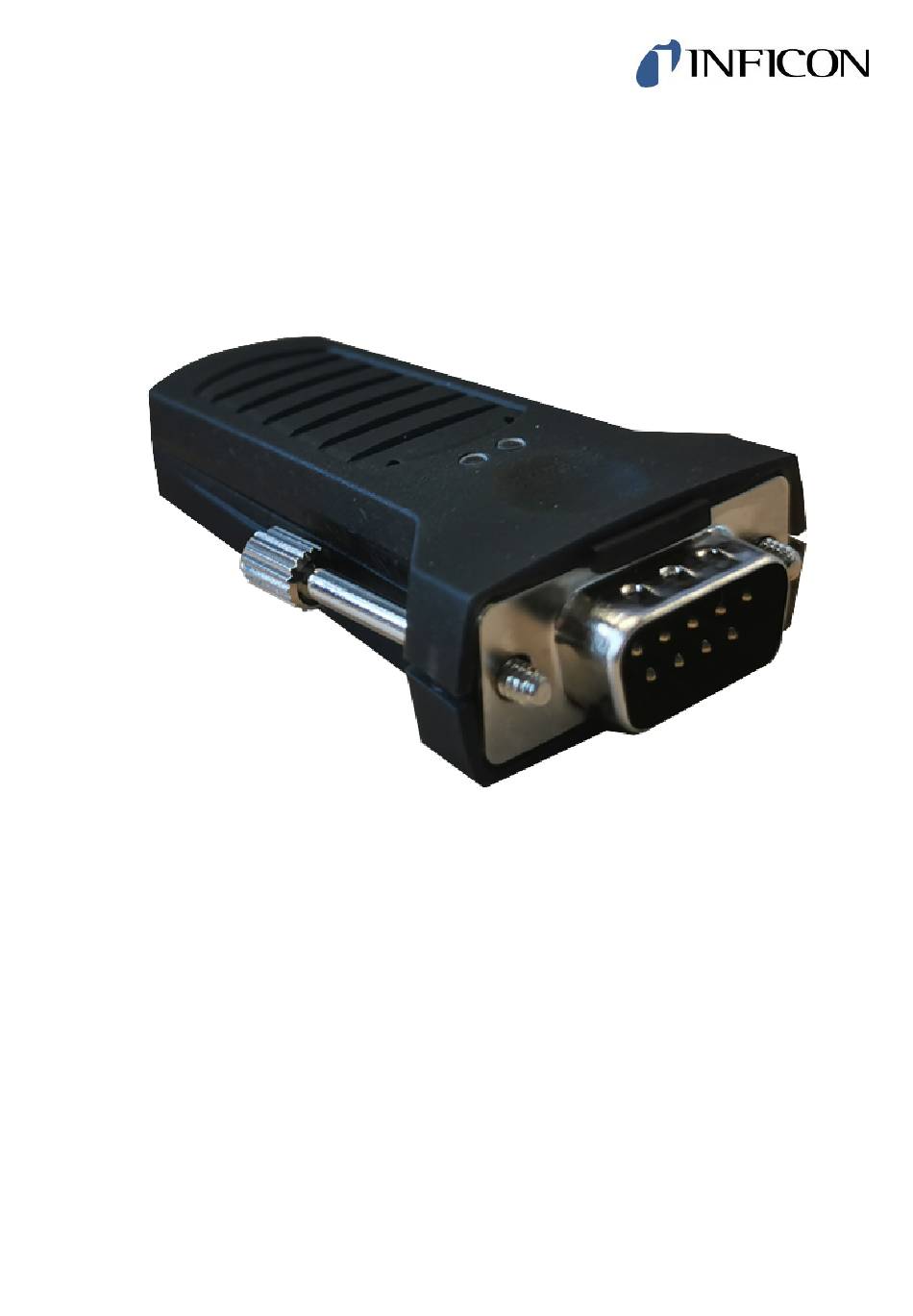

- Page 1 Translation of the Original Operating instructions IFCBT-Dongle Bluetooth-device Catalog No. 551-060 lina72en1-01-(2407) From software version 1.4.2...
- Page 2 INFICON GmbH Bonner Strasse 498 50968 Cologne, Germany...
-
Page 3: Table Of Contents
4.3.2 Ambient conditions........................ 10 4.3.3 Electrical data .......................... 11 5 Install IFCBT Dongle ............................ 12 6 Operation .............................. 13 7 Cleaning ................................ 14 8 Certificates.............................. 15 8.1 CE Declaration of Conformity......................... 15 8.2 Radio certificates for the IFCBT Dongle.................... 16 IFCBT-Dongle Operating instructions-lina72en1-01-(2407) -
Page 4: About This Manual
1 | About this Manual INFICON 1 About this Manual This document applies to IFCBT-Dongle with the specified software version see title page. Product names may occur in the document, which are added for identification purposes only and belong to the respective owner of the rights. -
Page 5: Safety
• Operation at too high ambient temperature • Connection of dangerous electrical voltages to the device interfaces • Use via Bluetooth with unauthorised devices or non-original INFICON Bluetooth devices. • Use of the device in the vicinity of dangerous electrical voltages •... -
Page 6: Duties Of The Operator
• Always observe the complete operating instructions for all work. • If you have any questions about operation or maintenance that are not answered in this operating instructions, contact INFICON service. 2.3 Owner Requirements The following notes are for companies or any person who is responsible for the safety and effective use of the product by the user, employees or third parties. -
Page 7: Scope Of Delivery, Transport, Storage
Transport in unsuitable packaging material can damage the device. ► Keep the original packaging. ► Only transport the device in its original packaging. Storage Always store the device in compliance with the technical data, see Technical data. IFCBT-Dongle Operating instructions-lina72en1-01-(2407) 7 / 18... -
Page 8: Description
► Only use the device on devices approved by INFICON. ► Only use undamaged devices or adapter cables approved by INFICON. ► Do not use the device near electrical voltages ► Attach the device to the intended interface of the INFICON device using the fastening screws. CAUTION Risk of injury and damage to the appliance due to falling ►... -
Page 9: Design Of Device
Wireless data transmission makes it possible to extend the radius of action considerably. Data transmission achieves a range of up to 100 meters in the open air and up to 50 meters indoors. 4.2 Design of device Mounting screws SUB-D interface Mounting screws IFCBT-Dongle Operating instructions-lina72en1-01-(2407) 9 / 18... -
Page 10: Technical Data
ISO CLASS 6 environment (clean room or clean room class) Indoor oder Outdoor using Only in a dry environment and non- condensing moisture * Use of the IFCBT-Dongle only after consultation with INFICON GmbH. 10 / 18 IFCBT-Dongle Operating instructions-lina72en1-01-(2407) -
Page 11: Electrical Data
Electrical data 551-060 Name IFCBT-Dongle Current 60mA Voltage 5- 24 V DC ±10% Electronic interfaces RS232, Bluetooth Radio Technology Bluetooth Frequency Range 2400 - 2483.5 Mhz RF Output Power (dBm) 8 dBm (< 20 dBm) IFCBT-Dongle Operating instructions-lina72en1-01-(2407) 11 / 18... -
Page 12: Install Ifcbt Dongle
(max. 3 m long) can be used to optimize the radio range. This allows the IFCBT-Dongle to be positioned flexibly at a location where there are as few direct obstacles as possible between the IFCBT-Dongle and the UL device. -
Page 13: Operation
INFICON Operation | 6 6 Operation Green LED Orange LED When a Bluetooth connection is established, the green and orange LEDs light up continuously. If there is no connection, the LED flashes green. IFCBT-Dongle Operating instructions-lina72en1-01-(2407) 13 / 18... -
Page 14: Cleaning
INFICON 7 Cleaning CAUTION Injury due to improper handling of liquids Damage or explosion of the appliance due to cleaning with liquids ► Only clean the appliance with a dry or slightly damp cloth. 14 / 18 IFCBT-Dongle Operating instructions-lina72en1-01-(2407) -
Page 15: Certificates
INFICON Certificates | 8 8 Certificates 8.1 CE Declaration of Conformity IFCBT-Dongle Operating instructions-lina72en1-01-(2407) 15 / 18... -
Page 16: Radio Certificates For The Ifcbt Dongle
8 | Certificates INFICON 8.2 Radio certificates for the IFCBT Dongle 16 / 18 IFCBT-Dongle Operating instructions-lina72en1-01-(2407) - Page 17 INFICON Certificates | 8 Important notice Singapore: IFCBT-Dongle Operating instructions-lina72en1-01-(2407) 17 / 18...
