Weighmax W-2809-90BLK Instruction Manual

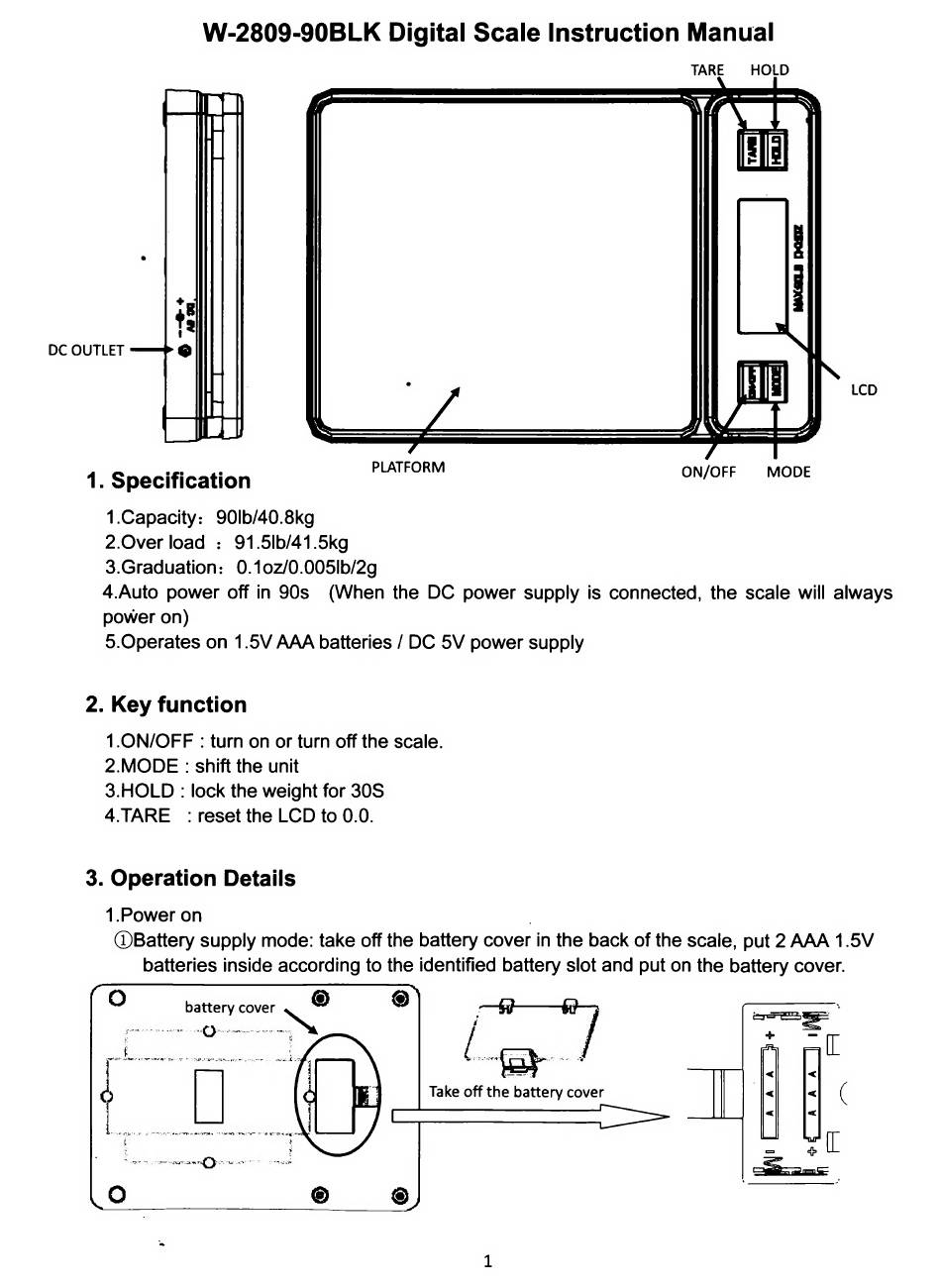

W-2809-90BLK Digital Scale Instruction Manual
TARE HOLD
DC OUTLET
LCD
oes P PLATFORM
1. Specification
ON/OFF
MODE
1.Capacity: 90Ib/40.8kg
2.Over load : 91.5lb/41.5kg
3.Graduation: 0.102/0.005Ib/2g
4.Auto power off in 90s (When the DC power supply is connected, the scale will always
power on)
5.Operates on 1.5V AAA batteries / DC 5V power supply
2. Key function
1.ON/OFF : turn on or turn off the scale.
2.MODE : shift the unit
3.HOLD : lock the weight for 30S
4.TARE : reset the LCD to 0.0.
3. Operation Details
1.Power on ;
(Battery supply mode: take off the battery cover in the back of the scale, put 2 AAA 1.5V
batteries inside according to the identified battery slot and put on the battery cover.
Take off the battery cover
