For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

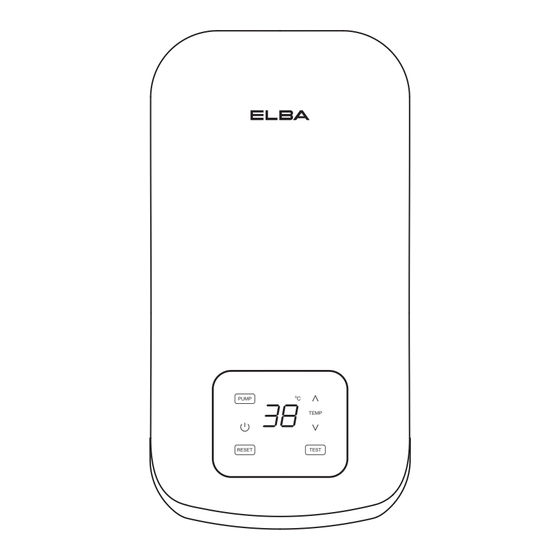

INSTANT WATER HEATER
EWH-Q4211(SB)
EWH-Q4215DC(SB)
EWHR-Q4218DC(SB)
Owner's Manual
Please read this manual carefully before operating your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the set and quote this
information to your dealer when you require service.
EWH-Q4211(MB)
EWH-Q4215DC(MB)
EWHR-Q4218DC(MB)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elba EWH-Q4211
Summary of Contents for Elba EWH-Q4211
- Page 1 INSTANT WATER HEATER EWH-Q4211(SB) EWH-Q4211(MB) EWH-Q4215DC(SB) EWH-Q4215DC(MB) EWHR-Q4218DC(SB) EWHR-Q4218DC(MB) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
- Page 2 Thank you for purchasing ELBA Instant Water Heater. Please read this manual thoroughly and understands the content before use. This appliance is not to be used for a portable water supply. The appliance is not be used by persons (including children) with reduced physical...
- Page 3 EXTERNAL PARTS IDENTIFICATION ABS Front Cover Water Temperature Display Inverter Pump Button Temperature (for Inverter Silent DC Pump Model only) Power Button Control up & down ELCB TEST & RESET INTERNAL PARTS IDENTIFICATION ABS Heater Base Terminal Block ELCB Control Board Cable Entry Earth / Live / Neutral Thermal Cut Out...
- Page 4 SHOWER SET ACCESSORIES IDENTIFICATION 1. MATTE BLACK ACCESSORIES...
- Page 5 SHOWER SET ACCESSORIES IDENTIFICATION 2. MATTE BLACK ACCESSORIES (RAIN SHOWER) Rain Hand Shower Shower...
- Page 6 The appliances should be connected to the water mains with NEW hose- sets. Old hose-sets should not be reused. Instantaneous water heater’s shall be equipped with a 2 pole control switch and is own residual current device. 10. Water heaters exceeding 3kW shall be permanently connected to a 20A/30A rated circuit breaker / fuse with an isolator switch and residual current device.
-
Page 7: Safety Precaution
All the plumbing works should be completed before proceeding to electrical wiring connection. INLET and OUTLET connection of the heater unit should not be reversed, with stop valve installed on INLET. (Diagram 1) stop valve It is recommended that the unit should be mounted above 1.5m or 5-feet above the floor to bottom of the incoming water... -
Page 8: Code Display
Electrical Connection Restore cover a) Insert electrical cable through the rubber grommet as shown. b) Connect the cable to the terminal block and fully tighten them as the following:- • Red or Brown..........Live (L) • Black or Blue..........Neutral (N) • Green or Green / Yellow......Earth c) Restore the cover and secure screw at the bottom. - Page 9 1. Switch ON the main power supply, the screen panel ( ) would light up. 2. Touch the POWER ( ) icon to ON water heater. 3. Touch the up & down ( ) icon to control water temperature. 4. Touch icon( PUMP )for boostering a stronger shower spray. 5.
- Page 10 Soft Brush Stop Valve Mesh Filter Shower Head Diagram 6 Diagram 7 CLEAN FILTER MESH REGULARLY 4.25kW 240V 50/60Hz Please refer Electrical loading Table 1 20kPa (0.2 bar / 2.9psi ) 4 bar ( 0.6kPa / 87psi ) 442(H) x 230(W) x 70(D) Non Pump 1.3kg DC Pump 1.5kg Notes: The specification, actual product’s design and accessories parts shown are correct at the time of...
- Page 11 Heating Element Earth Temperature Control ELCB 15mA DC PUMP Flow Sensor Pump Control Thermosensor Test / Reset Thermal Cut Out NON-PUMP : EWH-Q4211(SB), EWH-Q4211(MB) Relay Triac Live Neutral Heating Element Earth Temperature Control ELCB 15mA Flow Sensor Thermosensor Test / Reset...
