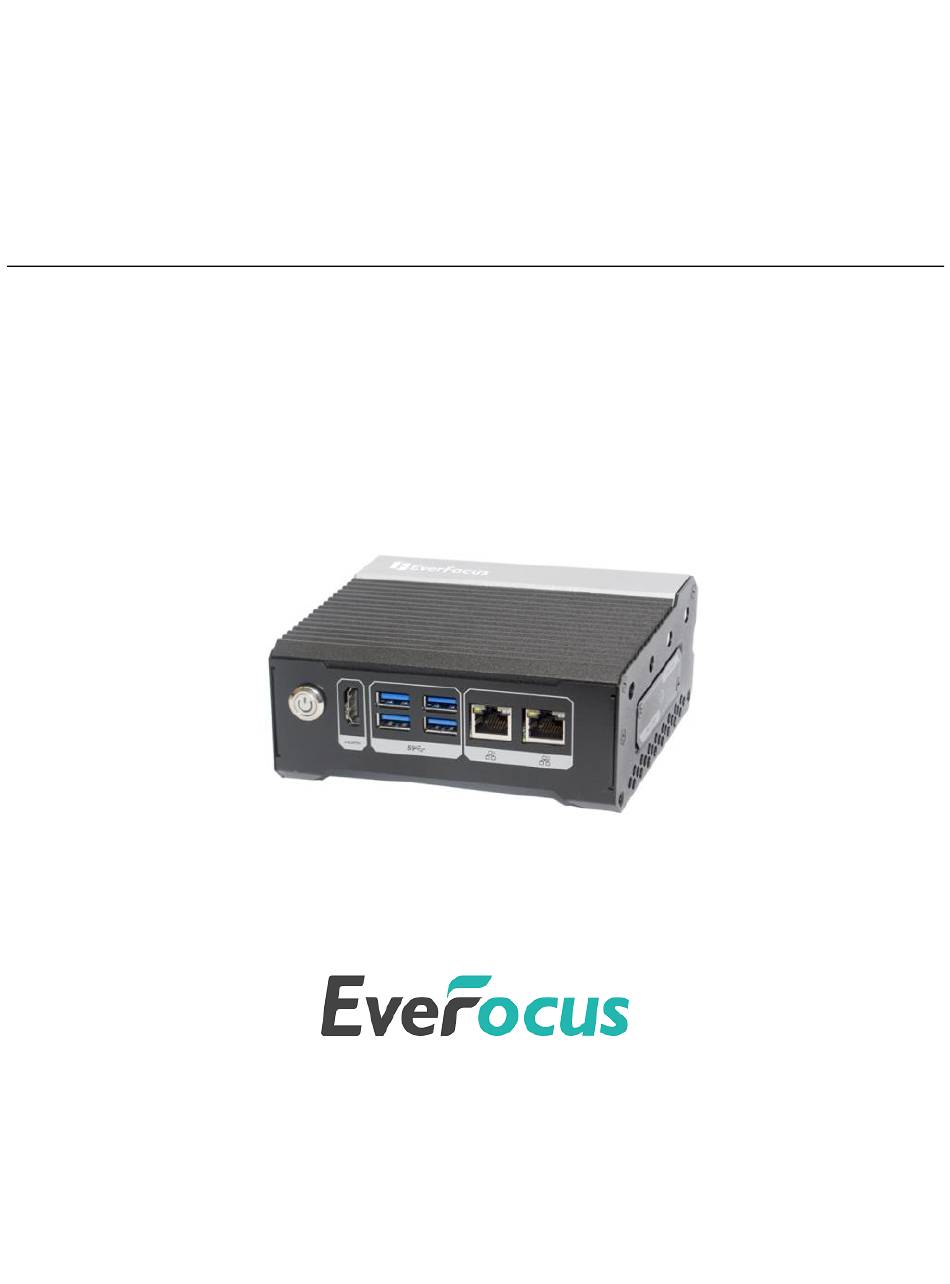

- Page 1 NVIDIA® Jetson Edge AI devices – EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO User’s Manual Copyright © EverFocus Electronics Corp. Release Date: January 2024...
- Page 2 All rights reserved. No part of the contents of this manual may be reproduced or transmitted in any form or by any means without written permission of the EverFocus Electronics Corporation. NVIDIA, the NVIDIA logo, and Jetson are trademarks of the NVIDIA Corporation ITE is a trademark of Integrated Technology Express, Inc.
- Page 3 ➢ All cautions and warnings on the device should be noted. ➢ All cables and adapters supplied by EverFocus are certified and in accordance with the material safety laws and regulations of the country of sale. Do not use any cables or adapters not supplied by EverFocus to prevent system malfunction or fires.
- Page 4 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Caution: There is a danger of explosion if the battery is incorrectly replaced.
-
Page 5: Table Of Contents
Table Of Content Introduction ..............................1 1.1 Features ................................1 1.2 Dimensions................................. 2 1.3 Packing List ................................ 3 1.4 Optional Accessories ............................3 1.5 Physical Description ............................4 Connectors Infrastructure ..........................5 2.1 Connector Location ............................5 2.2 Connector List ..............................6 2.3 Pin Assignment .............................. -
Page 6: Introduction
For NVIDIA® Jetson Orin™ NX / NANO 1. Introduction Everfocus announces the EAC-x11 series, EAC-x11 series are compact edge AI devices and powered by the NVIDIA® Jetson Orin™ NX / Nano SoC for general and commercial markets. The EAC-x11 series includes 2x GbE LAN, 4x USB 3.1, 1x HDMI, 1x RS485 and 1x isolation CAN-FD to connect high-speed and legacy devices. -
Page 7: Dimensions
EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO 1.2 Dimensions... -
Page 8: Packing List
Wall Mount x1 Note: ⚫ Equipment configurations and supplied accessories vary by country. Please consult your local EverFocus office or agents for more information. ⚫ Contact the shipper if any items appear to have been damaged in the shipping process. Please also keep the shipping carton for possible future use. -
Page 9: Physical Description
EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO 1.5 Physical Description Name Description BSP name PBTN Power button HDMI HDMI output USB 3.1 port 1 ~ 4 Ethernet port 1 ~ 2 Eth0, Eth1 DC input CAN bus & RS485 Isolation CAN-FD, RS485 Can0, ttyTHS0 Recovery Button... -
Page 10: Connectors Infrastructure
EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO 2. Connectors Infrastructure 2.1 Connector Location ⚫ Top Side ⚫ Bottom Side... -
Page 11: Connector List
EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO 2.2 Connector List Label Function DC INPUT NVIDIA SOM Module PMIC_BAT UART TX/RX USB3.0 CONNECTOR.DUAL PORT USB3.0 CONNECTOR.DUAL PORT M.2 Key-M (2280) (NVME) M.2 Key-E (2230) M.2 Key-B (3052) CN10 Nano SIM Card CN11 Micro USB 2.0 OTG CN12... -
Page 12: Pin Assignment
EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO 2.3 Pin Assignment ⚫ Function: DC input Pin Name Signal Type Signal level +9-36V ⚫ Function: NVIDIA SOM Module Defined: Standard specification ⚫ Function: PMIC BAT Pin Name Signal Type Signal level +3.0V ⚫... - Page 13 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ Function: USB3.0 CONNECTOR.DUAL PORT Pin Name Signal Type Signal level VBUS1 USB1_D- DIFF USB1_D+ DIFF USB1_SSRX− DIFF USB1_SSRX+ DIFF USB1_SSTX− DIFF USB1_SSTX+ DIFF VBUS2 USB2_D- DIFF USB2_D+ DIFF USB2_SSRX− DIFF USB2_SSRX+ DIFF USB2_SSTX−...
- Page 14 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ Function: USB3.0 CONNECTOR.DUAL PORT Pin Name Signal Type Signal level VBUS3 USB3_D- DIFF USB3_D+ DIFF USB3_SSRX− DIFF USB3_SSRX+ DIFF USB3_SSTX− DIFF USB3_SSTX+ DIFF VBUS4 USB4_D- DIFF USB4_D+ DIFF USB4_SSRX− DIFF USB4_SSRX+ DIFF USB4_SSTX−...
- Page 15 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ CN10 Function: Nano SIM Card Pin Name Signal Type Signal level UIM_PWR +3.3V UIM_RST UIM_CLK UIM_DATA DATA SIM_DET ⚫ CN11 Function: Micro USB 2.0 OTG Pin Name Signal Type Signal level USB0_5V USB0_DM DIFF...
- Page 16 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ CN13 Function: RJ45 LAN1 Pin Name Signal Type GBE_MDI0_P GBE_MDI0_N GBE_MDI1_P GBE_MDI1_N TCD0 TCD1 GBE_MDI2_P GBE_MDI2_N GBE_MDI3_P GBE_MDI3_N LED1(Y+) LED# LED1(Y-) LED# LED2(G+,Y-) LED# LED2(G-,Y+) LED#...
- Page 17 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ CN14 Function: HDMI Pin Name Signal Type HDMI_TX2_P_C_R DIFF HDMI_TX2_N_C_R DIFF HDMI_TX1_P_C_R DIFF HDMI_TX1_N_C_R DIFF HDMI_TX0_P_C_R DIFF HDMI_TX0_N_C_R DIFF HDMI_TXC_P_C_R DIFF HDMI_TXC_N_C_R DIFF HDMI_CEC_CN DIFF HDMI_DDC_SCL_C DIFF HDMI_DDC_SDA_C DIFF HDMI_5V HDMI_HPD_C ⚫...
- Page 18 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ CN16 Function: Board to Wire connector Pin Name Signal Type Signal level CSI0_D0_N DIFF DS5_USB2_D_P DIFF CSI0_D0_P DIFF DS5_USB2_D_N DIFF CSI0_D1_N DIFF DS5_USB3_RX_P DIFF CSI0_D1_P DIFF DS5_USB3_RX_N DIFF CSI0_CLK_N DIFF DS5_USB3_TX_P DIFF CSI0_CLK_P...
- Page 19 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ CN17 Function: CAN/RS485 w/isolation Pin Name Signal Type CAN1H CAN1L RS485_D+ RS485_D- ⚫ CN18 Function: I2C Pin Name Signal Type Signal level DCDC_5V 3V3_I2C0_RST# 3V3_I2C0_SCL 3V3_I2C0_SDA...
- Page 20 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ CN19 Function: RJ45 LAN2 Pin Name Signal Type GBE_MDI0_P GBE_MDI0_N GBE_MDI1_P GBE_MDI1_N TCD0 TCD1 GBE_MDI2_P GBE_MDI2_N GBE_MDI3_P GBE_MDI3_N LED1(Y+) LED# LED1(Y-) LED# LED2(G+,Y-) LED# LED2(G-,Y+) LED# ⚫ CN20 Function: FAN Pin Name Signal Type Signal level...
- Page 21 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ CN22 Function: 5G Card Interface Select Pin Name Signal Type Signal level VDD_1V8 PCIe +1.8V PCIE_DIS USB3.0 ⚫ CN23 Function: RS485 Terminal Resistor Select Pin Name Signal Type RS485_D+ 120ohm RS485_D- 120ohm ⚫...
- Page 22 EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO ⚫ Function: AT / ATX Mode Select Pin Name Signal Type Power_EN_Q# ATX(Default)
-
Page 23: Hardware Information
EAC-x11 Series For NVIDIA® Jetson Orin™ NX / NANO 3. Hardware Information 3.1 Specification System Jetson Orin Nano 8GB 1024 NVIDIA® CUDA® cores | 32 Tensor cores Jetson Orin Nano 4GB 512 NVIDIA® CUDA® cores | 16 Tensor cores 6-core (Orin Nano 8GB and Orin Nano 4GB) Arm® Cortex® A78AE (64-bit) CPU/GPU/Memory Jetson Orin NX 16GB 1024 NVIDIA®... - Page 24 FAX: +81 (3) 4363-2790 www.everfocus.com www.everfocus.co.jp sales@everfocus.com sales@everfocus.co.jp Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed and und hergestellt mit qualitativ manufactured with high quality materials hochwertigen Materialien und and components which can be recycled Komponenten, die recycelt und wieder and reused.
