ONgineer LiON Splitter Installation And Operating Instructions

Installation and Operating Instructions
LiON Splitter
LiON Splitter with 3-way charging plug for use at charging stations by ONgineer GmbH
Note
Read and retain the operating instructions carefully before use!
Failure to follow the safety instructions and guidelines can result in
electric shock, fire, and/or serious injury.
1. Manufacturer
ONgineer GmbH · Hindenburgring 9a · 32339 Espelkamp, Germany · www.ONgineer.de
2. Introduction
This installation manual is part of the delivery. Please read this manual carefully before installation and keep it for future reference.
This document contains important information on proper connection, operation, and maintenance.
If you have any questions, please contact the manufacturer. This installation manual is also available at www.ONgineer.de.
The manufacturer is not liable for any damages caused by:
• Incorrect installation or operation
• Modifications to the product
• Damage to the product
• Use outside the scope of this installation manual
Follow the safety instructions!
3. Safety Instructions
The operator is responsible for proper installation, operation, and maintenance.
If visible damage is present, the product must be taken out of service immediately to avoid hazards.
4. Proper Use and Installation
Warning: Operation is only permitted in conjunction with a LiON charging station from ONgineer GmbH. Only connect one battery
per LiON Splitter! The LiON Splitter provides three different charging plugs for 36V battery systems. When used with the ONgineer
charging station, a correctly connected battery is automatically detected and the charging process begins independently. Compa-
tibility may vary depending on the model.
The splitter should be protected from direct precipitation and prolonged sunlight exposure.
The LiON Splitter should not be used in the following conditions:
• In permanently wet environments
• Near easily flammable materials
• In explosive hazard areas
Preferably operate the LiON Splitter in a protected outdoor area!
The LiON Splitter's function and lifespan can be adversely affected by improper operating conditions.
5. Connecting and Disconnecting the Splitter
To connect the LiON Splitter, insert the splitter into the appropriate socket of the ONgineer charging station. When inserting, ensu-
re that the black locking pin engages in the designated notch of the socket. A clearly audible „click" confirms the correct locking of
the plug. The LiON Splitter is now secured against unauthorized removal and is ready for operation.
Removal is not possible without tools.

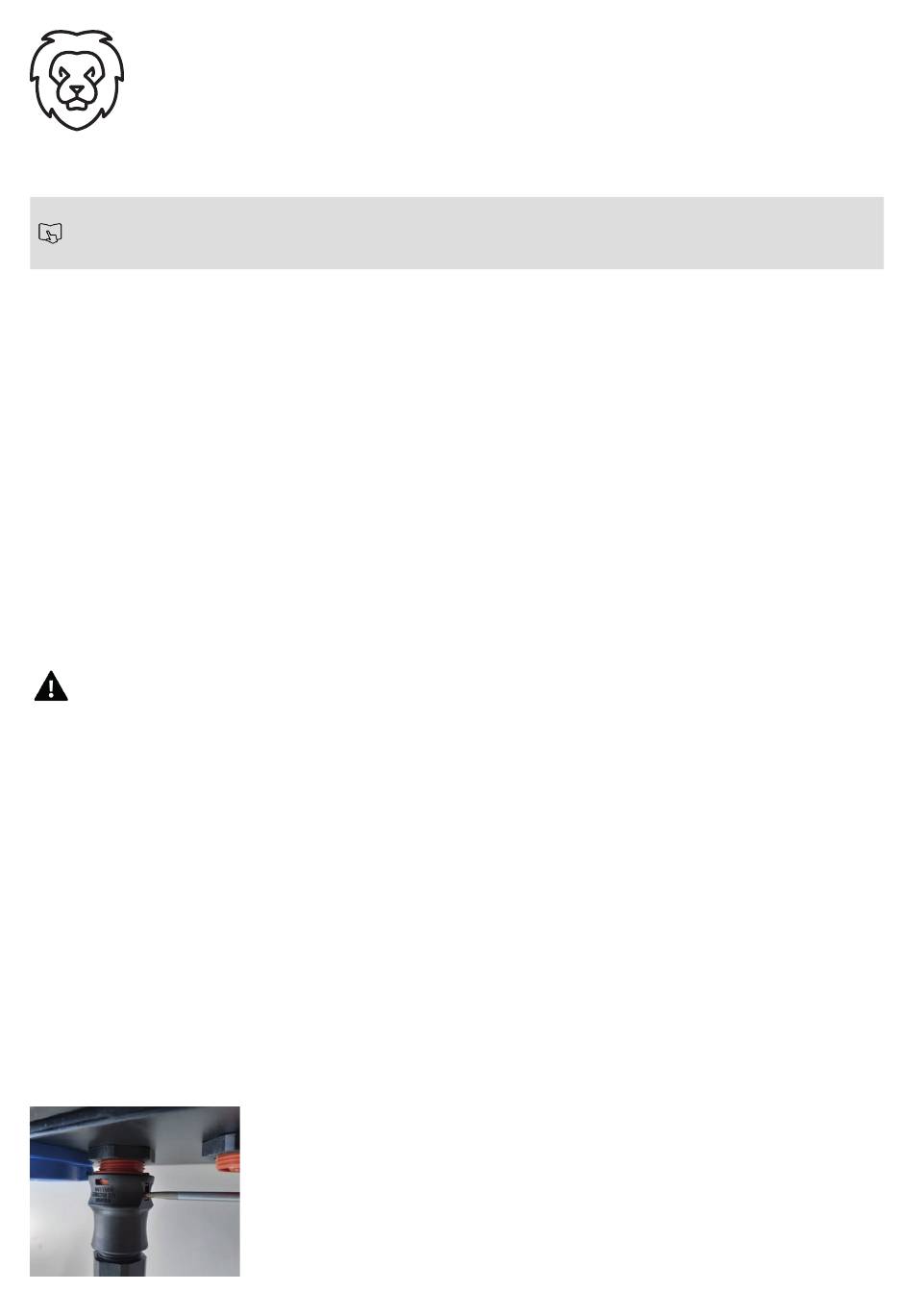

You will need a release tool, such as a screwdriver. Insert the screwdriver into the side ope-
ning of the plug. While applying gentle pull on the plug housing, press with the screwdriver
to release it. After correctly removing the plug, the black locking pin remains in the socket
housing of the ONgineer charging station, ensuring re-locking when the plug is reinserted.
If another plug with a locking pin is to be inserted, the existing pin must first be removed
using a screwdriver.
- 1 of 2 -
Ensure the operating instructions are passed on to the next
user in the event of a transfer!
• Near aggressive fumes
• In locations with constant vibration
• In locations with prolonged sunlight exposure
