Summary of Contents for Aevon Le Cafe Racer 2022

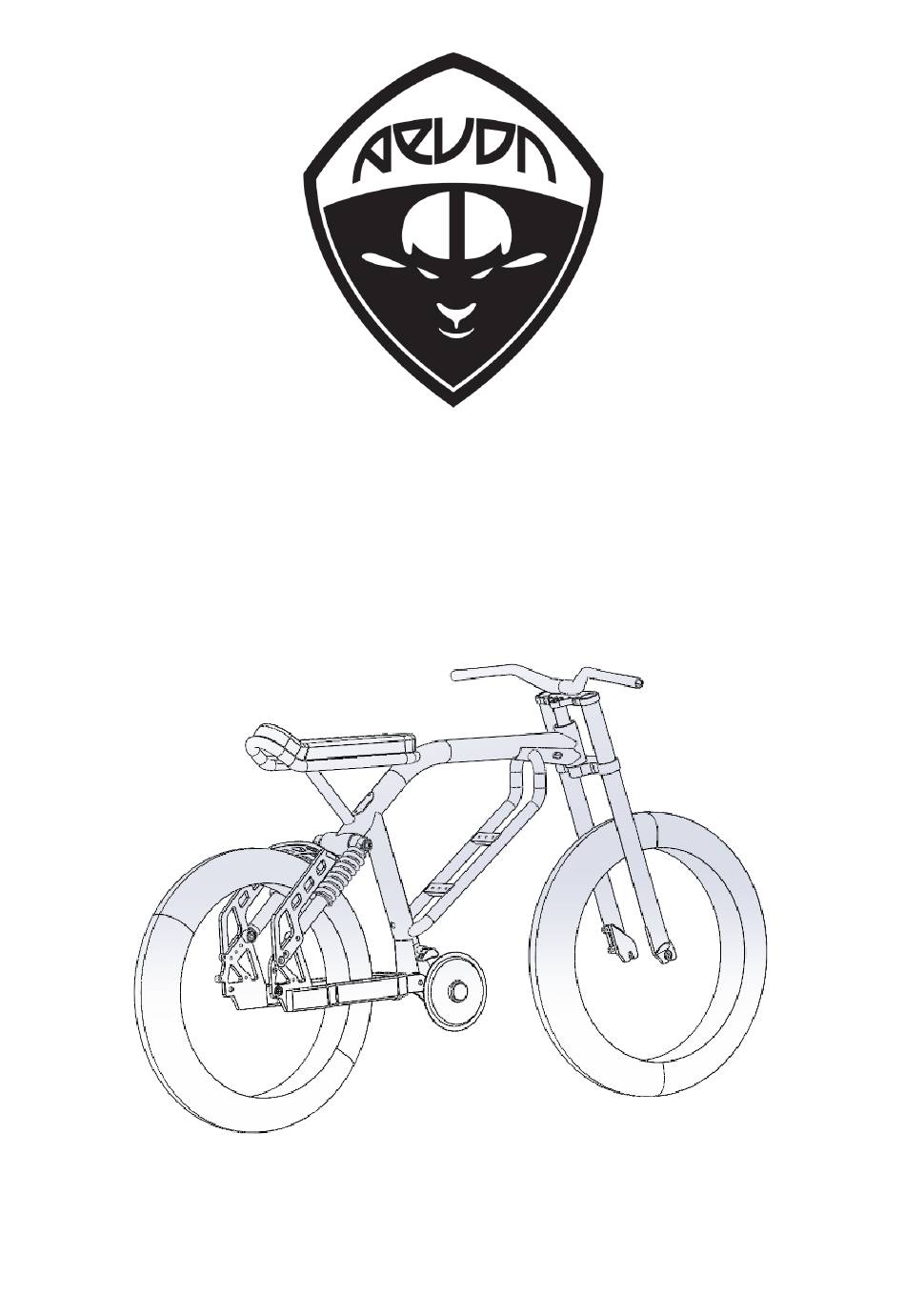

- Page 1 USER GUIDE Update 28/02/2022 - lot 22003 Page 1 Aevon-bikes...
-
Page 2: Table Of Contents
CONSISTENT WITH SAFETY REQUIREMENTS Thank you for choosing our bike Aevon Bikes, Le Cafe Racer ©. It is important to keep this guide and refer to it for any use of your bike. GENERAL WARNING YOUR BIKE AND ITS LIMITS... -
Page 3: General Warning
BIKE LEXICON Figure 1 Frame Bell Crank Front light Fork Saddle Kickstand Front reflector Headset Rear light Pedal Rear reflector Stem Pinions Tire Handlebar Derailleur Grip Chain Spoke Shifter Chainwheel Brake calliper Brake lever Bottom bracket Disk brake Page 3 Aevon-bikes... -
Page 4: Your Bike And Its Limits
The bike can carry 100kg max on the bike: ● 100kg for the rider In case of non compliance with the general terms of use, Aevon Bikes company can not be held responsible for the damages caused and the warranty of the bike can no longer be applied. -
Page 5: Adjustment Of Your Position On The Bike
ADJUSTMENT OF YOUR POSITION ON THE BIKE ADJUSTMENT OF THE HANDLEBAR TILT Figure 2 The adjustment can be done with a 6mm Allen key. Page 5 Aevon-bikes... -
Page 6: Advice To Cycle In Total Safety
● Bike riders are allowed to cycle on walking and cycling paths, meeting areas or 30km/h areas, except for contrary measures that could be taken by local authorities. ● Bikes must be parked in the spots planned or on the road. Page 6 Aevon-bikes... - Page 7 ● Be careful when there are children close to your bike, prevent them from getting their fingers stuck. ● Do not use the bike with 2 or 3 adults onboard. ● Do not use the bike when under the influence of drugs or alcohol. WARNING! Never ride a bike with 2 people onboard. Page 7 Aevon-bikes...
-
Page 8: Safety Check Before Use
Check the tires’ pressure, the smooth operation of the braking system, the right tightening of the saddle, the seat post, the handlebar, the stem, the wheels and the pedals. Also check the proper operation of the lights and the presence of the reflectors. Page 8 Aevon-bikes... -
Page 9: Bike Maintenance
We recommend you entrust your bike with a certified bike seller before using it and once a year for its maintenance so you can enjoy your bike Aevon Bikes as long as possible. City bikes need regular maintenance. -
Page 10: Periodical Maintenance And Service
(about the presence of cracks or other damages), it is imperative to go as soon as possible to a professional or to get in touch with Aevon Bikes company to have it controlled and avoid any injury or irreversible damages. -
Page 11: Tightening Torque
An irregular noise from the wheels or the brakes touching the rim mean the wheel must be looked after. The wheels must be checked regularly to control the tightening of the spokes and the right alignment. Page 11 Aevon-bikes... - Page 12 If you find play or if the wheel is hard to turn, the hub’s bearing must be adjusted. Get in touch with a professional to adjust the hubs’ bearings. If the bikes’ wheels are not properly aligned, bring it immediately to a professional or get in touch with Aevon Bike’s after-sales service by email at contact@aevon-bikes.com.
- Page 13 Keep the lock nut screwed and keep the bearings clean and well adjusted. Regularly check the crank’s nut and bolt to make sure the cranks stay screwed. Immediately replace bent cranks! Do not try to straighten them. Page 13 Aevon-bikes...
-
Page 14: Setting And Using The Gears
● Turn the upper setting screw (C) so the guidance tensioner (B) is at the same level as the external line of the smallest pinion (A). (A) External line of the smallest pinion (B) Guidance tensioner (C) Upper setting screw Page 14 Aevon-bikes... - Page 15 Place it along the bottom bracket to avoid any further movement to the inside of the rear derailleur. If in doubt, get in touch with a professional or Aevon Bike’s after-sales service by email at contact@aevon-bikes.com.
-
Page 16: General Recommendation And Brakes Setting
If the bike’s brakes are not properly adjusted, bring it immediately to a bike mechanic or get in touch with Aevon Bikes’ after-sales service by email at contact@aevon-bikes.com. The right brake lever controls the rear brake. -
Page 17: Other Components And Supplies
The bikes being fitted with lights (batteries or dynamos), it is advised to check their smooth operation (functional bulbs and batteries) and replace them if necessary. ASSEMBLY OF THE NON ASSEMBLED COMPONENTS Refer to the assembly guide enclosed and delivered with each of our bikes. Page 17 Aevon-bikes... -
Page 18: Warranty
This warranty does not obstruct the implementation of the legal warranty for hidden defects. Aevon Bikes’ only obligation as part of the warranty is to repair or replace the product(s), at Aevon Bike’s discretion. WHAT IS NOT COVERED BY THE WARRANTY Damages involving the responsibility of a third party or caused by intentional fault.
