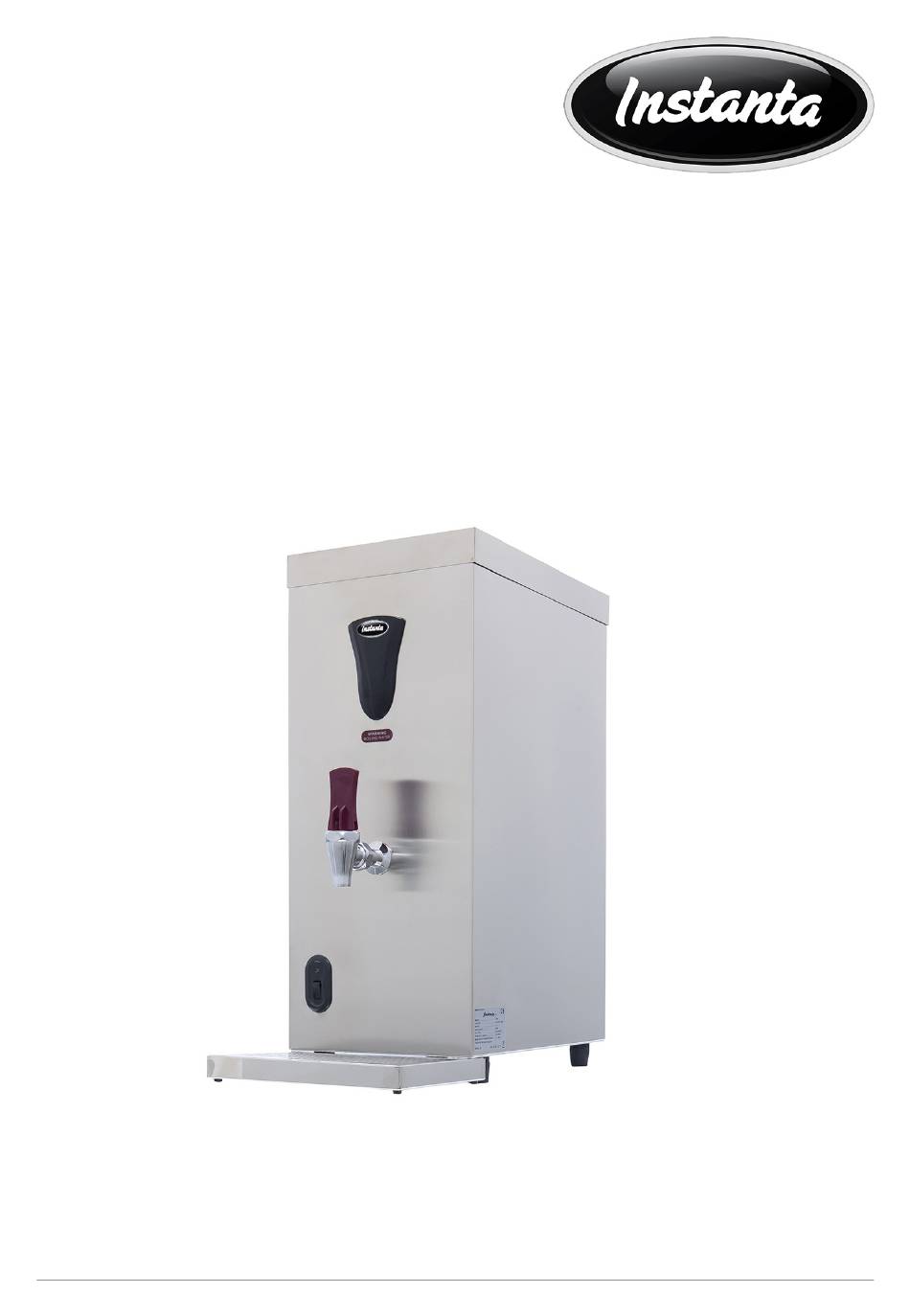

Installation and user instructions
Instanta
SureFlow
Counter-top series
CTS3 (1000-M), CTS5 (1000-C), CTS10 (1500POU) models
Instanta verified original instructions: EN version.
Installation instructions & user guide
1
T210050 CTS3 manual v1.02 Dec 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SureFlow 1000-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Instanta SureFlow 1000-M

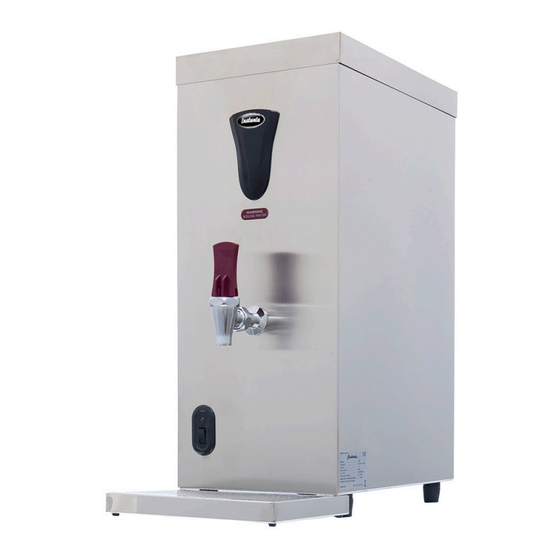

  • Page 1 Installation and user instructions Instanta SureFlow Counter-top series CTS3 (1000-M), CTS5 (1000-C), CTS10 (1500POU) models Instanta verified original instructions: EN version. Installation instructions & user guide T210050 CTS3 manual v1.02 Dec 2023...
  • Page 2: Table Of Contents

    Table of contents SECTION 1 Using these instructions ..............3 Before you start ....................3 Explanation of symbols ..................3 Introduction ...................... 3 SECTION 2 IMPORTANT SAFETY INSTRUCTIONS ..........4 SECTION 3 WARNINGS & REGULATORY INFORMATION ........6 SECTION 4 Technical data .................9 4.1 Explanation of product codes for complete range ........9 4.2 Technical data table ...................
  • Page 3: Section 1 Using These Instructions

    • Your new appliance is designed to give you years of trouble-free service provided that the instructions contained in this manual are followed. • All new Instanta products are energy efficient, simple to operate and easy to service. • These instructions are available on our website at www.instanta.com.
  • Page 4: Section 2 Important Safety Instructions

    SECTION 2 IMPORTANT SAFETY INSTRUCTIONS Compliance In the UK the appliance must be installed in accordance with water supply byelaws, current IEEE regulations and local authority byelaws. Safety This appliance can be used by children from 8 years or persons (including children from 8 years) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance by a person...
  • Page 5 SECTION 2 IMPORTANT SAFETY INSTRUCTIONS Installation The appliance must be installed on a horizontal surface sufficiently robust to support its weight. Locate in an area of adequate space to use the boiler safely (e.g. free from tripping hazards ans risk of congestion). Frost protection This appliance is not designed for outdoor use.
  • Page 6: Section 3 Warnings & Regulatory Information

    SECTION 3 WARNINGS & REGULATORY INFORMATION • FOR CONTINUED SAFETY OF THIS APPLIANCE IT MUST BE INSTALLED, OPERATED AND MAINTAINED IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS. • The appliance must be earthed, earthing is provided via the power cable. The resistance of the earth connection to each exposed metal part must be less than 1Ω.
  • Page 7 When positioning the appliance, ensure the power supply cord is not trapped or damaged. If it is damaged it must be replaced by an Instanta service provider or a qualified electrician in order to avoid a hazard.
  • Page 8 • If the appliance is being fed by water treated by reverse osmosis, Instanta strongly recommend that the water is tested regularly. • If micro-bore pipe is used instead of the inlet hose supplied, the size must be minimum OD 3/8”(10mm).
  • Page 9: Section 4 Technical Data

    SECTION 4 Technical data 4.1 Explanation of product codes for complete range Complete Counter Top range appliance order code Product Product Draw off (l) Features kW rating range group High CounterTop SureFlow up to 3 volume SureFlow Boiling Plus chilled Filtered High tap Twin tap...
  • Page 10: Technical Data Table

    SECTION 4 Technical data 4.2 Technical data table CTS3 CTS5 CTS10 Model Unit (1000-M) (1000-C) (1500POU) Width Depth inc. drip tray Height Tap clearance Supply voltage 230V 50Hz AC Power rating 2.25 Power supply required single phase Fill type Automatic Capacity Rapid draw off Weight (empty)
  • Page 11: Section 5 Parts Supplied

    SECTION 5 Parts supplied 5.1 Supplied parts checklist • Before starting installation check that you have the following parts. Description Appliance & Tap kit Drip tray, overflow spigot, nut & washer Installation and user instructions Filter kit(optional) AQ35 or AQ50 filter Filter head 3/4”-3/8”...
  • Page 12: Section 6 Installing The Appliance

    SECTION 6 Installing the appliance 6.1 Positioning and ventilation Use of tools can be hazardous, assess the risks before you start. Use instructions supplied with individual kit parts. • Install the appliance within reach of a mains wholesome (cat 1) water supply, and a 230V 50Hz mains electricity supply.
  • Page 13 SECTION 6 Installing the appliance 6.1.2 Installation layout and features (standard arrangement ) Mains water supply Waste to drain Isolation valve Mains electricity supply Dispensing tap 3/4" BSP - 15mm adapter System status indicator 3/4" BSP mains water hose Drip tray Drip tray flexible drain hose Power ON/ OFF switch Installation instructions &...
  • Page 14 SECTION 6 Installing the appliance 6.1.3 Installation layout and features (inc optional Water block, filter and install rail) Dispensing tap Mains water supply System status indicator Isolation valve & install rail Water block (optional) Drip tray 3/4" BSP - 3/8" adapter Power ON / OFF switch Drip tray flexible drain hose Water filter...
  • Page 15: Connect The Drip Tray Overflow To Waste

    SECTION 6 Installing the appliance 6.2 Connect the drip tray overflow to waste An air gap must be provided within 300mm of the overflow connection point. Failure to provide an air gap within this distance could cause an air lock which could stop the water discharging in the event of an overflow. IMPORTANT Overflow pipework must be no less than 15mm diameter.
  • Page 16: Connect The Water Supply

    To avoid damage, do not use any solder connections whilst pipes are connected to the appliance. Instanta cannot be held responsible for any appliance malfunction if the water pressure is not within the range stated. If in doubt, consult your water supply company.
  • Page 17 (Using the optional filter, install rail & Water block) Use instructions supplied with the individual system components. • Water purification filters are available from Instanta to ensure fresh tasting water. In hard water areas, lime-scale can cause problems. Fitting a lime-scale reducer will help minimise lime-scale but will not eliminate it completely.
  • Page 18 SECTION 6 Installing the appliance 6.4.3 Water block (optional) This device must be installed vertically with Fig. 1 the direction of flow downwards (inlet at the top, outlet at the bottom. See Fig. 1. • The Water block should be installed in a convenient location on the water supply line to the appliance.
  • Page 19: Earth Continuity Test

    SECTION 6 Installing the appliance 6.5 Earth continuity test All accessible metal parts must be earthed. One probe connected • After installation, the earth to the mains cable One probe continuity must be checked. earth wire / pin connected Use an insulation tester, to chassis appliance tester , DMM or continuity tester with an...
  • Page 20: Connect The Electricity Supply

    SECTION 6 Installing the appliance 6.6 Connect the electricity supply Before you start, read : SECTION 2 IMPORTANT SAFETY INSTRUCTIONS. SECTION 3 WARNINGS & REGULATORY INFORMATION. Do not switch on the mains electricity supply until installation is complete, The system earth must be verified once the mains electricity supply connection has been established.
  • Page 21: Section 7 Commissioning And Operation

    SECTION 7 Commissioning and operation 7.1 Switch on and commissioning Use with caution, the appliance dispenses near-boiling water. • Turn on the mains water supply. • Switch on the mains power supply. • Switch on the appliance with the ON/OFF switch.
  • Page 22: Operation

    SECTION 7 Commissioning and operation 7.2 Operation System Use with caution, the appliance Status indicator dispenses near-boiling water. • Switch on the appliance and wait until the system status indicator turns green. • The water will be at the correct temperature. •...
  • Page 23: Section 8 Maintenance

    SECTION 8 Maintenance 8.1 Replace and flush the filter (filter installation is optional) 8.1.1 How to replace and flush the filter Insert Remove AQ35 AQ35 AQ50 AQ50 • Turn off the mains water supply isolation valve. • Turn off the power supply to the appliance. •...
  • Page 24: Cleaning

    Boil dry safety switch tripped. HydroCare plans. Rapid flashing red The probes are scaled up and De-scale required, see the instructions in the ‘Instanta service manual’ to de- water has risen to a dangerous scale. Or replace solenoid valve. level. Call us on...
  • Page 25: Safety Controls

    SECTION 9 Troubleshooting 9.2 Safety controls Isolate appliance from power supply before removing the access cover or attempting any reset. In order to avoid a hazard due to inadvertent resetting of the thermal cut- out, this appliance must not be supplied through an external switching device such as a timer, or connected to a mains supply that is regularly switched on and off.
  • Page 26: Taps

    SECTION 9 Troubleshooting 9.3 Taps • Taps are subject to wear & tear but in the event of a tap failing within 12 months of installation, we will be pleased to replace the tap assembly by post. Fitting is very simple and requires no tools. An engineer call out is not necessary.
  • Page 27: Environmental Information

    Environmental information Waste electrical and electronic equipment • The symbol above means that according to United Kingdom and European Union member countries laws and regulations, your product and/ or its battery shall be disposed of separately from household waste. • When this product reaches its end of life, take it to a collection point designated by local authorities.
  • Page 28 Zip Water UK Instanta Trafalgar House, Rash’s Green, Dereham, Norfolk, NR19 1JG 0345 6 005 005 www.zipwater co.uk www.instanta.com Installation instructions & user guide T210050 CTS3 manual v1.02 Dec 2023...
