Summary of Contents for RCO ECO BT-5 Medium

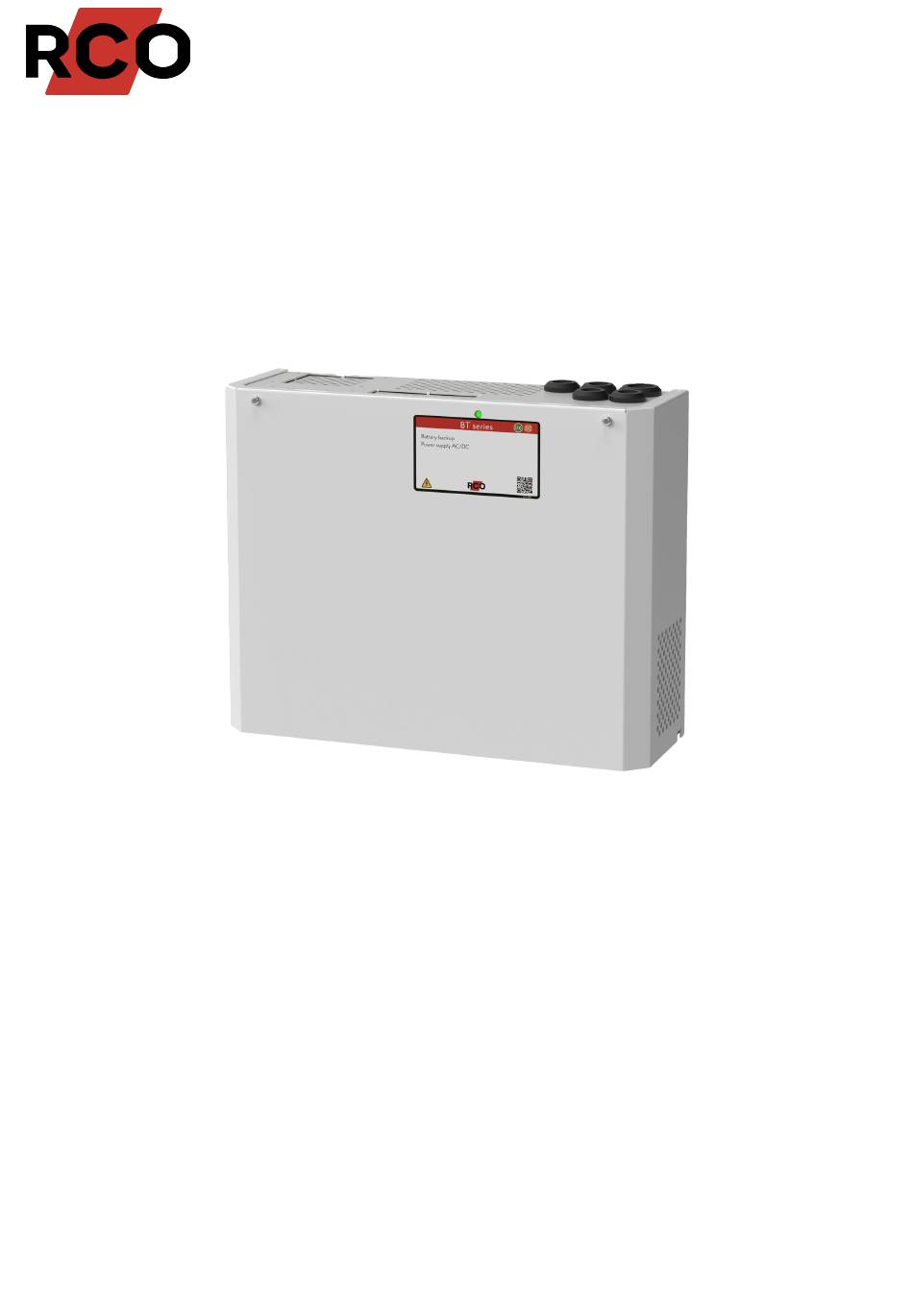

Page 1 BT-5 Medium Battery backup...
Page 2 350-132 Publication date 2024-01-25...
Page 3: Table Of Contents
BT-5 Medium Table of Contents About ................................. 5 Name, article number and e-number ....................5 Revisions and the edition of this document ..................5 Component overviews ..........................6 Component overview ........................6 Enclosures ..............................6 Mounting ............................6 Wall mounting ........................... 6 Batteries - placement and connection .......................
Page 4 BT-5 Medium Batteries - recommended, not included ..................17 Batteries are not included they are sold separately ..............17 7.2 Ah, 12 V AGM battery ..................... 17 14 Ah, 12 V AGM battery ...................... 17 Reserve operating times for different alarm classes - overview ..........18 Address and contact details ........................
Page 5: About
52 574 60 Revisions and the edition of this document The current and most recently published edition of this document is available at www.rco.se. The validity of this document can not be guaranteed, as new editions are published without prior notice.
Page 6: Component Overviews
BT-5 Medium Component overviews Component overview Table 1. Component overview Number Explanation Cabinet in powder-coated sheet metal. The power supply, location and type vary with configuration. Motherboard. Cable entries. Space for batteries. Enclosures Mounting Use the appropriate screw for mounting on the wall, Screw for mounting on the wall is not included. Wall mounting Use four screws suitable for the wall to set up the cabinet.
Page 7: Batteries - Placement And Connection
BT-5 Medium Batteries - placement and connection Connection of batteries, 24V Mains voltage should be disconnected when connecting batteries Slide batteries from the side with the battery terminals toward the center. Only use new batteries during installation and battery replacement. Connect fuses on batteries.
Page 8: Ceo3 V5 Up
BT-5 Medium CEO3 v5 Up Motherboard description Connect in this order To minimize the risk of errors that may occur in connection with a short circuit, connections to the mother- board must be made in this order. Table 2. Connect in this order Explanation Connect alarm.
Page 9: Connect Mains
BT-5 Medium Table 4. Load connections Circuit board number Explanation P2: 1 Connection for load 1 + P2: 2 Connection for load 1 - P2: 3 Connection for load 2 +. P2: 4 Connection for load 2 -. MAX CURRENT The maximum current must not be exceeded.
Page 10: Control Alarm Limit
BT-5 Medium Control alarm limit Alarm for low battery voltage in battery operation can be controlled. By jumpering JU2, the limit for when the unit should give an alarm can be lowered. Alarms are given when the battery voltage in battery drops below the limit. Low battery voltage alarm limit JU2 with jumper JU2 without jumper...
Page 11: Alarm Displayed On Cabinet Door
BT-5 Medium Alarm displayed on cabinet door In normal mode, the indicator LED shows a solid green light. The display LED shows Explanation Solid green light Normal operation. Solid red light Undervoltage, LED is green in the event of a power failure until the battery voltage drops below the alarm limit. When operating system: If the indicator LED is off, deep discharge protection has come into force.
Page 12: Eco Product Sheet
BT-5 Medium ECO product sheet Product sheet / technical data BT-5 MEDIUM The unit must be wall-mounted. Figure 3. BT-5 MEDIUM Technical specifications These technical specifications are subject to change without notice. Name, article number and e-number Name Article number E-number (SV) BT-5 Medium 28160113...
Page 13: Areas Of Use
BT-5 Medium • For AGM batteries. • Can be tested with only batteries connected. • Has controlled charging for better operating economy. Areas of use Most used in: Alarm The device alarms for: Undervoltage/low battery voltage. Fixed installation The product is intended for fixed installation. The battery backup must be installed by a qualified installer. Test before installation of 230 V "Cold start"...
Page 14: Circuit Boards - Technical Data
BT-5 Medium Circuit boards - Technical data Technical data: CEO 3 Table 7. CEO3-ECO Info Explanation Article name CEO3-ECO Product description CEO 3 is the next generation circuit board for simpler battery backups. Advanced functions that were not previously possible in simpler battery backups are now available as standard.
Page 15: Power Supply
BT-5 Medium Power supply Power supply - Technical Data LRS-150-24 BT-5 Medium Info Explanation Output voltage 27.3 V Output current: 0 A - 6.5 A Output voltage, ripple 200 mVp-p Overvoltage 28.8 V - 33.6 V Voltage recharge, ripple / current limitation Less than 0.6 Vp-p Efficiency Current limitation...
Page 16: Link To The Latest Information
BT-5 Medium Link to the latest information Products and software are subject to updates, you will always find the latest information on our website. Warranty, support, country of manufacture and country of origin Warranty The product has a two-year warranty, from the date of purchase (unless otherwise agreed). Support during the warranty period can be reached at support@milleteknik.se or telephone, +46 31-34 00 230.
Page 17: Contact Us
BT-5 Medium Contact us Milleteknik AB Ögärdesvägen 8 B S-433 30 Partille Sweden +46 31-34 00 230 www.milleteknik.se Country of manufacture Country of manufacture / country of origin is Sweden. For more information, contact your seller. Designed and produced by: Milleteknik AB Designed and produced by Milleteknik AB Batteries - recommended, not included Batteries are not included they are sold separately...
Page 18 28 Ah 45 Ah Loading Backup operating time (approx.), Minutes 0.5 A 1650 2350 1460 10 A 12 A 14 A 16 A 18 A 20 A Subject to typos. Address and contact details RCO Security AB Med reservation för ändringar.
Page 19 BT-5 Medium Box 3130 S-169 03 Solna +46 8-546 560 00 www.rco.se Med reservation för ändringar.
